Monitor Features:
1. High-definition screen: full-color high-definition AHD screen;
2. Various functions: support car monitoring and video playback, and support multiple languages;
3. Intelligent CPU: support 12-36V wide voltage;
4. Wide range of uses: suitable for various largeveAhicles, forklifts, harvesters, excavators, etc.
5. DVR video record function Max support 256Gb SD card input
Monitor Specification:

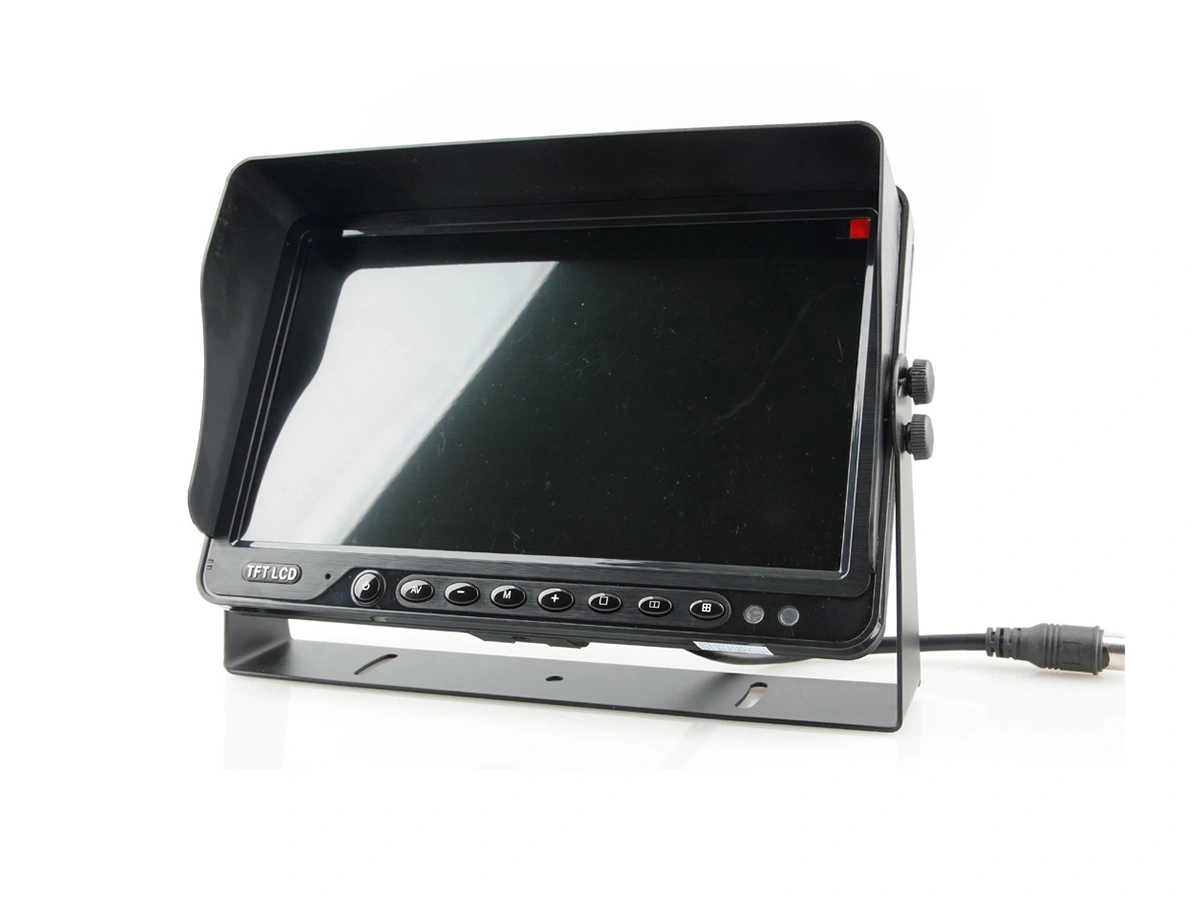

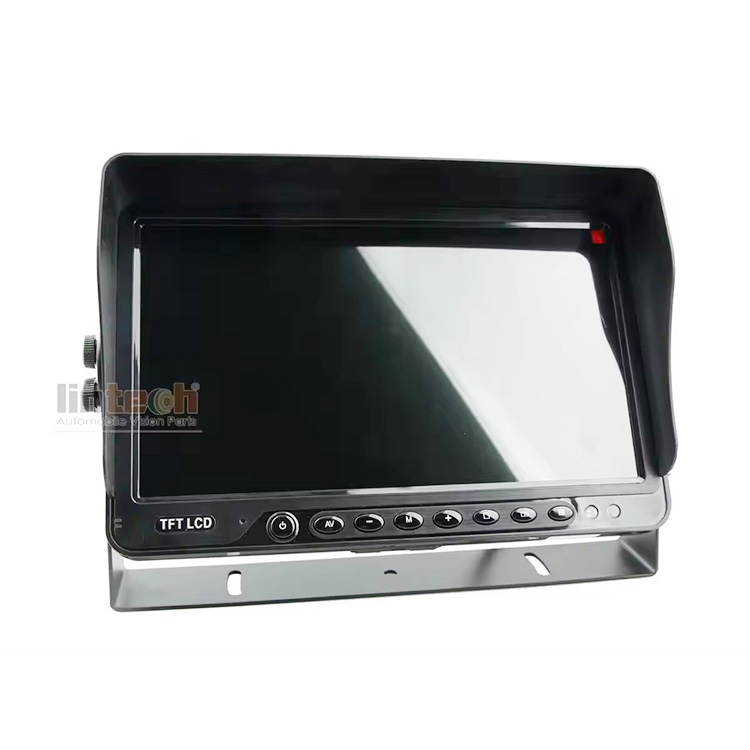

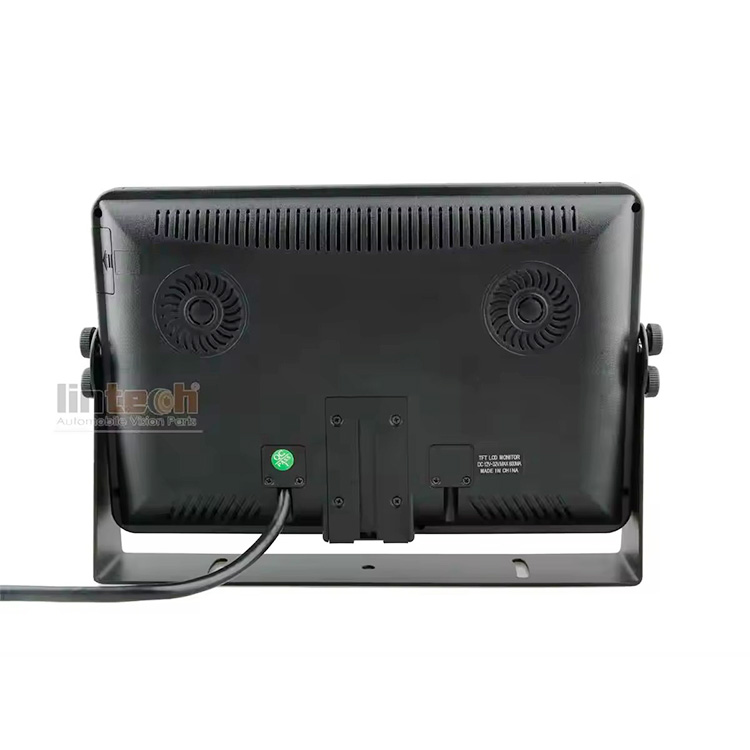

Product Name | 10.1″ AHD DVR Monitor |
Sun visor | Detachable |
Resolution | 1024*600px [IPS] |
Backlight brightness | LED, 400cd/m2 |
Viewing angle range | Up and down—180°, left and right—180° |
Connector | 4PIN aviation head/RCA head [optional] |
Video input format | CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC |
Signal type | Support 720P/960P/1080P [compatible: CVBS/AHD/TVI] |
Sound | Built-in speakers [optional], one audio input [V2] |
4 way trigger sequence | V2>V1>V3>V4 |
Reversing setting | Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set |
System | Compatible with PAL&NTSC system, automatic conversion |
Adapt to the car | 12V-36V power supply, power output DC12V |
Protection function | high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A |
Working temperature | `-20℃ to 70℃ |
Storage temperature | `-30℃ to 80℃ |
Appearance color | Black rubber paint, button blue light |
Bracket | Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional] |

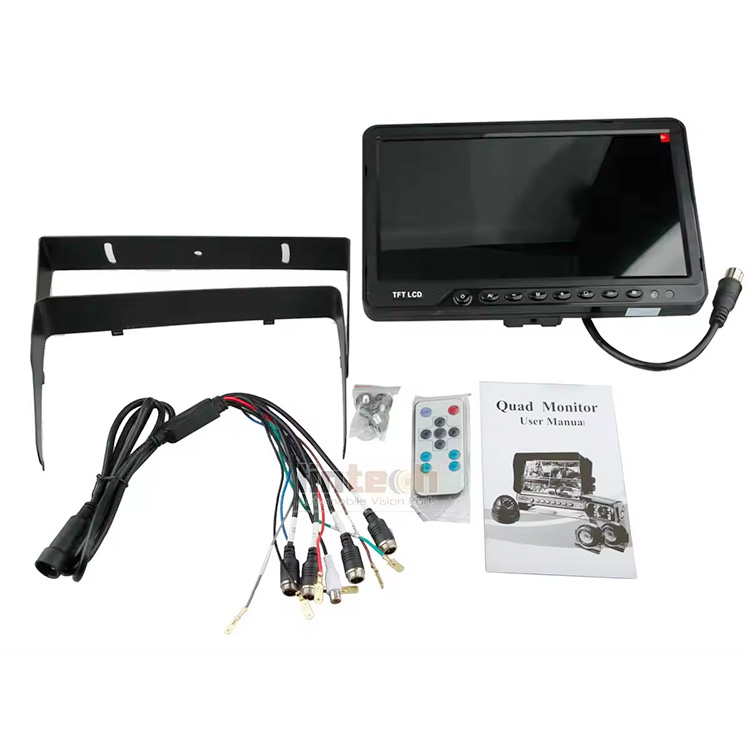

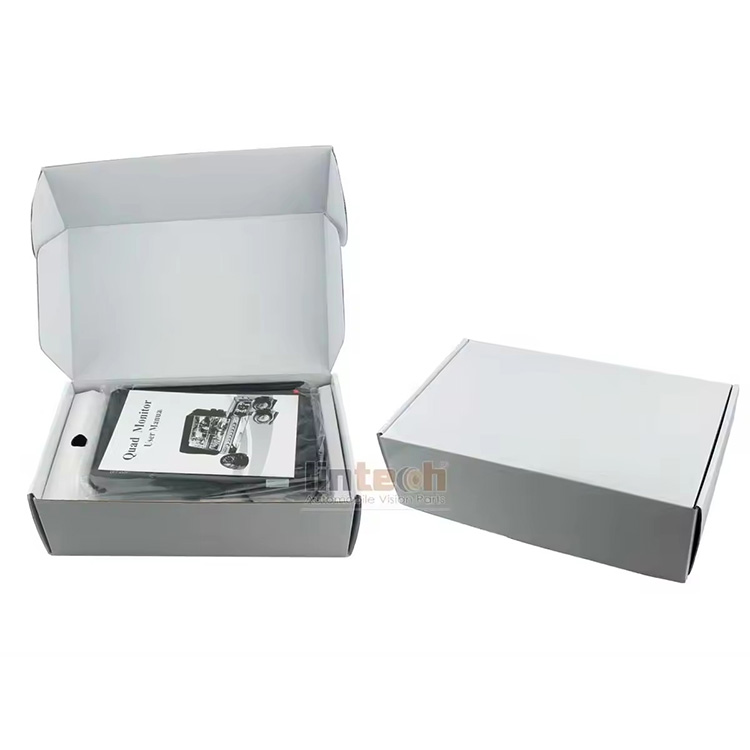

Packing List:
- 10.1 inches DVR monitor * 1pcs
- Remote Control * 1pcs
- Power Cable * 1pcs
- SunShade * 1pcs
- Screw * 4pcs
- U-bracket * 1pcs
