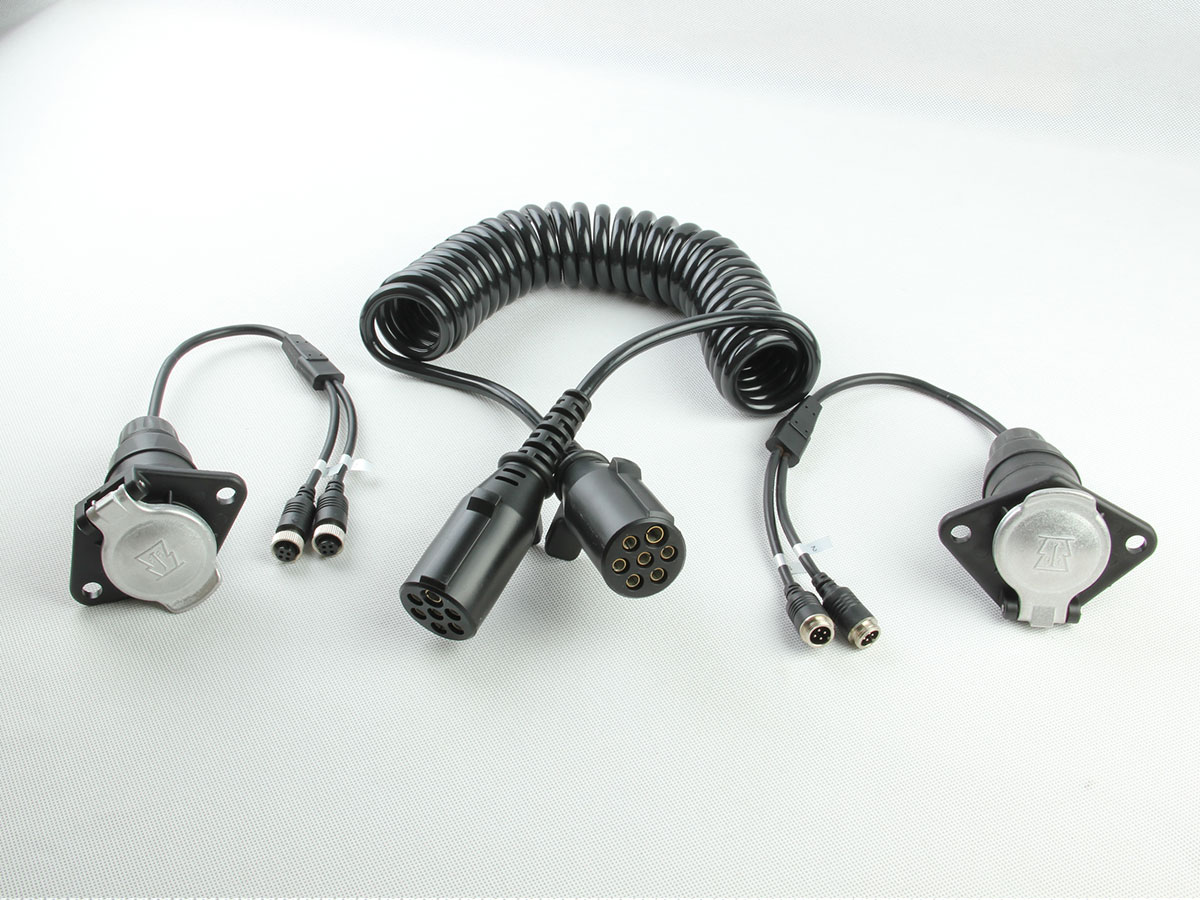

2 Channels Trailer Cable For Dual Camera Connection
-Suitable for truck trailer semi trailer or caravan applications
Model NO.:LA-TPE7-2
Features:
Waterproof Function
Very tight connection durable and reliable
Connecting and disconnecting when hitching your caravan is easy with this heavy duty permanent fitting connector
Cast alloy connector can be mounted adjacent on same bracket
| –7Pins/12V and 24V spiral cable / suzie cable |
| –TPE cable 6 x 1.0 + 1 x 1.5 square millimeter |
| –With hand hook injection plastic plugs |
| –Coil diameter: 50mm |
| –Work length: 3m |
| –Maximum extension length: 4.5m |
| –Standard Extension cable: 0.3 meter x2pcs female connector + 0.3 meter x2pcs male connector (Customized was available) |
Trailer Cable Installation:
Trailer Cable Install Layout:

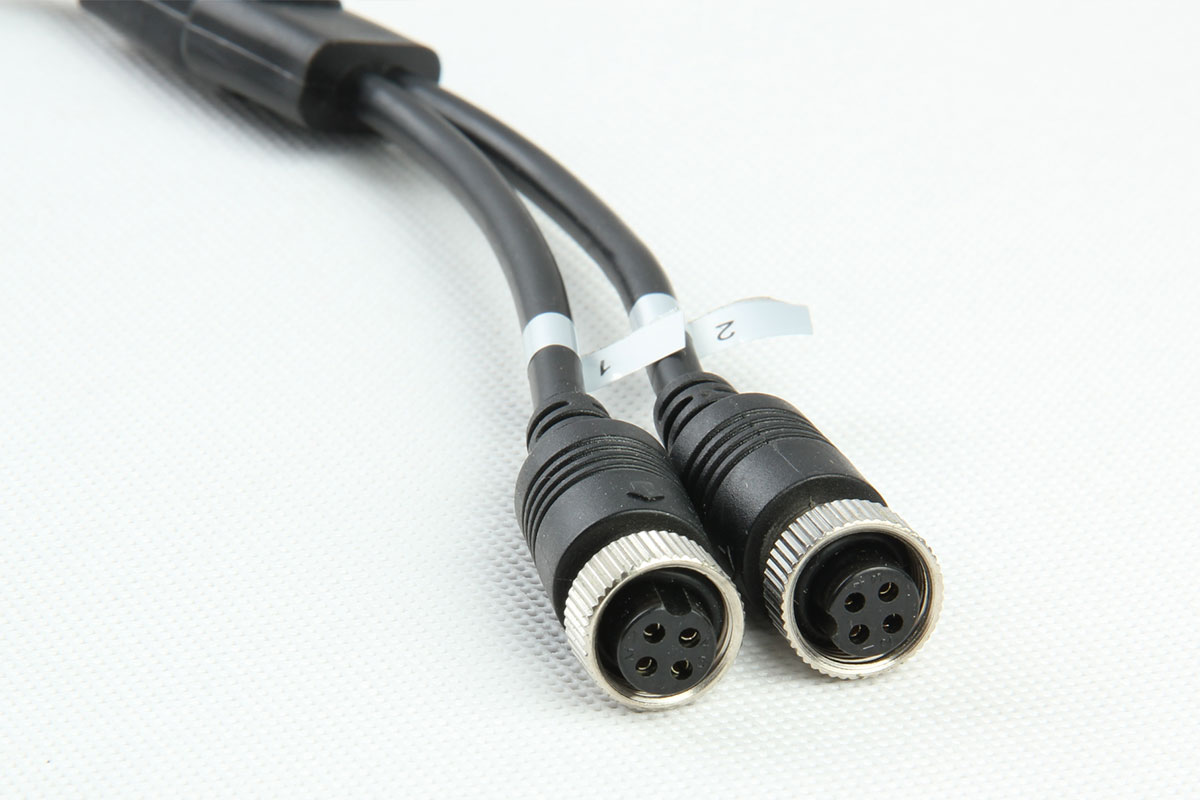

2 Channels Female End to Monitor:

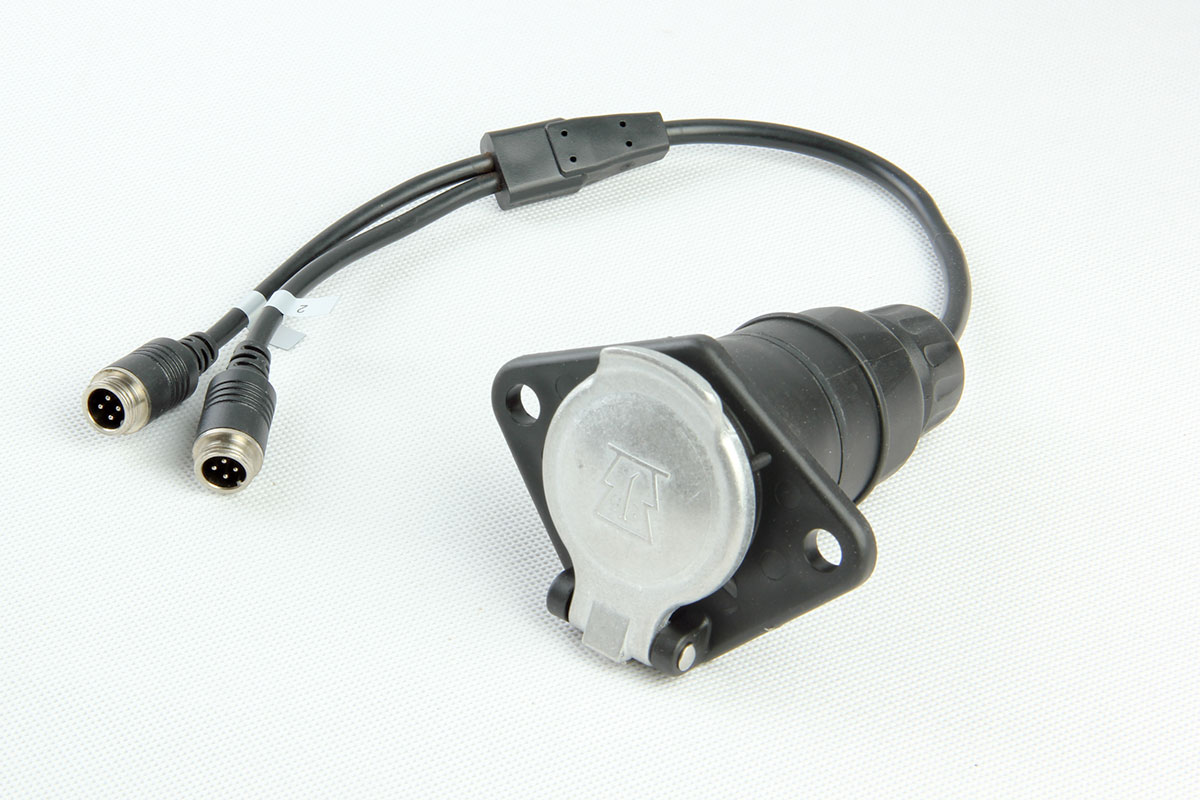

2 Channels Male End to Camera:

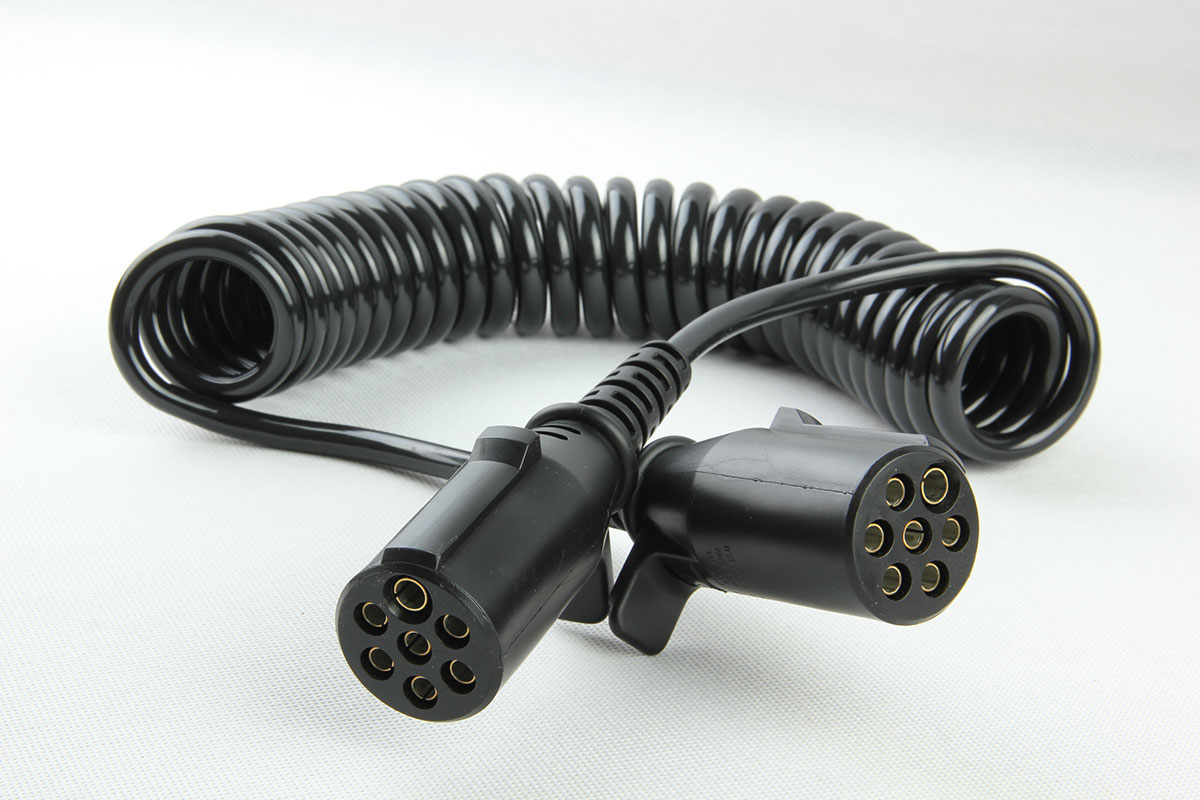

Spiral Wire for 3 Meters Working Range:

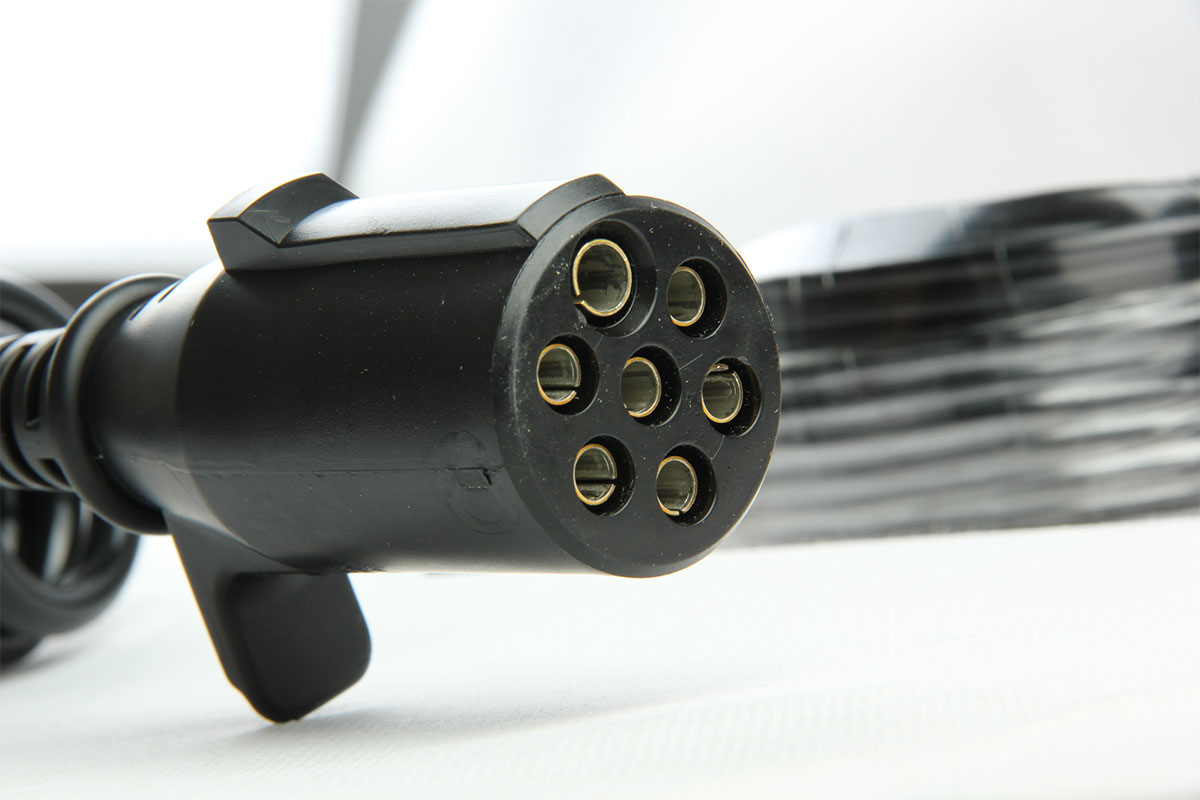

Spiral Wire 7Pins Connector:

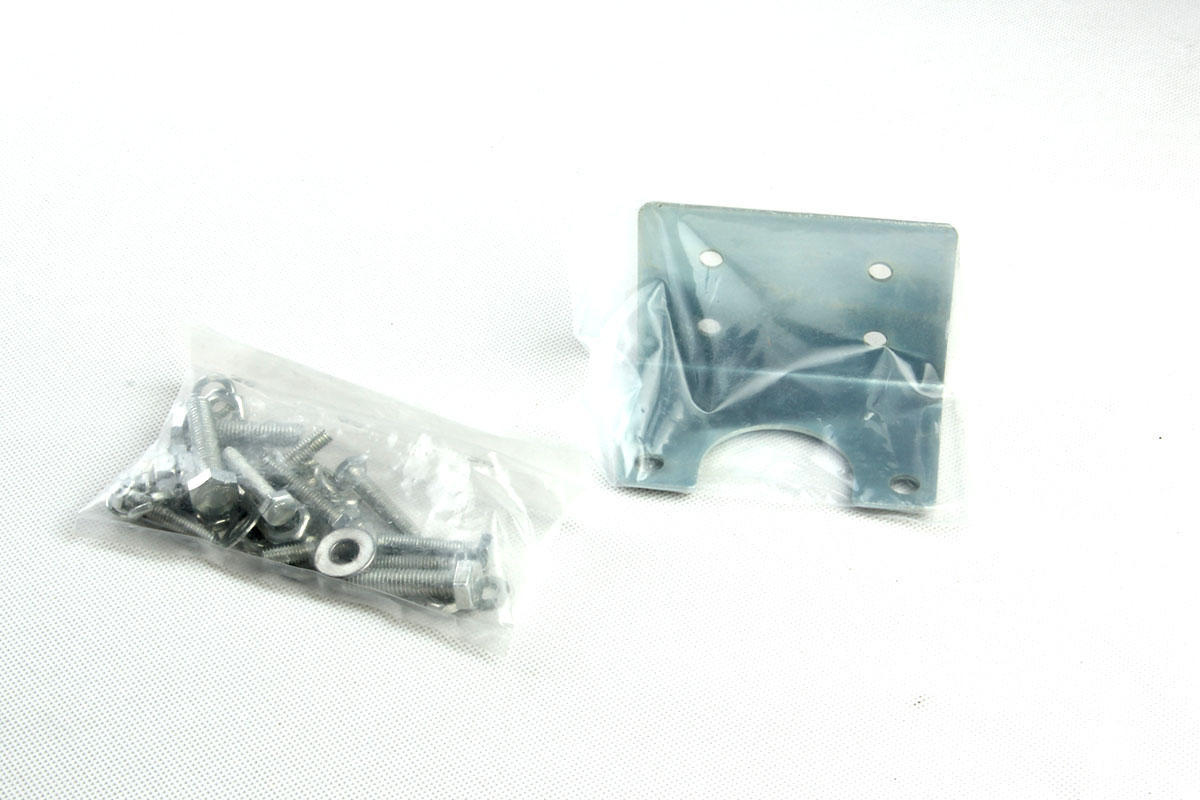

Stainless steel or Steel Zinc plating bracket:
Standard 4P Connector Configuration:
Stainless steel or Steel Zinc plating bracket size 1:
Stainless steel or Steel Zinc plating bracket size 2:
Stainless steel or Steel Zinc plating bracket size 3:
Stainless steel or Steel Zinc plating bracket size 4:
