1. What is BSD?

BSD(Blind Spot Detection) System: BSD warn the driver against collisions that may occur due to a lane change manoeuvre. BSD are intended to supplement the vehicle’s interior and exterior rear-view mirrors. BSD are intended to detect vehicles to the rear and sides of the subject vehicle (see Figure). When the subject vehicle driver indicates the desire to make a lane change, the system evaluates the situation and warns the driver if a lane change is not recommended. The system will not take any automatic action to prevent possible collisions. Responsibility for the safe operation of the vehicle remains with the driver.

2. Does it need make hole to install radar sensor?

No, BSD is different the normal parking sensor, BSD is with left and right microwave radar, it will be pasted on the bumper, the alarm range is 3-15m

3. Why your product no main device?

Our microwave radar build in DSP processor, it can directly transfer the command signal to the LED light, so it can save the
transfer time, make sure your safe driving.

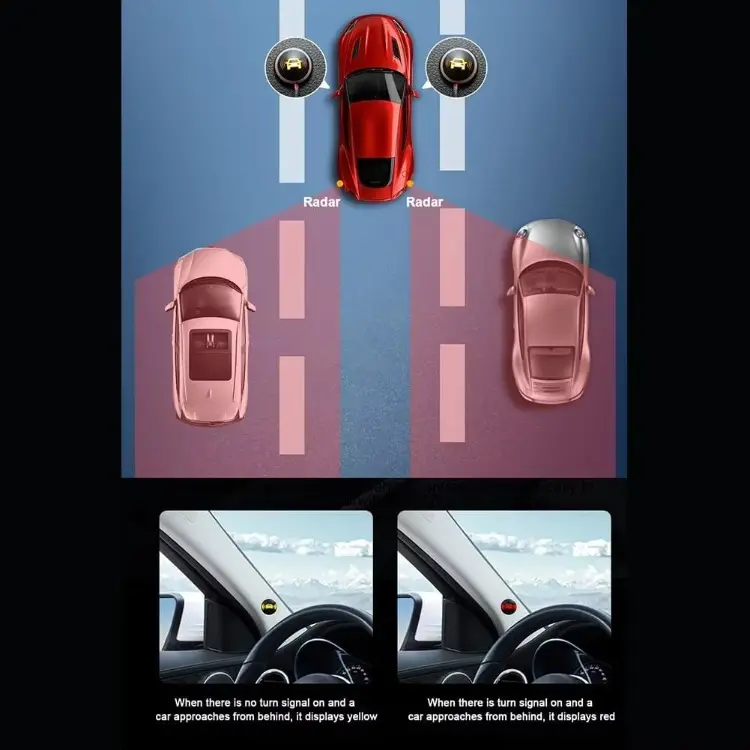

System Warning Area
1. System Detect Range: Both Side > 3m, Behind >15m
2. Defined Area: Min effective range

Model NO.:LR-003

Futures:

Correct Connector No cutting or splicing,
New and nice qulity, Easy install and use.
Auto Blind Spot Change Merge Assist Blind Spot Monitoring System
Built to quality control standards.Not easy to damage, long service life
Alarm mode 1: LED is always on 2: LED flashes + buzzer
Detection accuracy:0.25CM
24 GHz millimeter wave radar is mainly used for sideway applications
Maximum detection range of pedestrians:0.-10M
Motorcycle:0.-10M
Truck:0.-20MA

Specifications:

Sensor Install Position:
