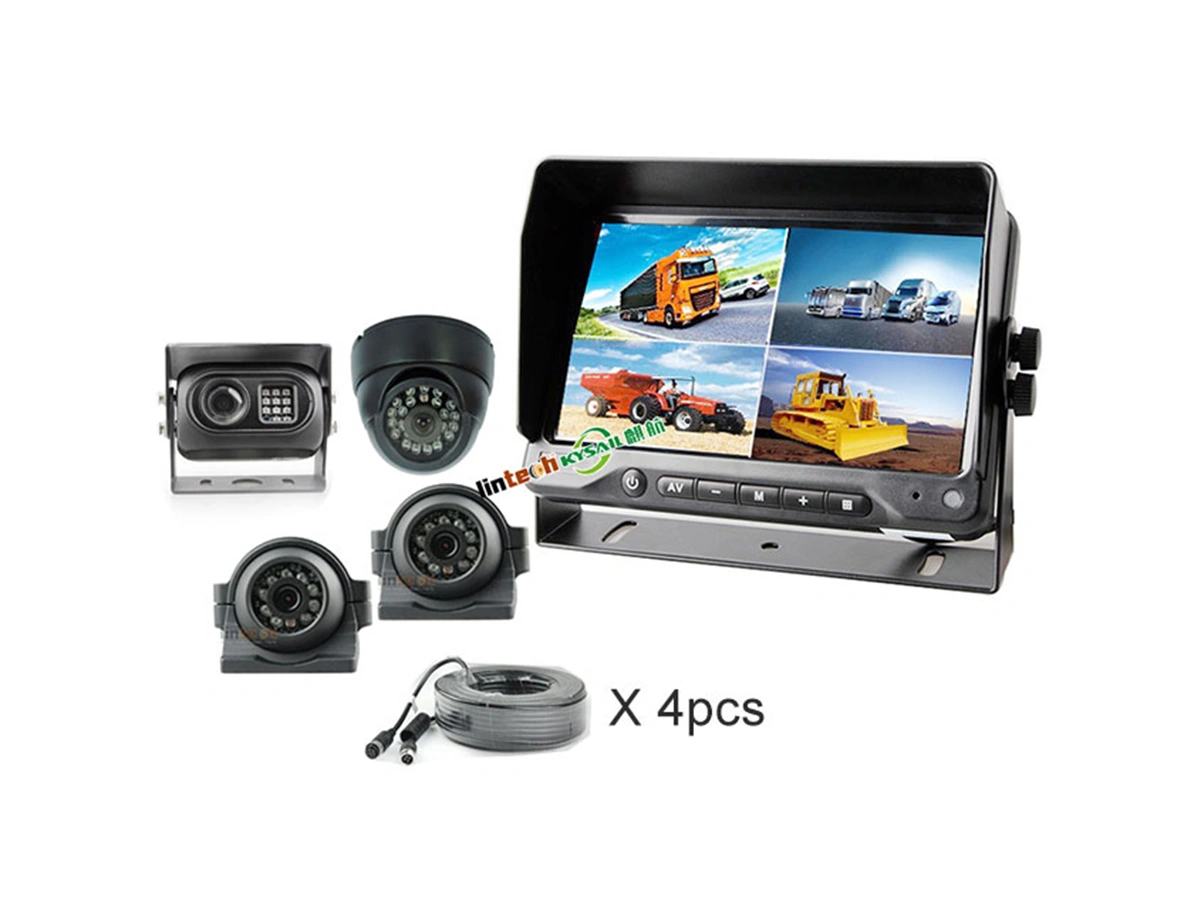

Heavy Duty IP69K Waterproof Camera Reverse Backup Rear View System
Model No:LW-070F4
Features:
1. It can add up to four rear view camera/side view camera/front view camera. It can be very effective to help you reduce the stress of checking blind spots while changing lanes, making safety confirmations, and inspecting goods in cars. 4 cameras are included by default.
2. Split Screen and Parking Guidelines: This monitor will display up to 4 cameras simultaneously or individually for bigger image, no more blind spots. With the parking guidelines, it can help you to judge the distance between your car and the object around it, which can make your parking safer and easier. What’s more, you can change the image to front view or rear view, so you can use one of the camera as the front view camera.
More Details :

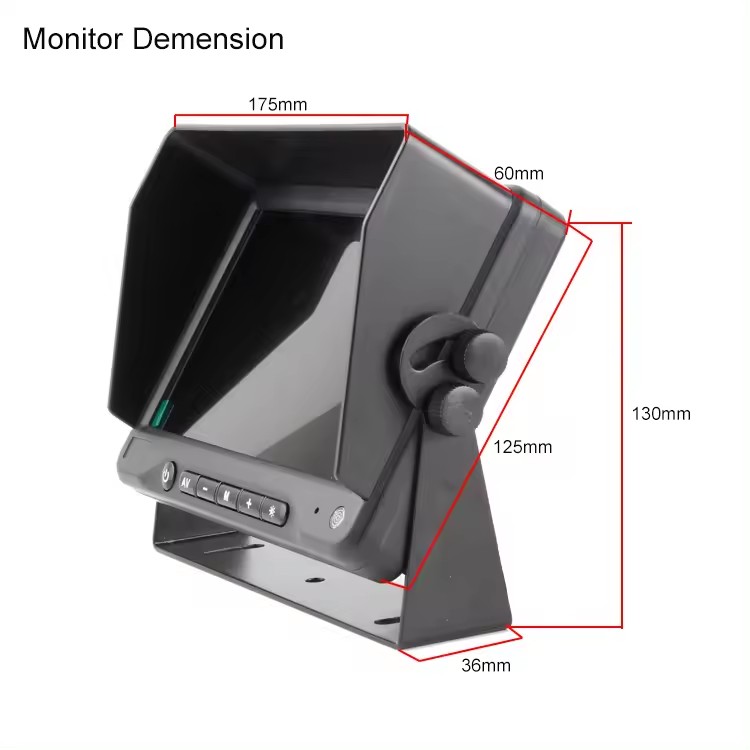

7 Inch Monitor(LM-070F-Q):
Specifications:
| Screen size | 7 inches new AU TFT-LCD panel |
| type | Stand-alone monitor (16:9) display |
| Display Resolution | 800 R.G.B x480 dots / AHD 1024*600 optional |
| System | PAL/NTSC auto switching |
| Video input | 4CH slipt funstion |
| Power supply | 12~32VDC |
| Power consumption | less than 7W |

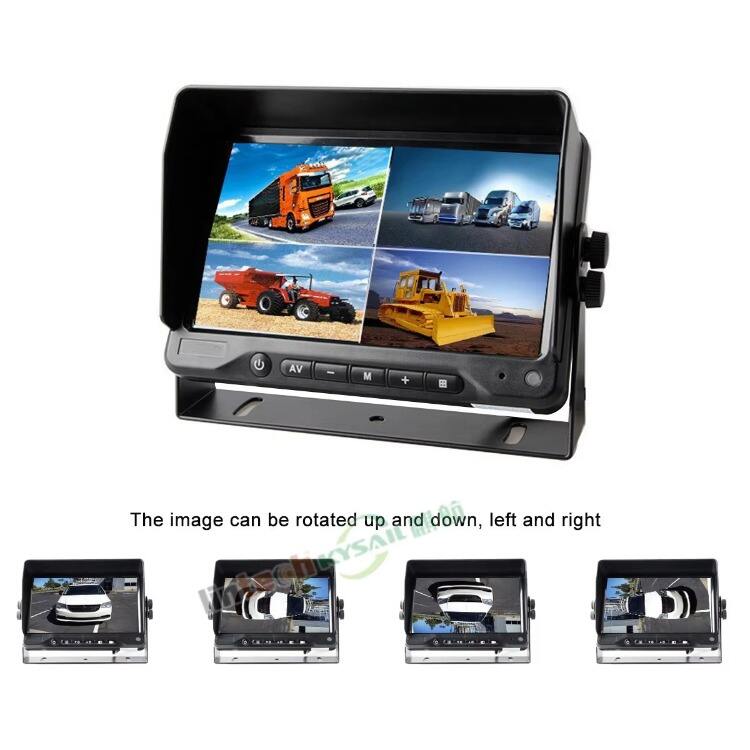

| Image | Up/down, Left/right functions |
| Loudspeaker | Optional |
| Remote control | Yes |
| Operating temperature | -10 ~ +65degrees |
| Storage temperature | -40 ~ +65degrees |
| Without signal | Video signal disappear, display blue screen |
| Languages | Select from 9 languages for user operation |
| Suitable for | camera/DVD/VCD player |
| trigger cable | Yes |
| Color | black color |
| Warranty | 18 months |
Support 4 CHs Cameras work with it:

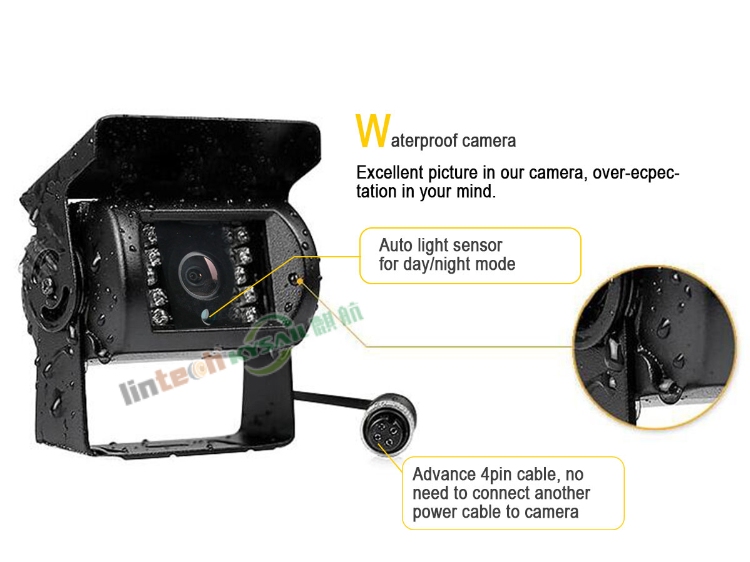

Rearview Camera(LC-018A):

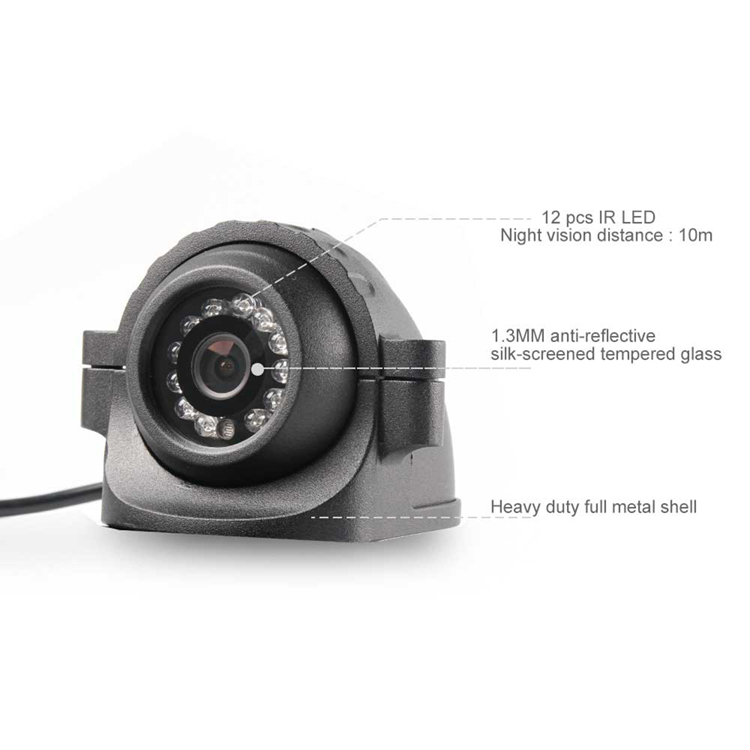

Side or Front camera(LC-009D1) can be install:

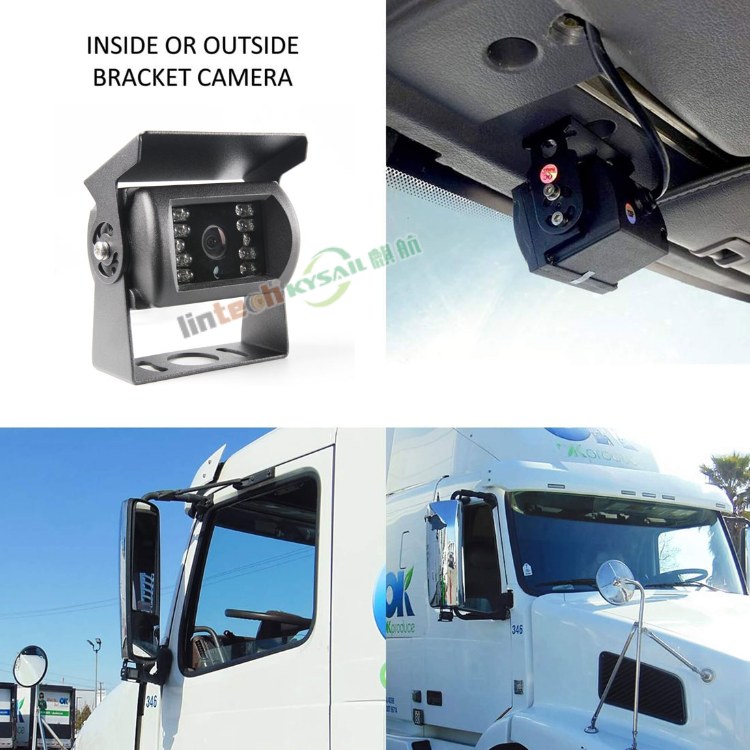

Front camera install:
4 pin aviation extension cables
4PIN cables Allows the monitor,power up cameras, no need to connect to another power cable.
