7 inches LCD Monitor for Heavy Truck
CVBS, AHD, 2CHs, 4CHs, Split functions

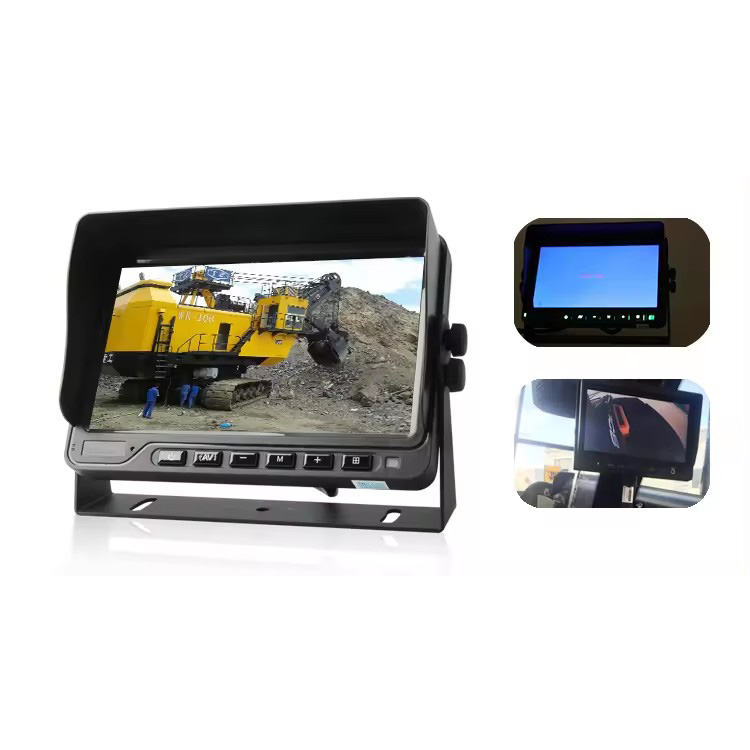

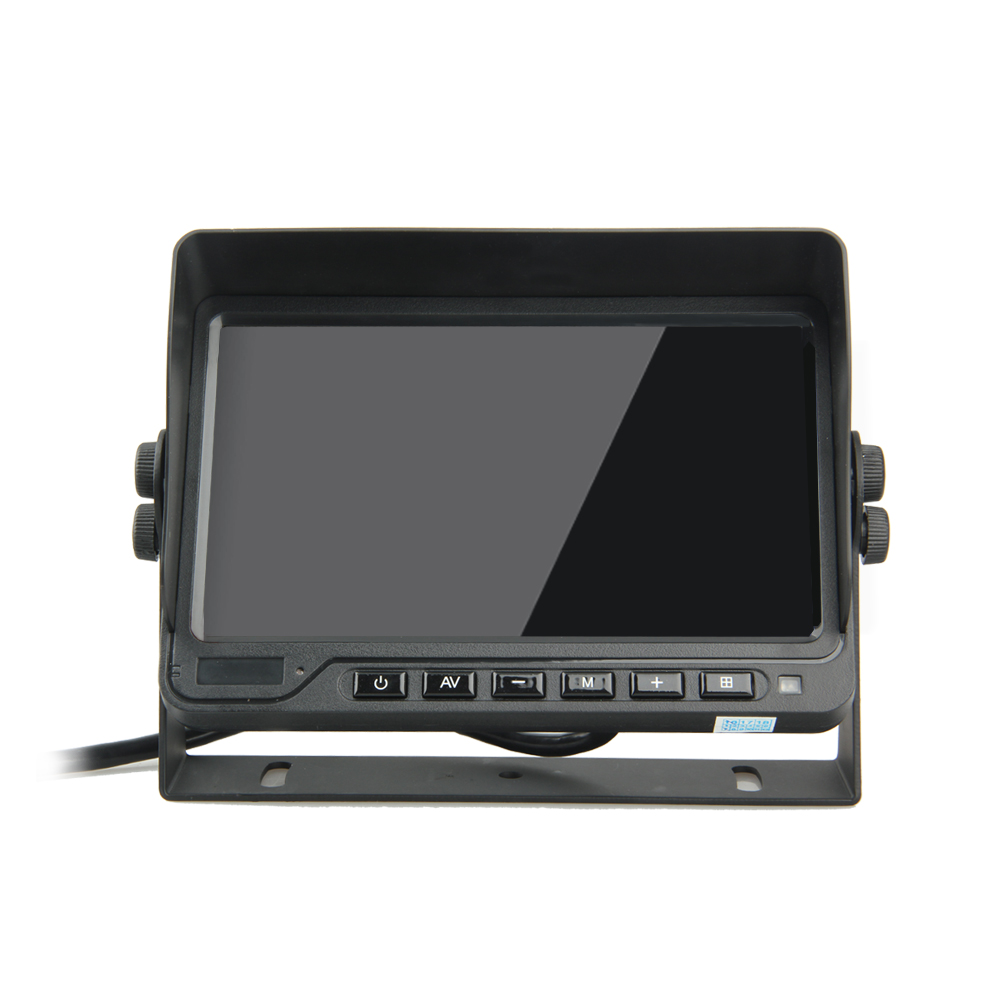

This monitor is a latest model was design for heavy duty, front housing panel with sun shield design integrated to make sure it’s strong enough.Its button with a green backlight which is more convenient to use at night. Also, for the screen specification, it’s resolution at 1024*600 for AHD version and 800*480 pixels for CVBS version. Have clear image effect in such size screen, and adustable brightness and contrast to make sure you can adjust it meet your owe requirements.
When concern to the U type bracket, it’s and stand for 10G shaking testing. It can performance steady well when goes with your trucks to any road condition.
Specification:
| Screen size: | 7 inches 2CHs Monitor | 7 inches 4CHs Quad Monitor |
| Video input: | CVBS / AHD | CVBS / AHD |
| Brightness: | 400cd/m2 | 400cd/m2 |
| Contrast: | 500:01:00 | 500:01:00 |
| Viewing angle: | U: 50/ D: 60, R/L: 70 Degree | U: 50/ D: 60, R/L: 70 Degree |
| Resolution: | 800 x R.G.B x 480 dots / 1024 x 600 | 800 x R.G.B x 480 dots / 1024 x 600 |
| Video input: | 2CHs video input | 4CHs video input, split display |
| Power supply: | 12~32VDC | 12~32VDC |

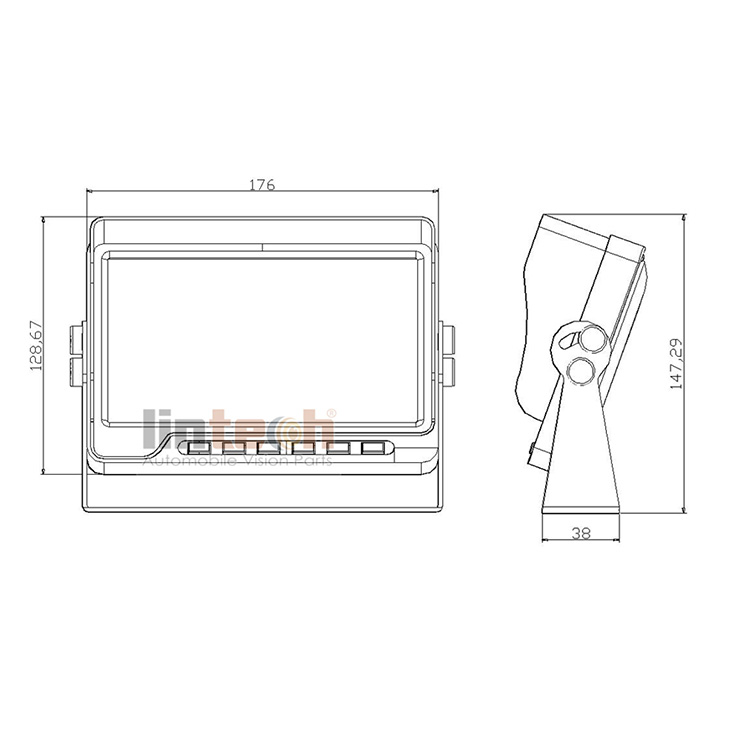

| Outer dimension: | 176mm x 122mm x (35-73)mm | 176mm x 122mm x (35-73)mm |

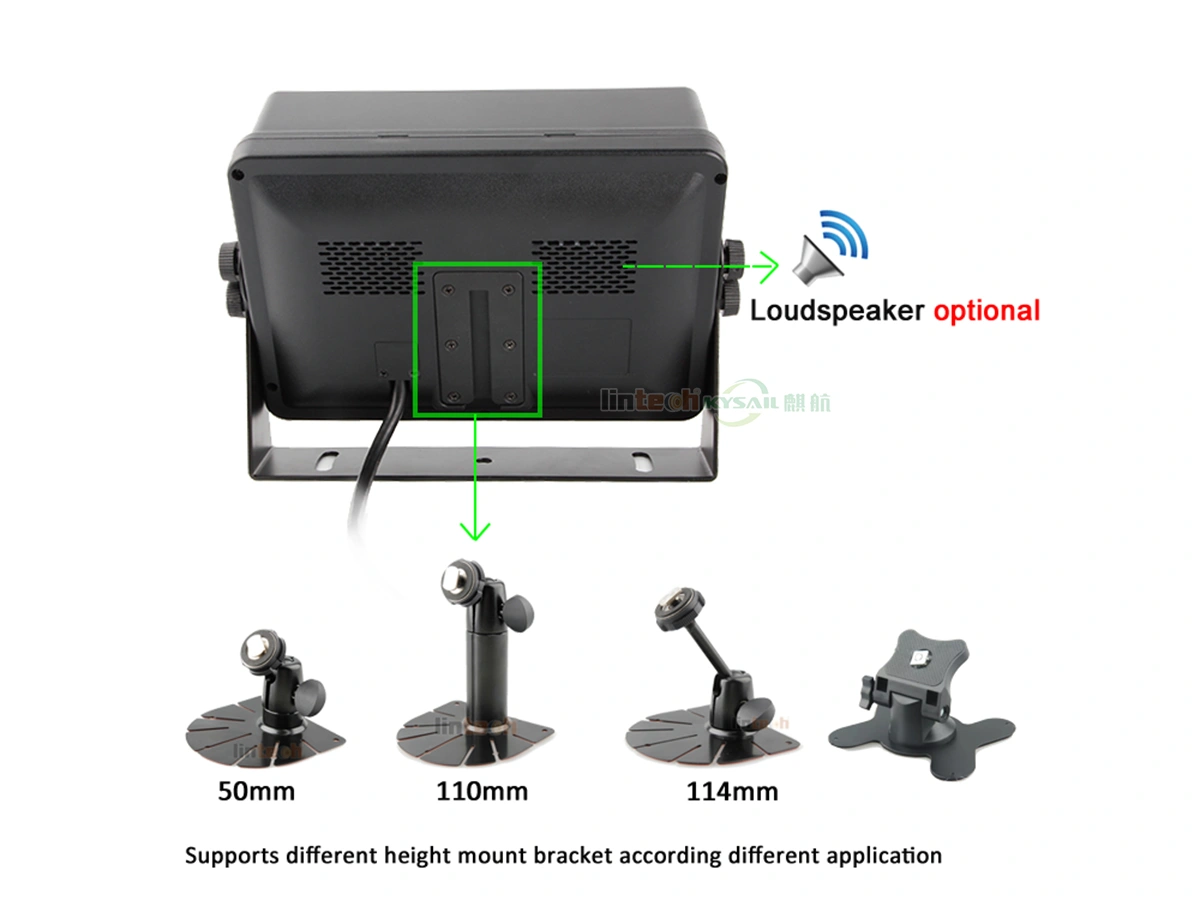

| Bracket: | U-type bracket (Sector type / Butterfly type optional) | U-type bracket (Sector type / Butterfly type optional) |
| Features: | Reversing guide lines – Adjustable + Distance | Reversing guide lines – Adjustable + Distance |
