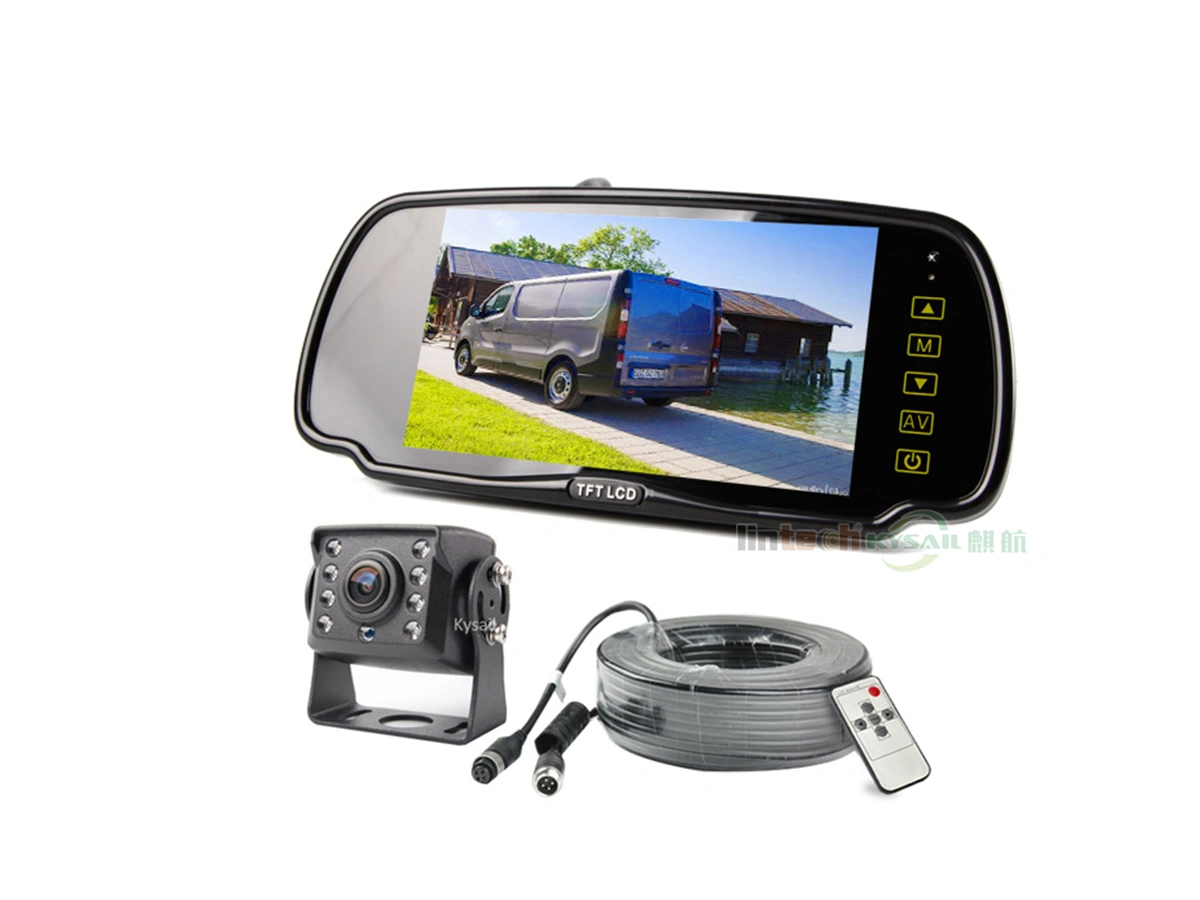

Digital Wired Backup Rearview Camera Parking Reverse Kit 7 Inch Mirror Monitor
Car camera rear view mirror for the RV Motorhome large vehicle, a single camera can only have the reversing aid function. But in the process of driving, driver can not see through the middle mirror to know the rear situation, that’s not safety enough while driving. Therefore, the twin lens / dual-lens camera coming out to perfect solve this problem.
TFT- Thin Film Transistor. The LCD pixels are integrated behind the film transistor so that the monitor works well with high speeds displaying excellent brightness and contrast.
–Trigger Wire Green does not have to be connected, it only requires connection if you want a camera to come on automatically when the vehicle is put in reverse for example.
More details of car camera rear view mirror kits:
Model No:LW-070M-B
Features:
- High brightness 500:1(You can still see the image on the screen in the refracted sunlight.)
- 2 videos inputs.(4CHs optional if you need)
- Dightal resolution:800xR.G.Bx480 / AHD 1024*600 OPTIONAL
- Improved wide voltage:surpport 10~36V power input

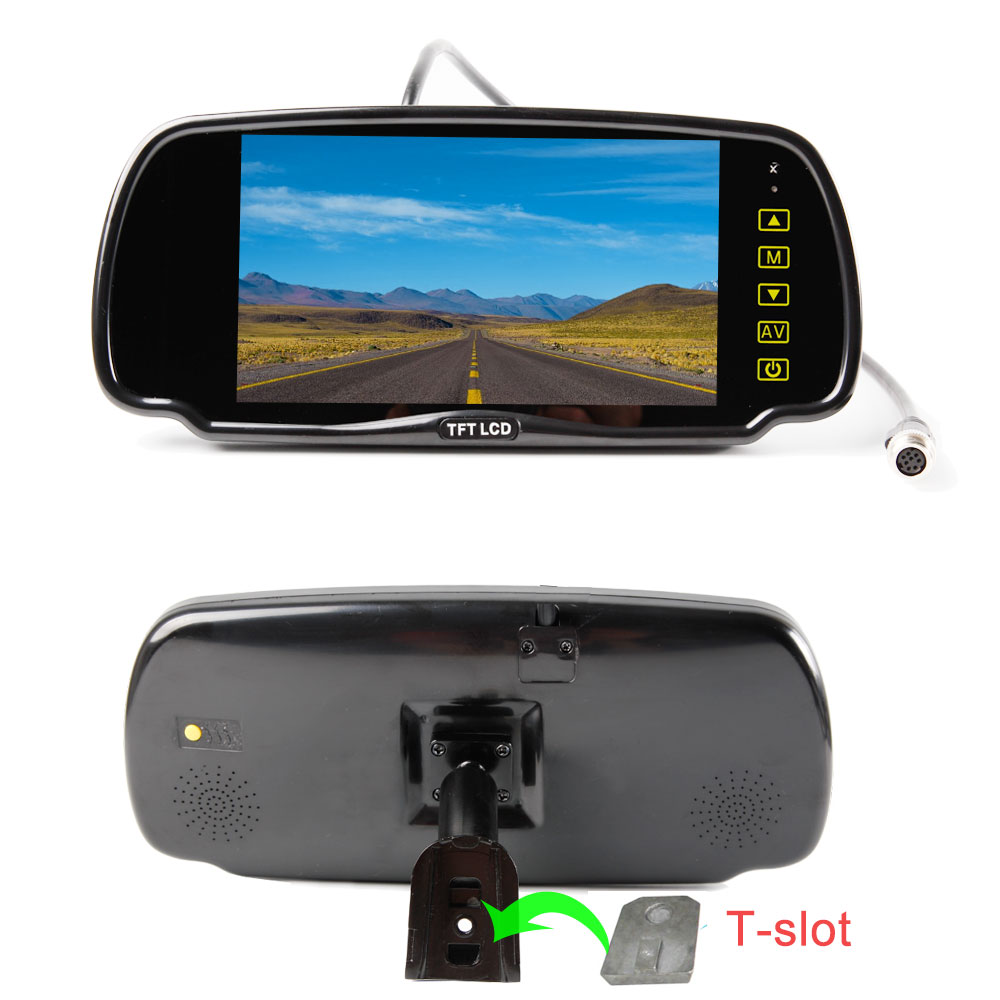

- With metal bracket

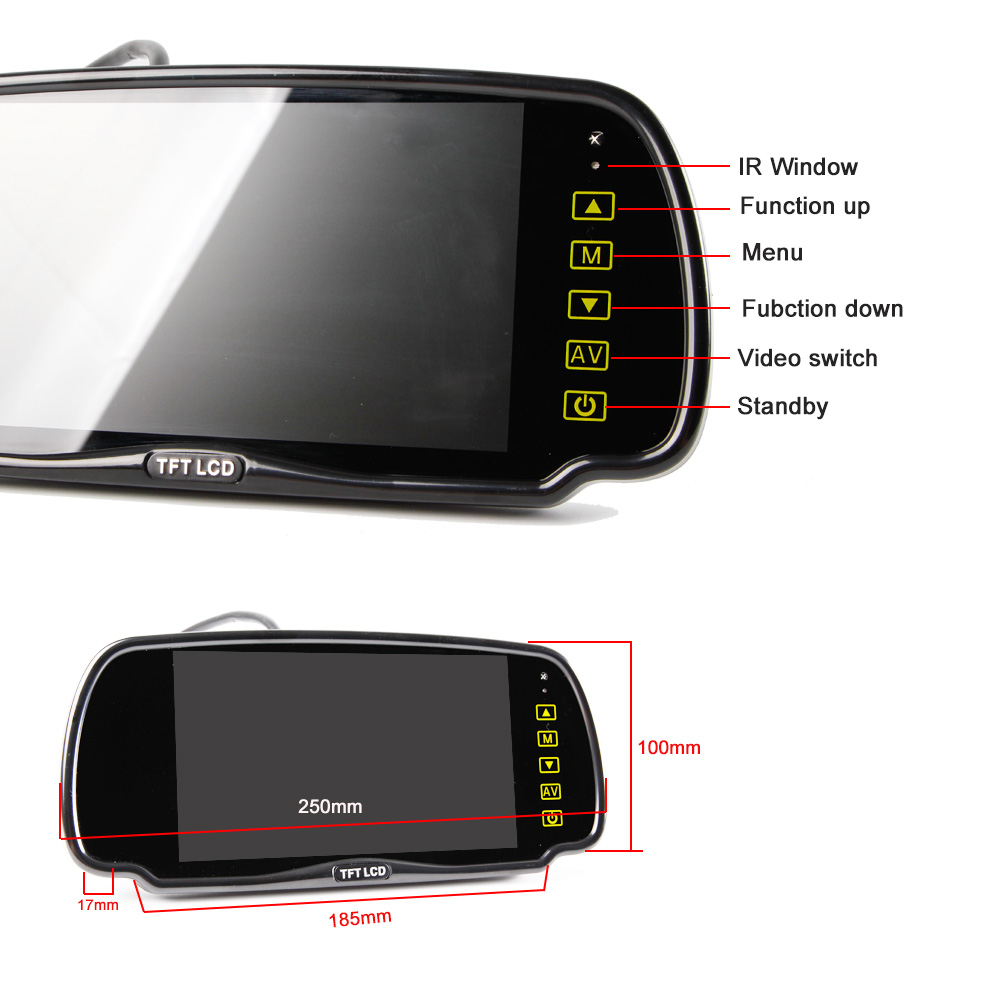

| 7 inch Rear view Mirror Car Monitor Spec: | |
| Screen size: | 7″ LCD mirror monitor |
| Brightness: | High brightness 500 (CD/M2) |
| Resolution: | 800(W) x RGB x 480(H) / AHD 1024*600 optional |
| System: | PAL/NTSC |
| Type: | Mirror monitor (16: 9) display |
| Video input: | Standard V1/V2 (V1/V2/V3/V4 optional) |
| System: | PAL & NTSC auto switching |
| Power supply: | DC 10-32V |
| Power consumption: | less than 7W |
| Operating temperature: | (-)10 to +65 C-degree |
| Storage temperature: | (-)20 to +65 C-degree |

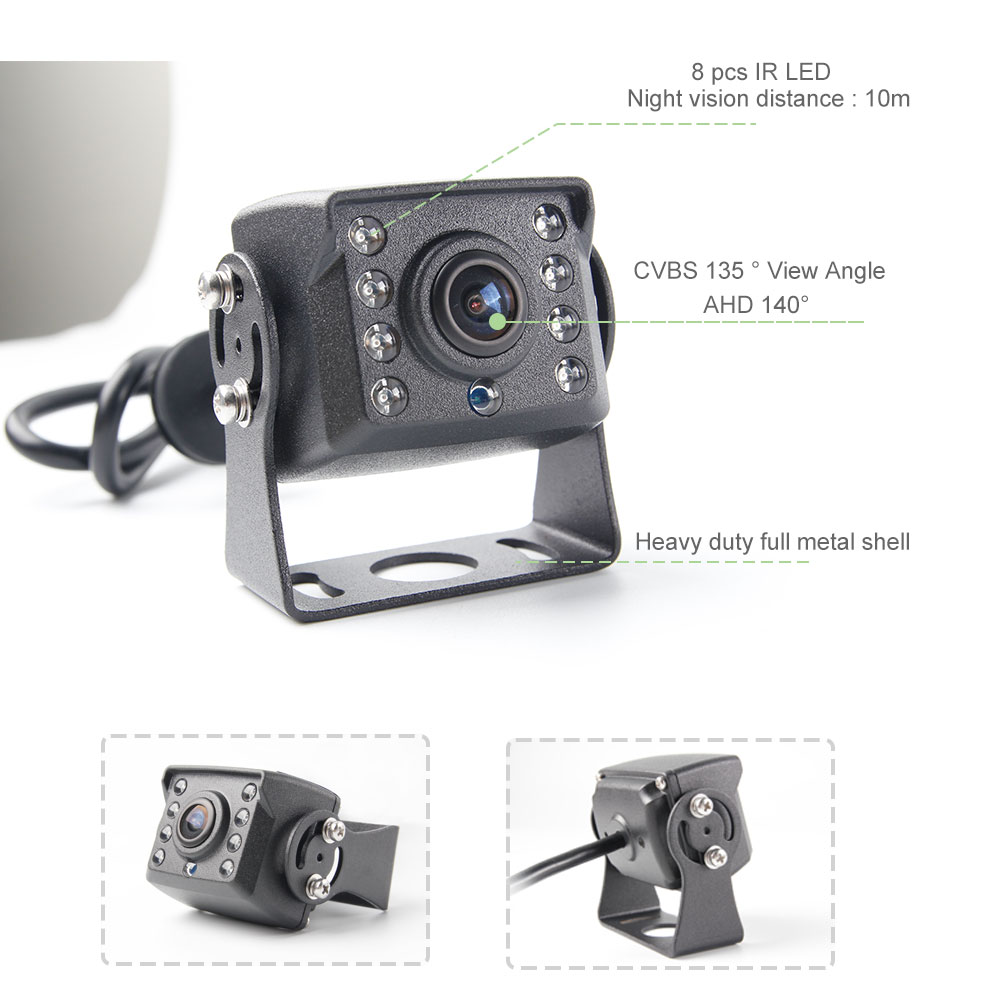

Rear View Camera(LC-008A):
| Type | 1080P | 960P | CMOS |
| Sensor | 1/3” APTINA CMOS | 1/3” APTINA CMOS | 1/3″ CMOS CCD |
| Resolution: | 1920*1080 (2.0M Pixels) | 1280*960 (1.2M Pixels) | N:510×492 pixels P: 500×582 pixels |
| Effective Pixels | 2,000,000 pixels | 1,300,000 pixels | 300,000 pixels |
| Lens: | 2.8mm/8.0mm | 2.8mm/8.0mm | 2.8mm/8.0mm |
| Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
| IR led: | 8pcs | 8pcs | 8pcs |
| Night Vision distance: | 15m | 15m | 12m |
| Waterproof | IP69K | IP69K | IP69K |
| View angle: | 120° | 120° | 120° |
| Power voltage: | 12V | 12V | 12V |
| Operation Temp.: | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C |

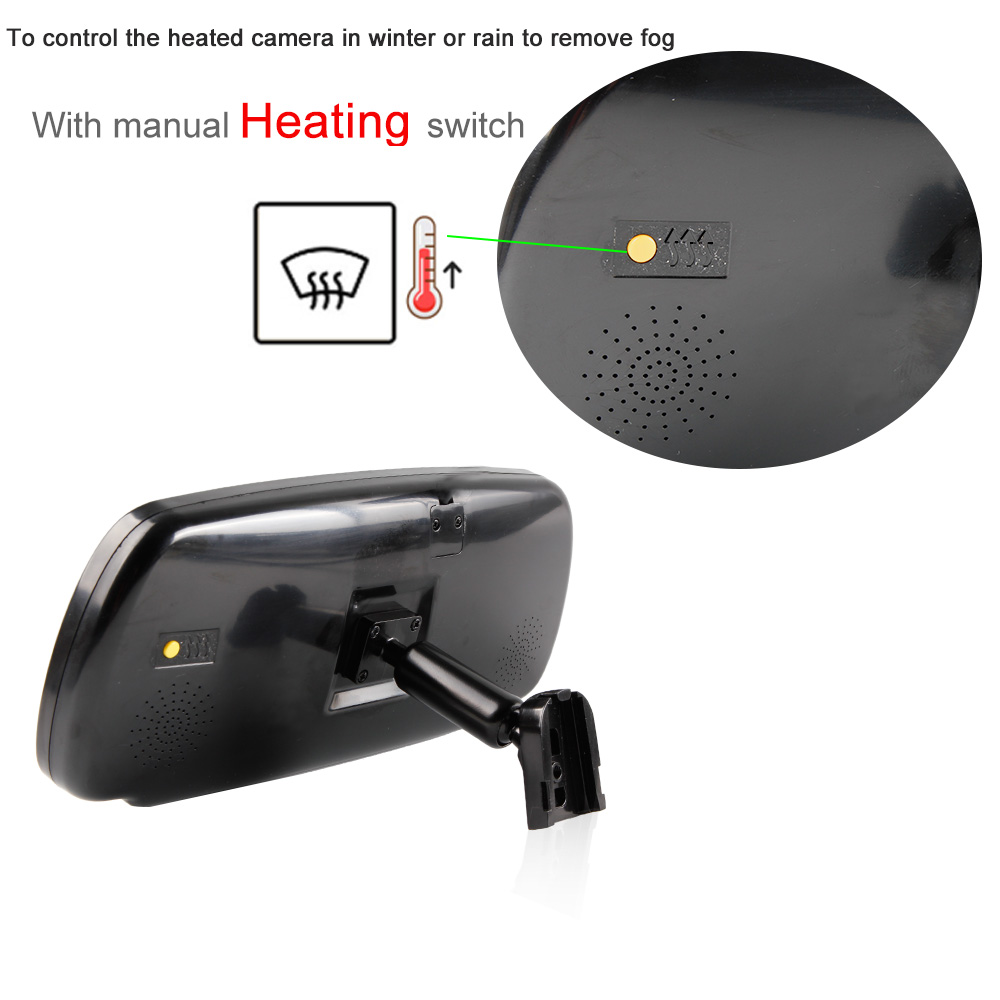

| Heater built-in | / | / | / |
| Microphone | optional | optional | optional |
| IR cut | optional | optional | / |
