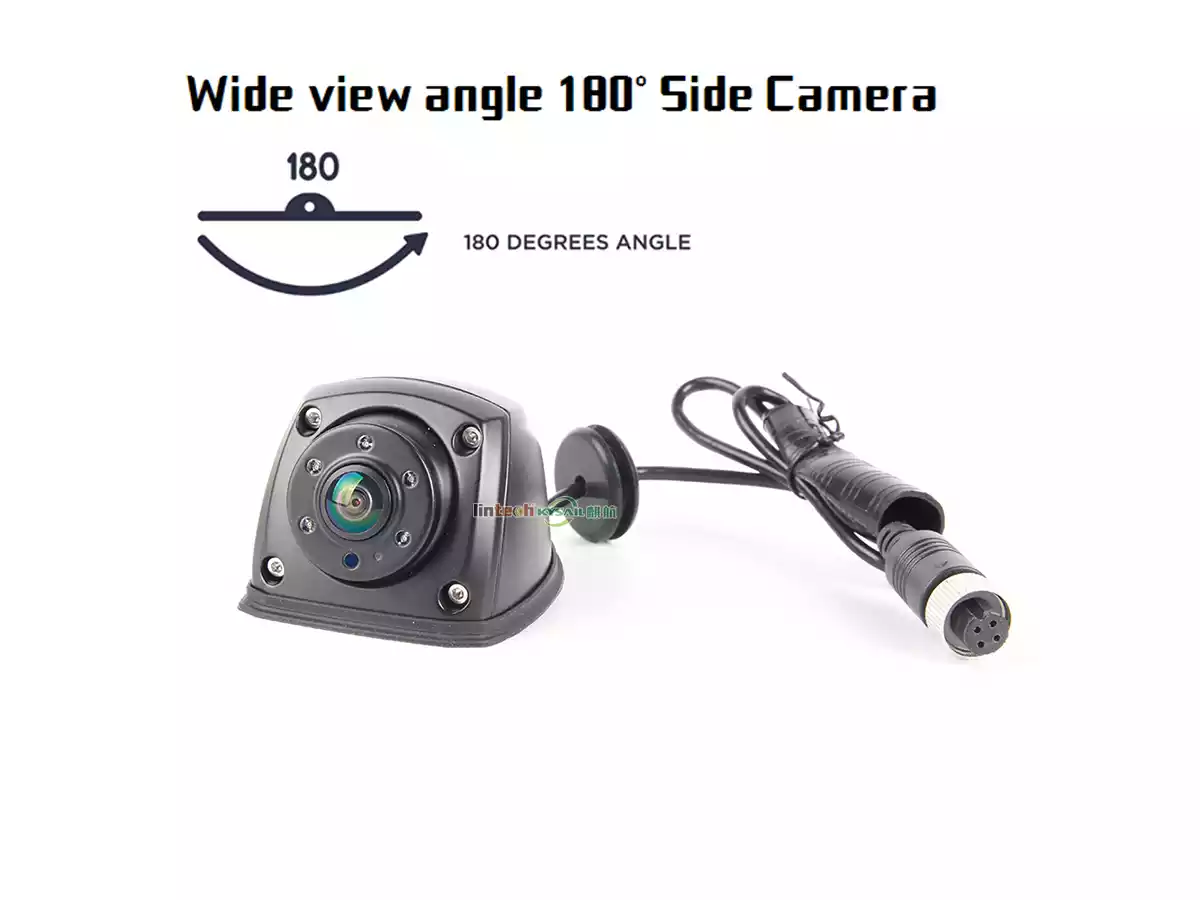

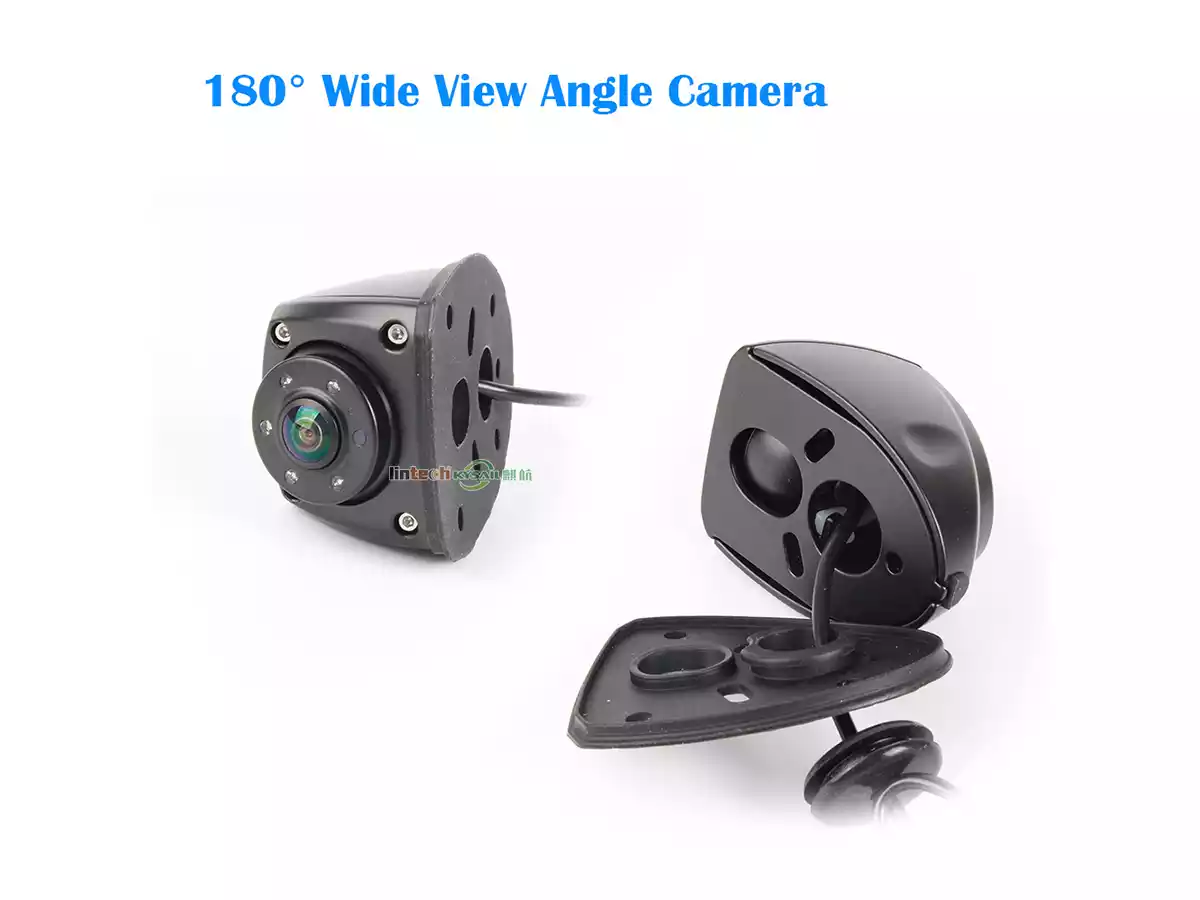

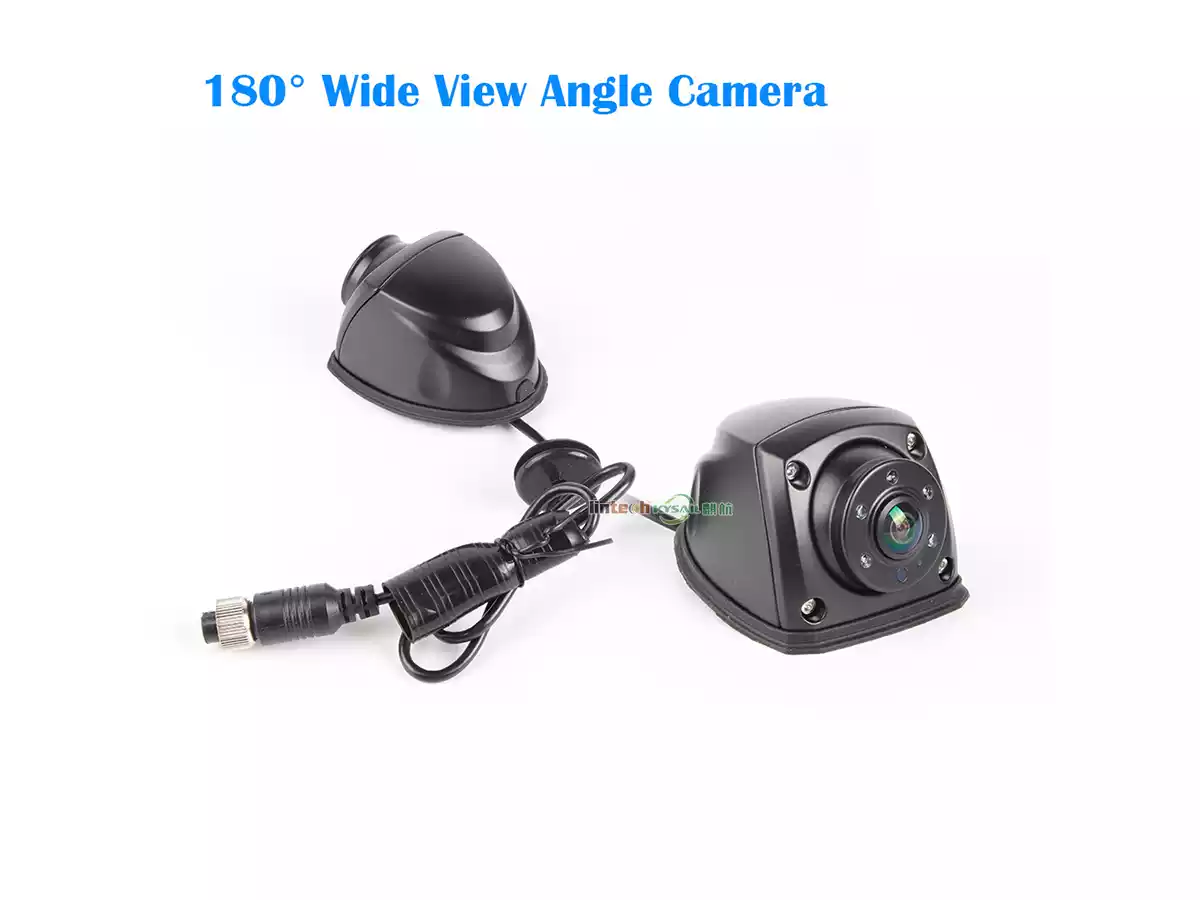

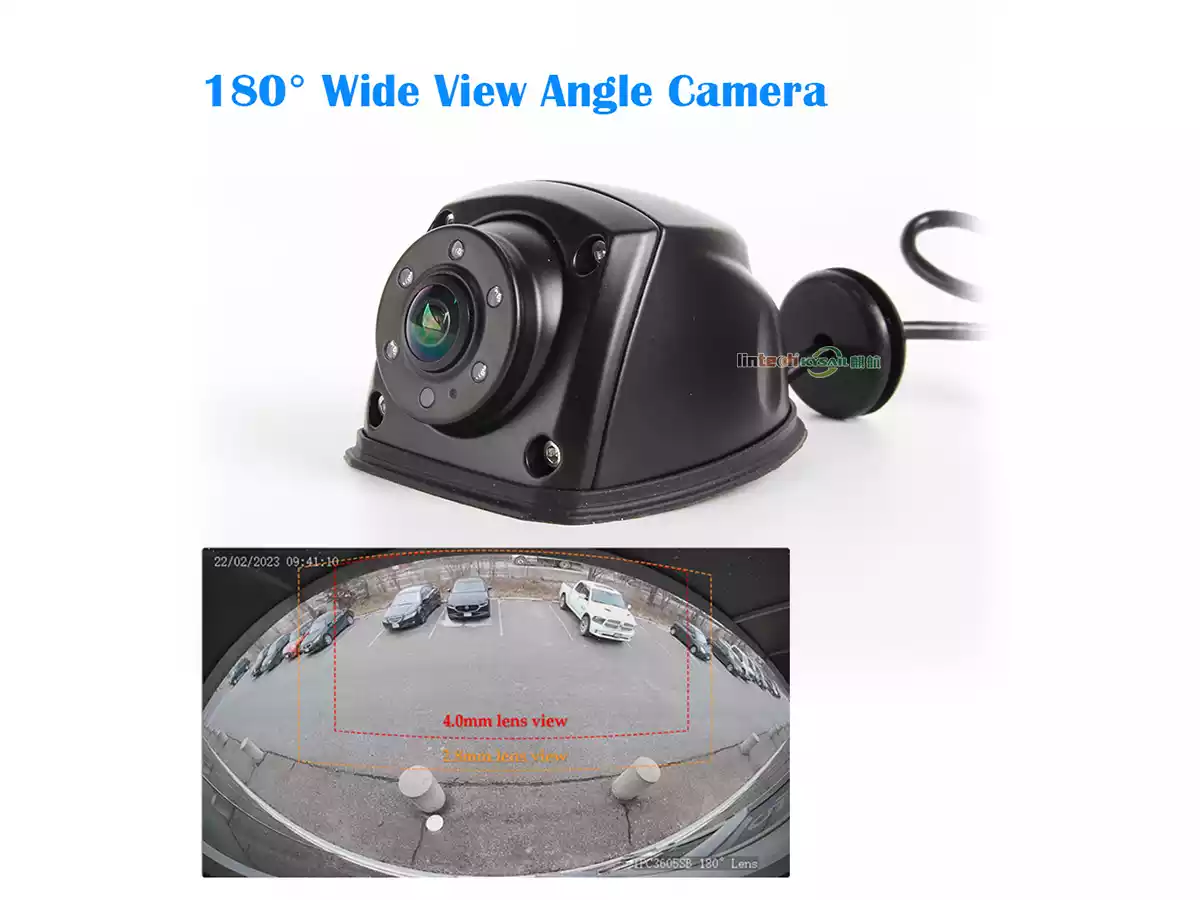

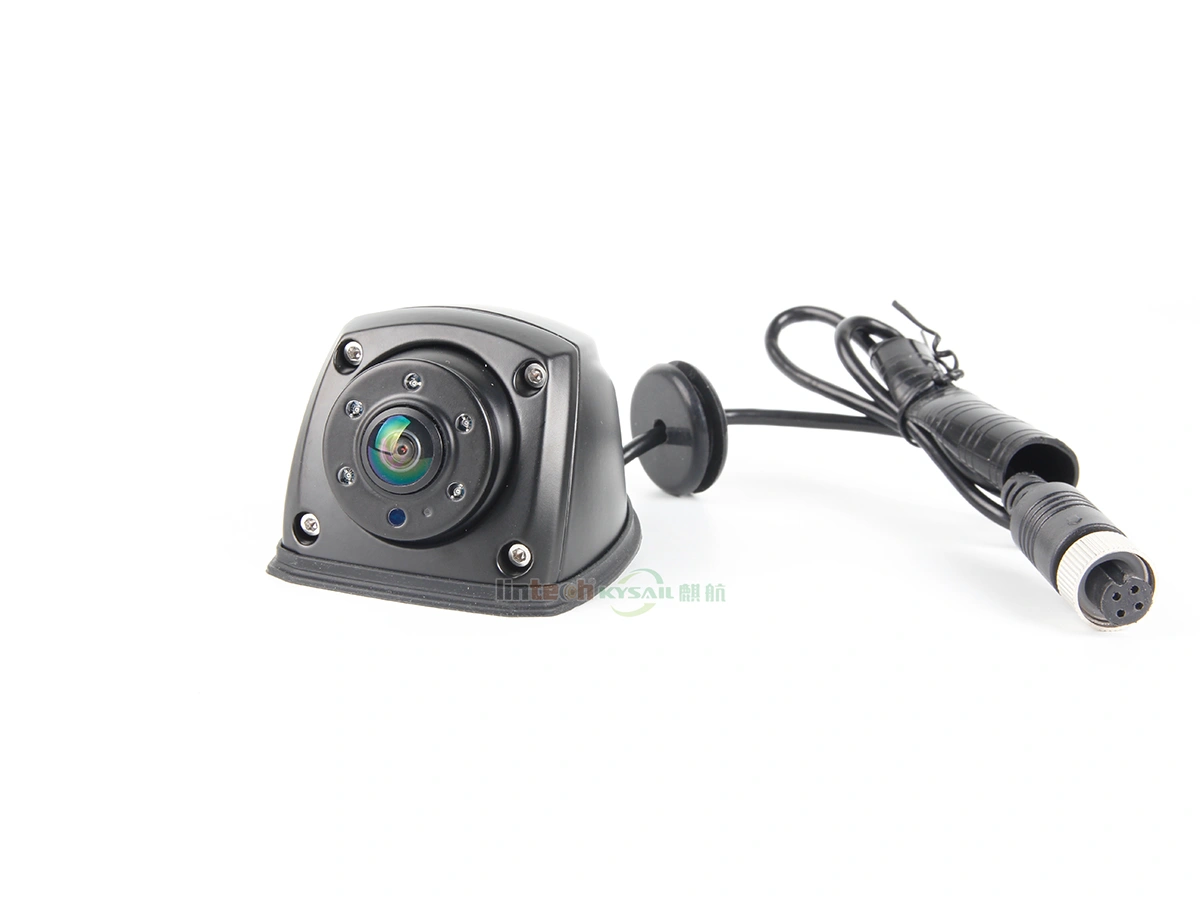

AHD 180° Wide-Angle Side mounted Rear view camera – Designed for van, trucks RV motorhomes, this waterproof CCD camera delivers crisp 720p video with superior night vision for safe reversing. Features:
✔ 180° ultra-wide view – Eliminates blind spots
✔ Auto IR night vision – Clear imaging in darkness
✔ IP69K waterproof & dustproof – Harsh environment ready
✔ Heavy-duty metal housing – Shock & vibration resistant
✔ Easy installation – Works with AHD monitors (12V power)
Ideal for cargo van, camper, trucks, ambulance, bus and heavy-duty vehicles requiring reliable rear visibility.
Specification:
Sensor | 1/3″ APTINA 1080P | 1/3“ CMOS CVBS |
Resolution: | 1920*1080 (2.0M Pixels) 2,000,000 pixels | 1/3“ CMOS CVBS |
TV line | 1080P | 1280*720P |
Lens: | 180 degree | 150 degree |
Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) |
IR led: | 5pcs | 5pcs |
Night Vision: | 3~7M | 3~7M |
Waterproof | IP68 | IP68 |
View angle: | 180° | 150° |
Power voltage: | 12V | 12V |
Operation Temp: | -20℃~+70℃ | -20℃~+70℃ |
Aditional Function: | ||
Microphone: | Optional | Optional |
Mirror/Normal: | Optional | Optional |
Heater built-in: | Optional | Optional |
12~24V voltage: | Optional | Optional |
