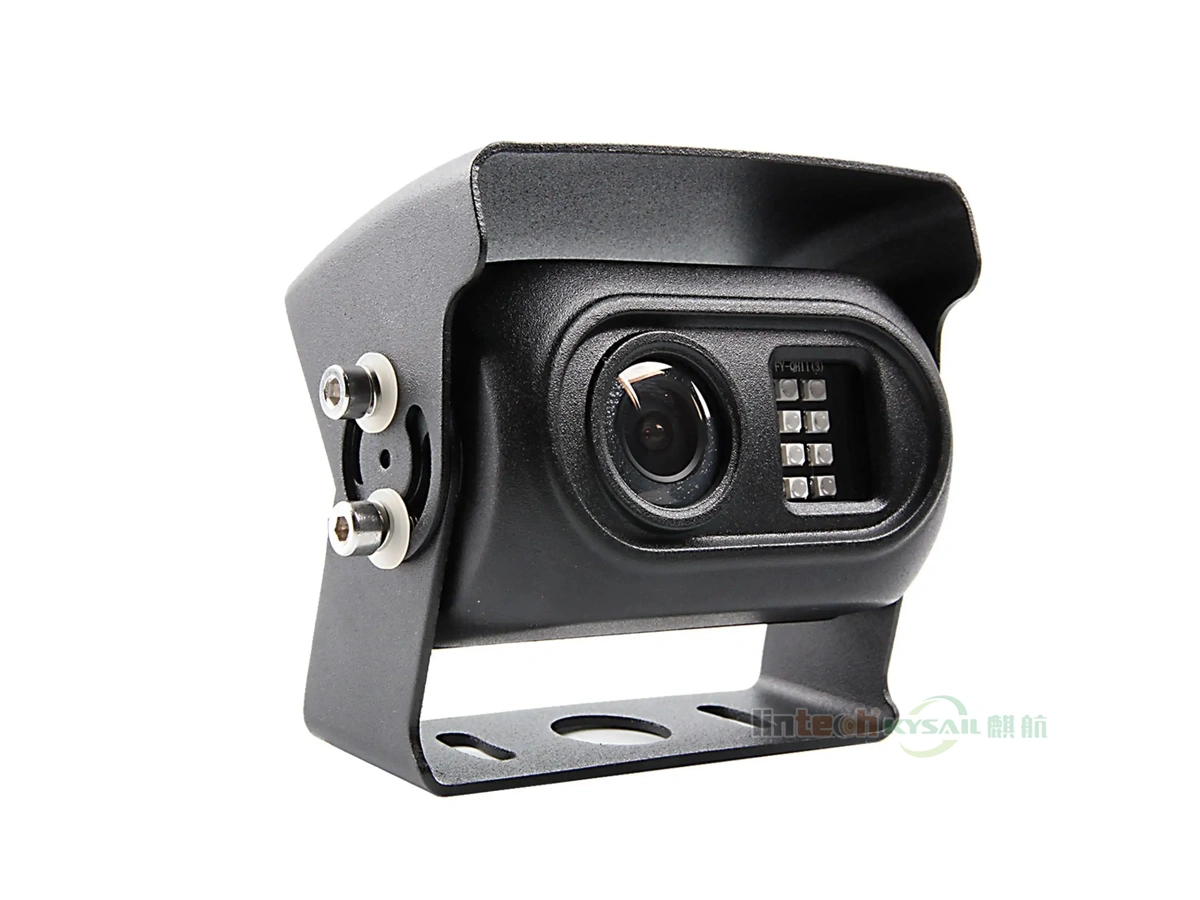

HD Backup Camera: AHD 2.0MP Sensor Anti-Reflex Design
This HD Backup Camera with high resolution image, special design for night vision IR light anti-reflex, suit for driving monitoring, DVR, backup assistants purpose.
You don’t need to prepare many SKU stock products, just one will be enough to save cost.

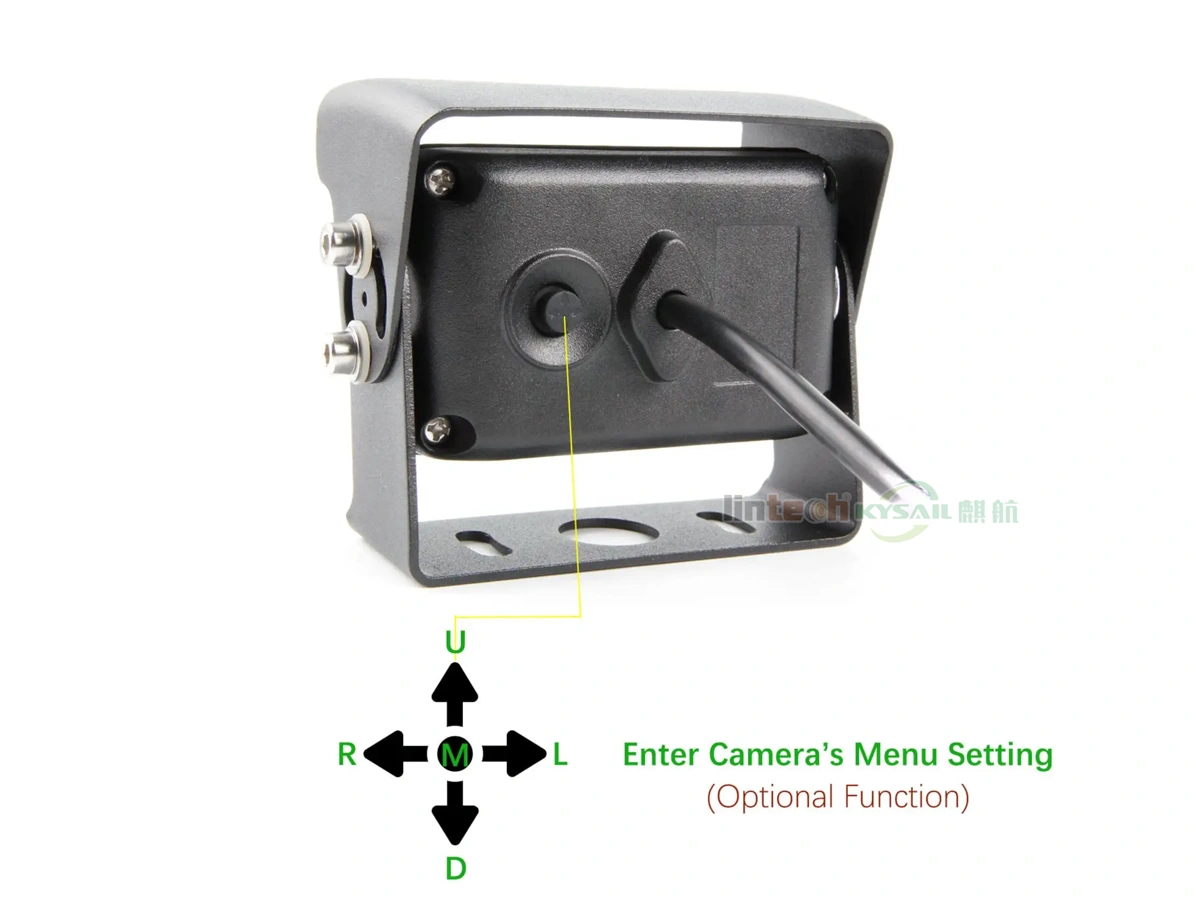

Built-in Multi-function menu, will can switch yourself:
- DIY switch: AHD 1080P or 720P or CVBS singal
PAL or NTSC
Mirror / Non-mirror image
Flip up / down image
ect other settings
- DIY switch: AHD 1080P or 720P or CVBS singal
Further explain:

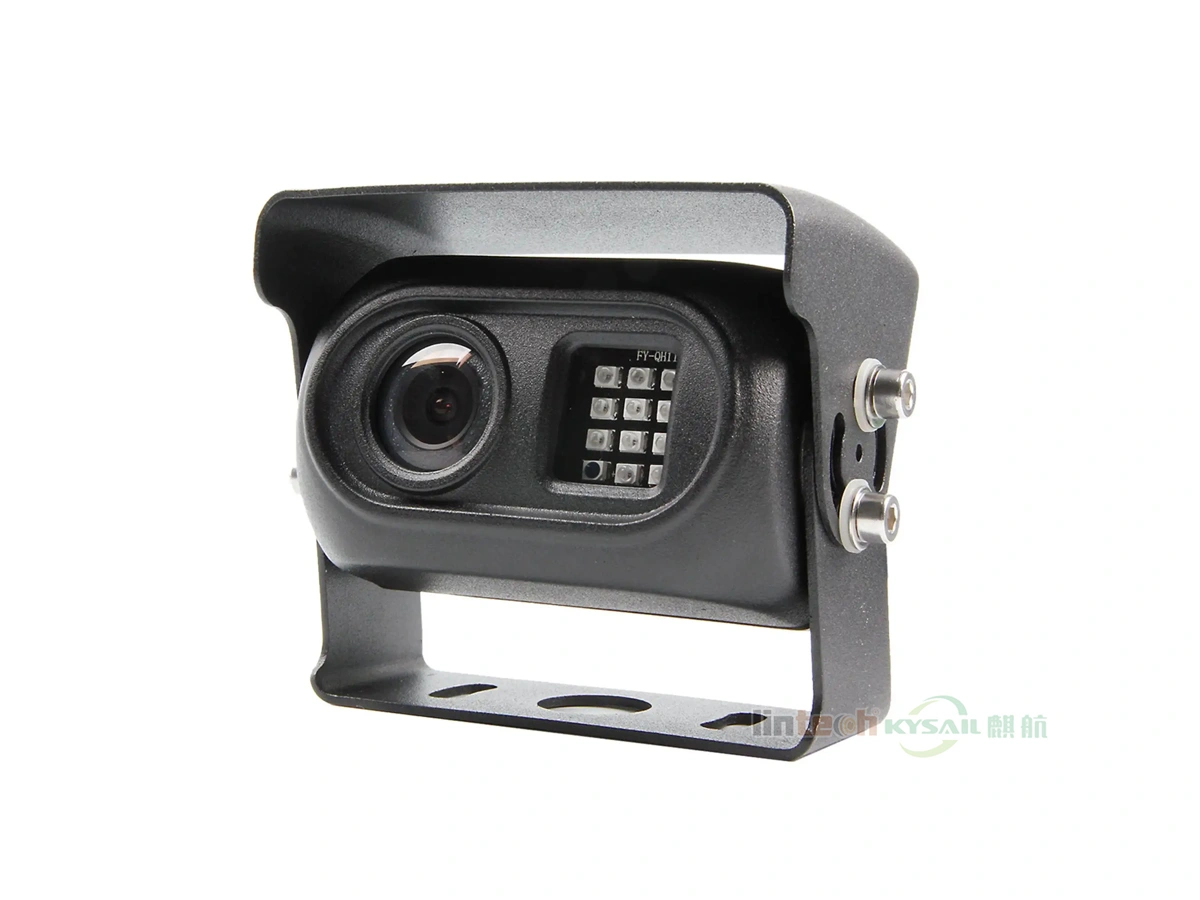

Most of night vision backup camera IR LED and Lens were put in the same space,when camera working at night time, IR LED start working, some of IR light was reflex to the camera lens, especially when the glass with some dust or dirty, it make the image indistinct.
After design IR led and Lens separate with 2pcs glasses, IR light reflex problem solve. 11pcs SMD Type New IR LED, the backup camera will be able to see up to 50ft even in complete darkness! This night vision will be even without any ambient light at all.
Specifications:
| Subject | Standard Parameter | Optional Parameter |
|---|---|---|
| Image sensor | 1/3” CMOS AR0130/H68 | GC2053 + FH8536H CMOS |
| Resolution | 1280*960 (1.2M Pixels) | 1920*1080 (2.07M Pixels) |
| Horizontal Resolution | AHD 960P | AHD 1080P |
| TV System | NTSC/PAL | |
| Lens | 2.8mm | |
| View angle (degree) | Horizontal 90 , Vertical 50, Diagonal 102 | Horizontal 105 , Vertical 53, Diagonal 122 |
| Power supplier | 12VDC | |
| Current consumption | 150mA | |
| Power consumption | 1.8W @ 12VDC | |
| Min illumination | 0 Lux (LED ON) Night Vision | |
| IR LED | 11 pcs (Night vision distance 5m) | |
| Waterproof rating | IP69K | |

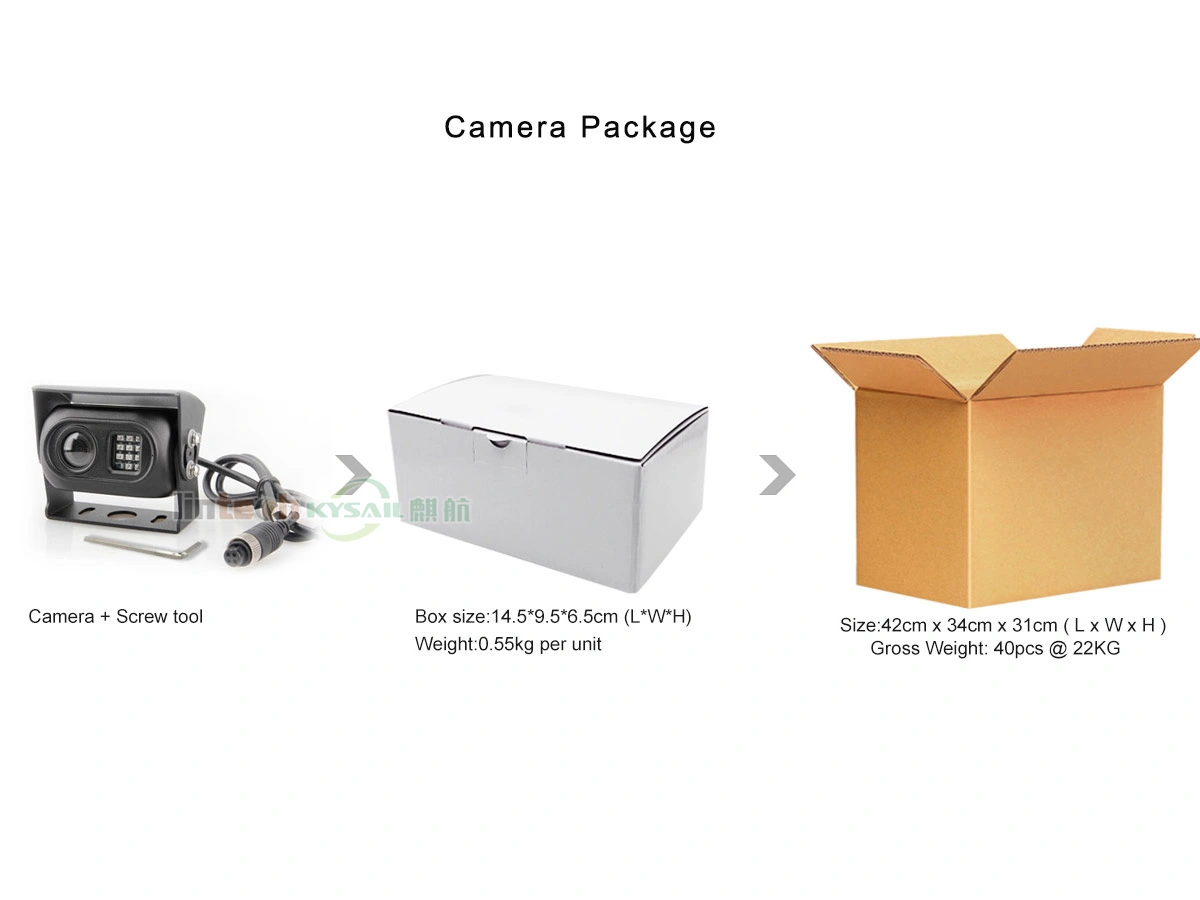

| Packing weight | 450g | |
| Dimension(WxHxD) | 96mm x 74mm x 55mm (MAX) | |
| Operation temperature | -20 ~ +70 C-degress |
