Universal Safe Driving Car Blind Spot Detection System
Model No.: LR-001
Blind spot detection system uses sensors to detect objects within a close proximity around a vehicle that are not visible to the driver and alerts the driver accordingly to avoid a collision.
A quick look at the inside and outside mirrors, perhaps even a fleeting glance over the left shoulder – and then a major fright. When there is loud hooting from your left as you pull out to overtake. Failing to see the car approaching rapidly from behind in the left-hand lane or in the blind spot next to your own car easily happens, especially in heavy traffic on multi-lane freeways or highways and in urban traffic as well.
Typical scenarios in which BSM issues a warning include:
When a passing car in an adjacent lane approaches
When a vehicle changes lanes and enters the warning zone from the side
BSM systems will not issue a warning in certain situations:
When a vehicle approaches from the opposite direction
When a car approaches from directly behind in the same lane
When passing stationary objects such as stopped vehicles, guard rails, roadway barriers, and light poles
Specification: | |
Radar Sensor | 77GHz detect range 0.4-50 meters |
Start Speed | BSDV≥15km/h / LCAV≥1km/h |
BSD System | |
LCA System | ✓ |
B-pillar same speed system | ✓ |
Two doors warnings beforeDOW open | ✓ |
Operating Voltage: | 5-24V |
Operating Voltage: | 80 degrees |
Operating Voltage: | -40~+85℃ |
Detection Reaction Time: | <100ms |
LED Indicate and Sounds Be..be..be..

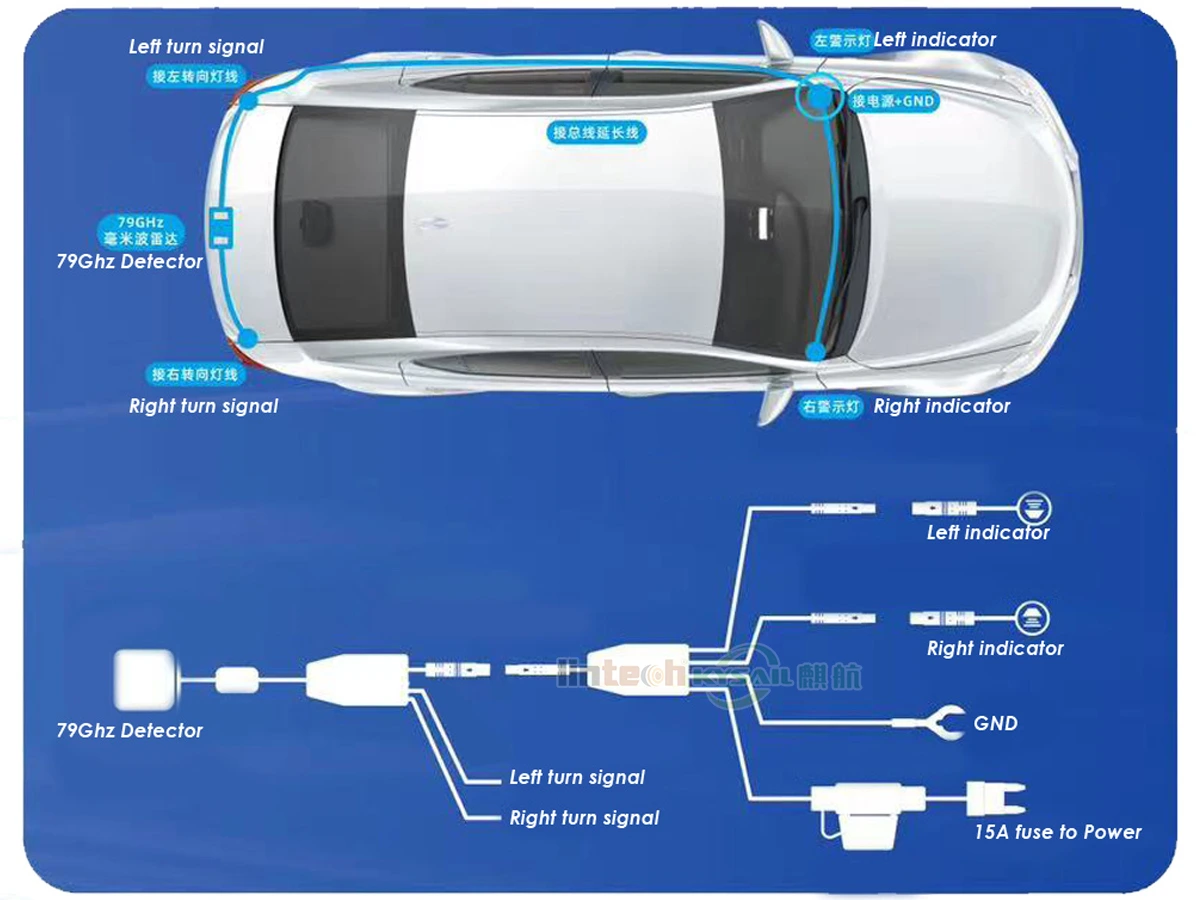

Wire Connection Chart：
Install Position and wire layout:
Radar Sensor Dimensions:

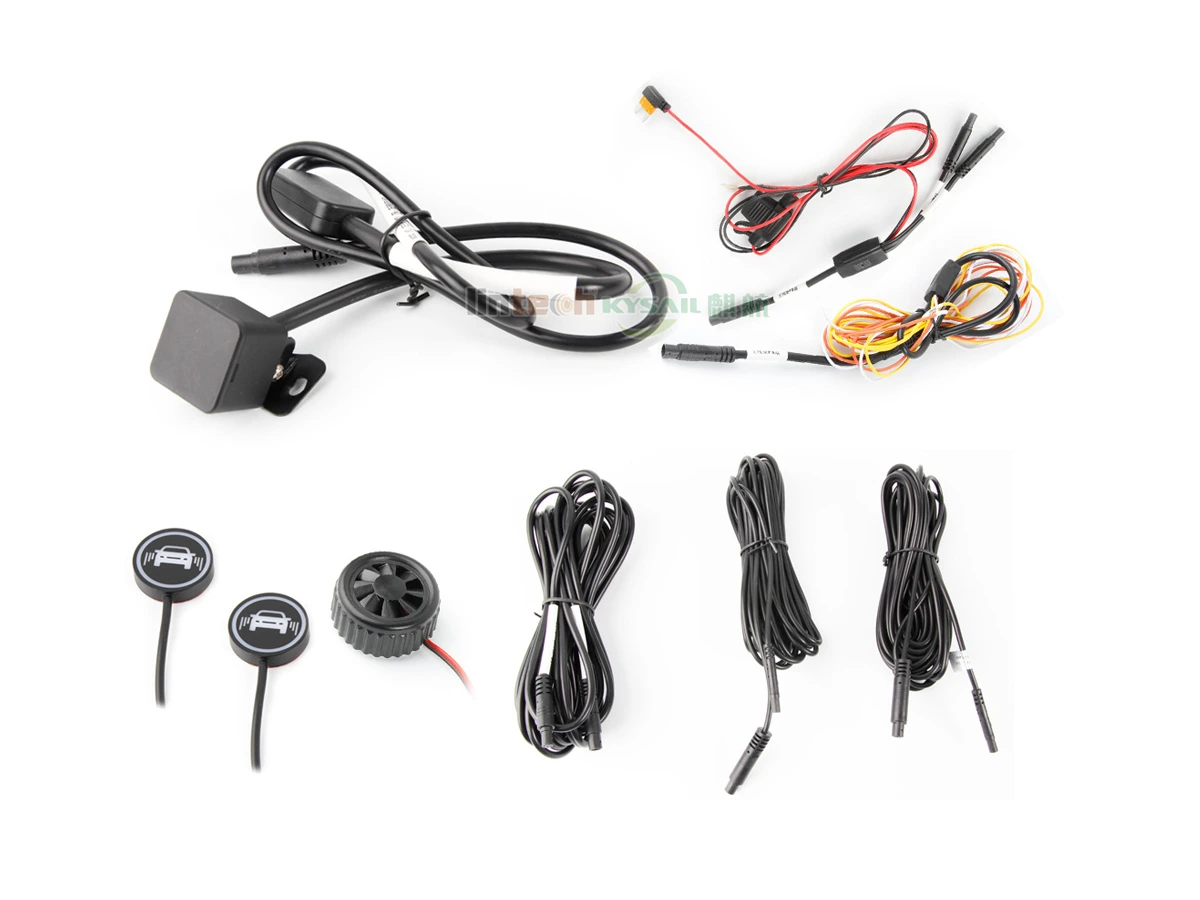

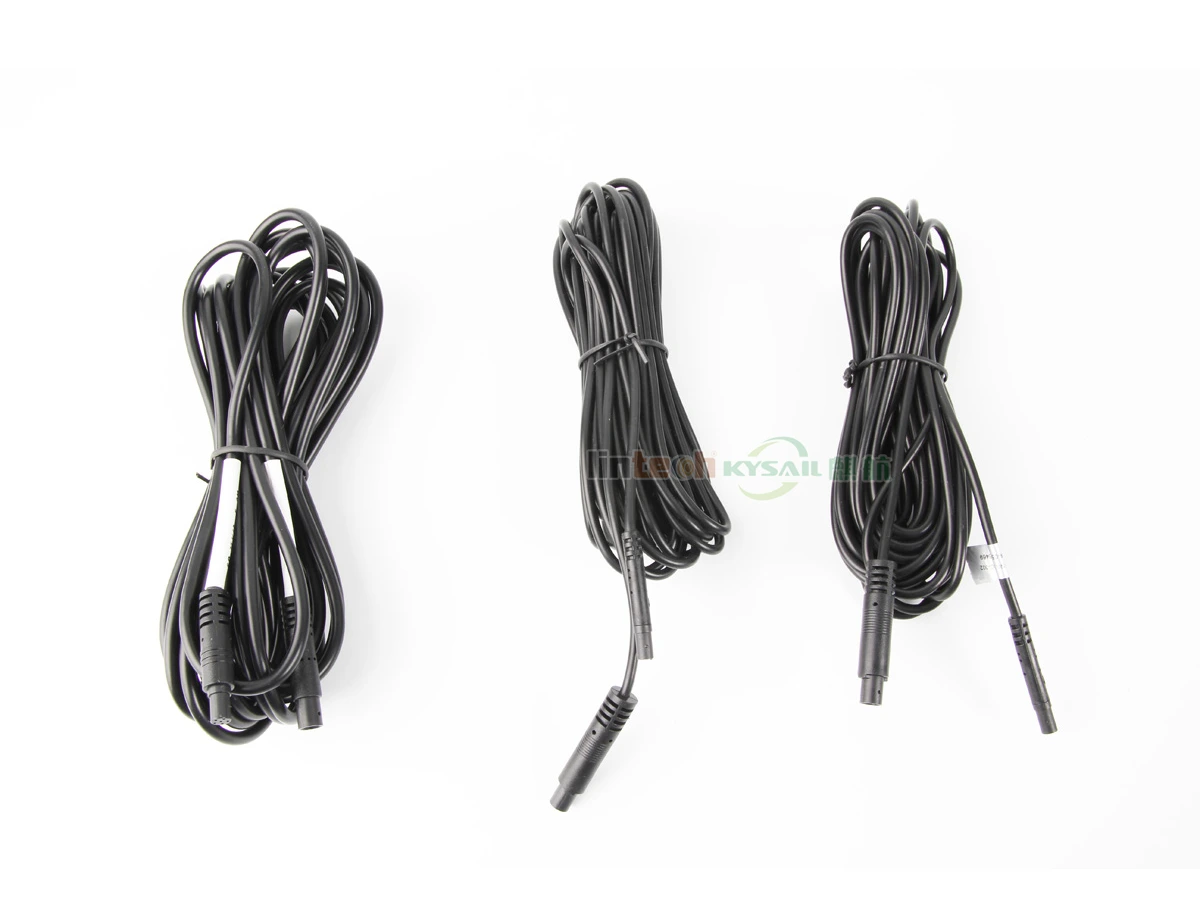

Packing List :
Screw On Fixed:

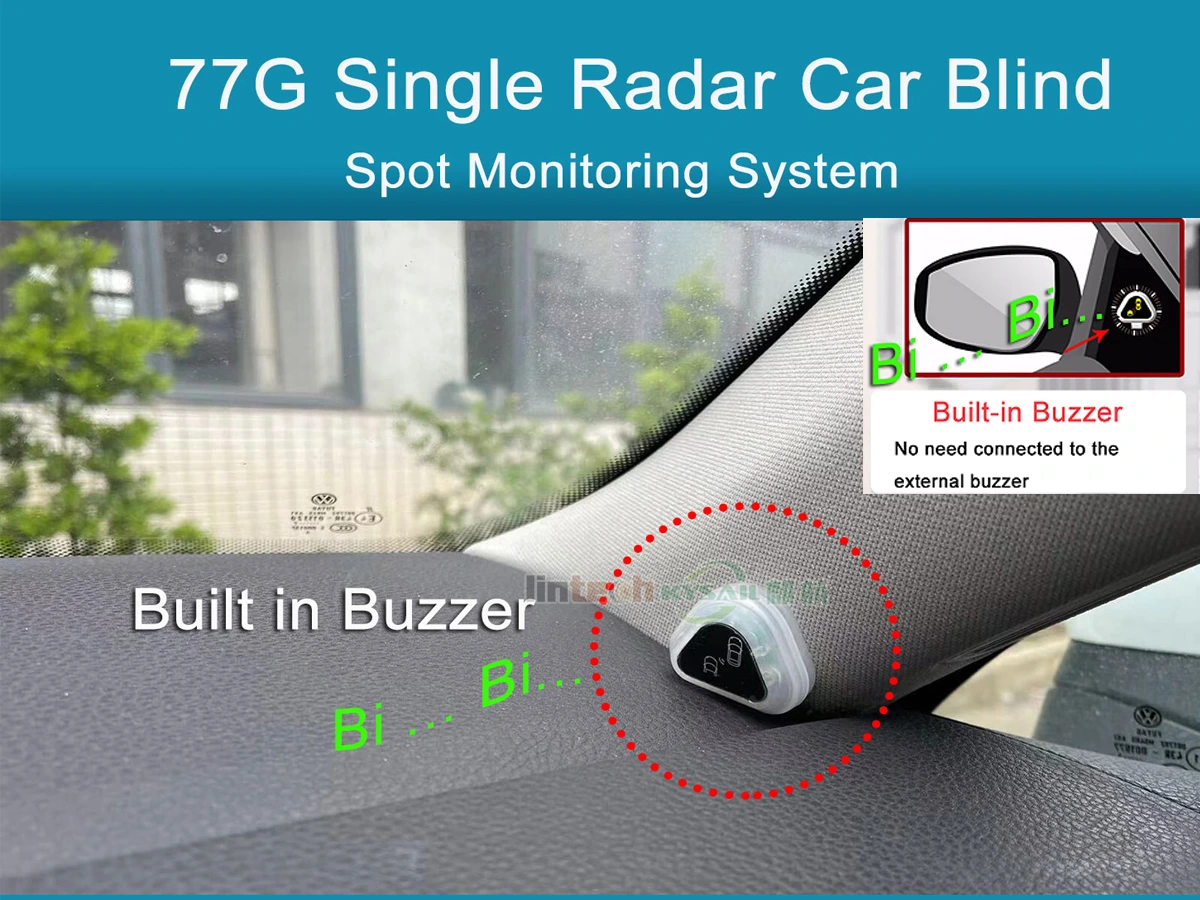

LED indicate and buzzer sound warning:
