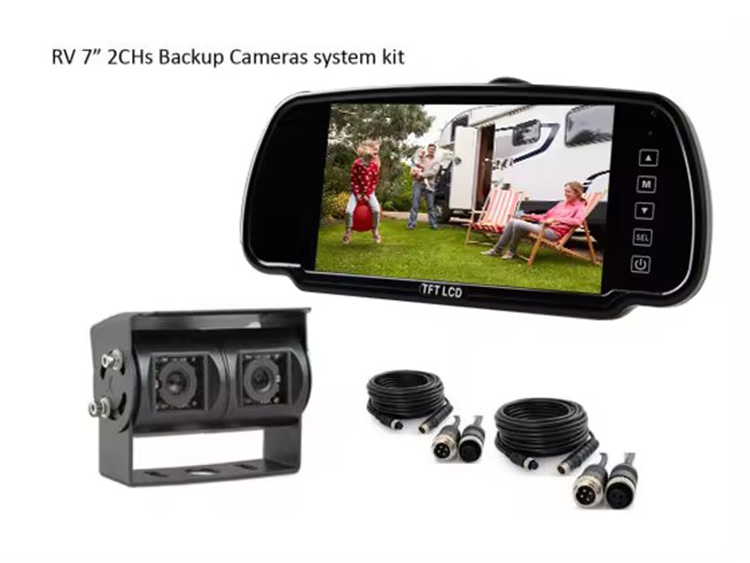

RV Motorhome 7 Inches TFT LCD Monitor Twin Lens Van Backup Dual Reverse Camera System
Model No:LW-070M-A

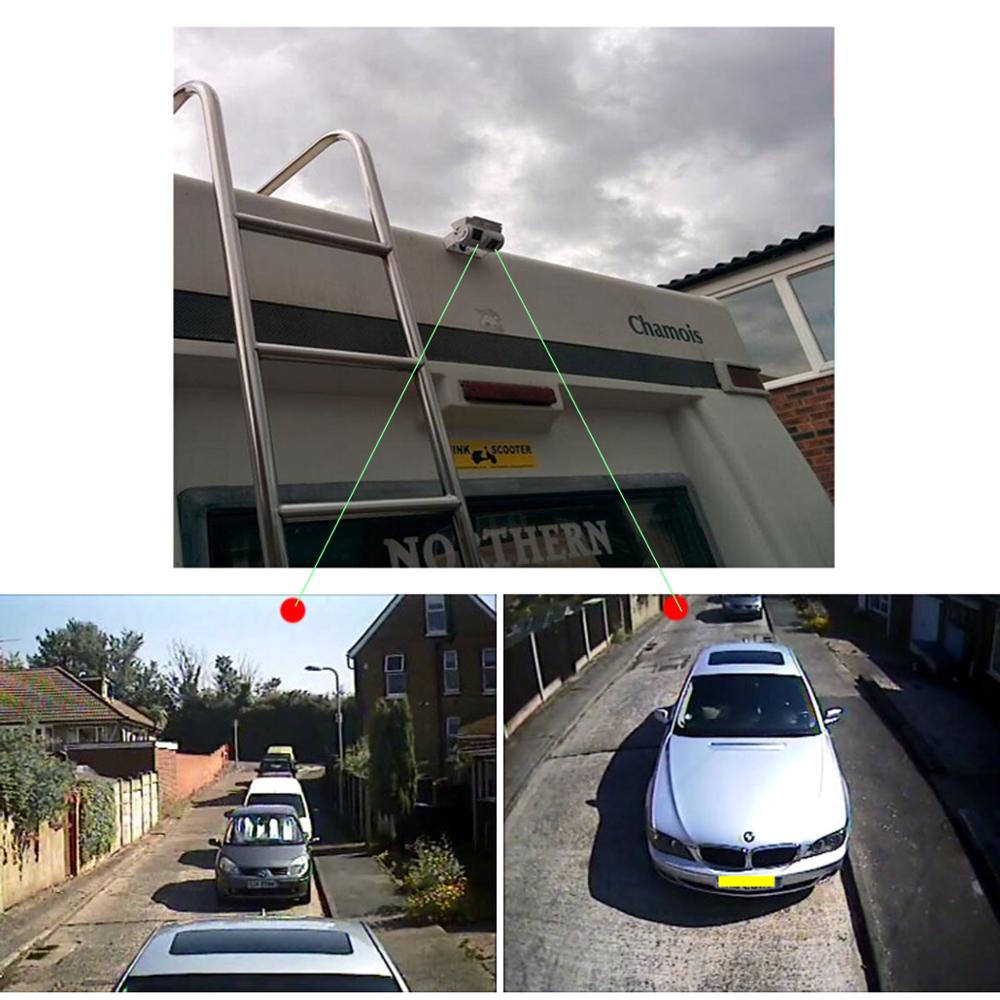

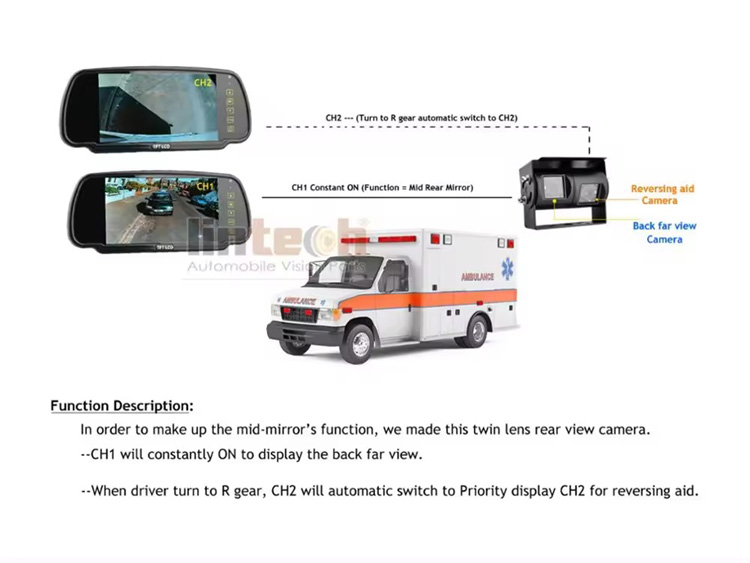

For the RV Motorhome large vehicle, a single camera can only have the reversing aid function. But in the process of driving, driver can not see through the middle mirror to know the rear situation, that’s not safety enough while driving. Therefore, the twin lens / dual-lens camera coming out to perfect solve this problem.
Monitor Features:
- High brightness 500:1(You can still see the image on the screen in the refracted sunlight.)
- 2 videos inputs.(4CHs optional if you need)
- Dightal resolution:800xR.G.Bx480
- Improved wide voltage:surpport 10~36V power input

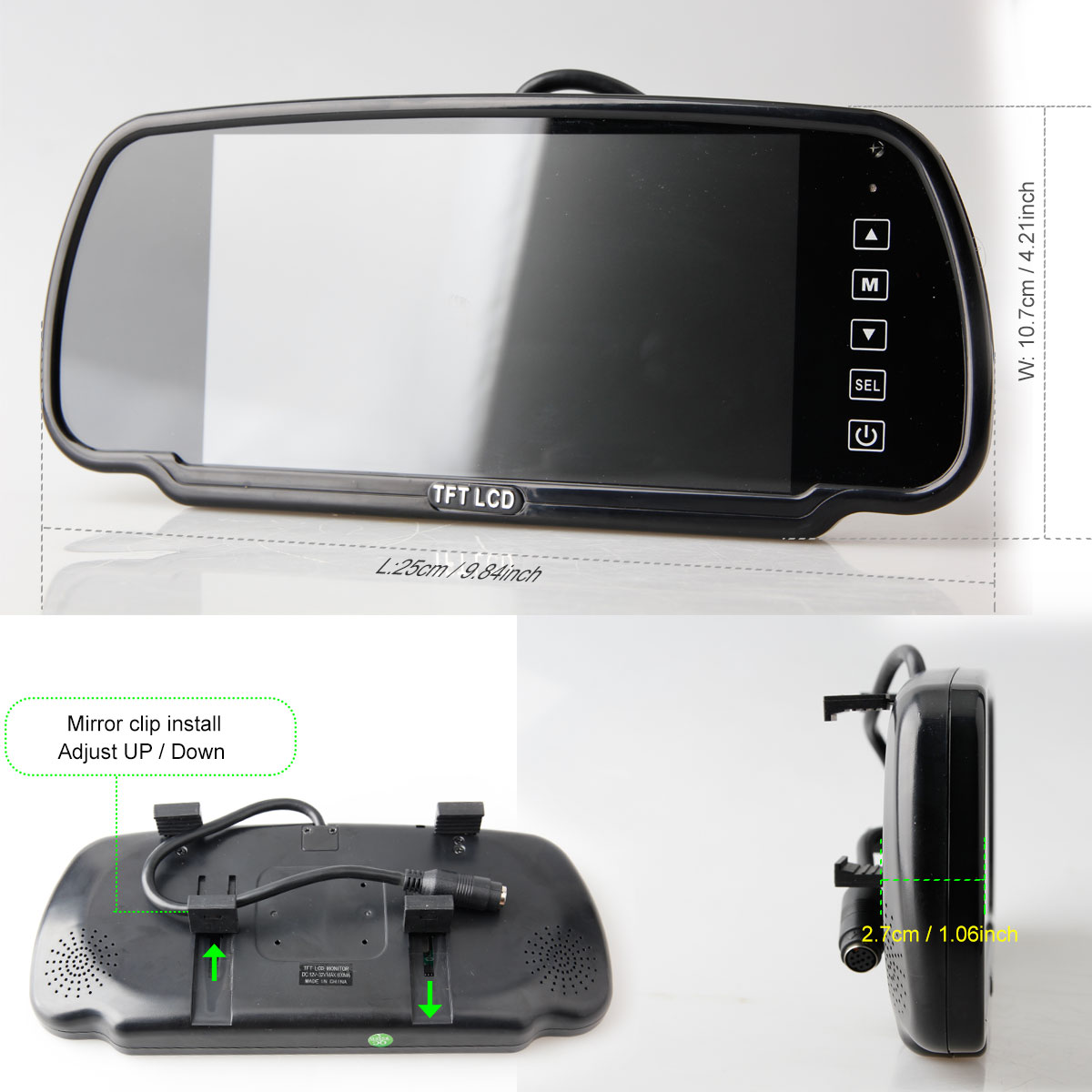

| 7 inch Rear view Mirror Car Monitor Spec: | |
| Screen size: | 7″ LCD mirror monitor |
| Brightness: | 500 (CD/M2) |
| Resolution: | 800(W) x RGB x 480(H) |
| System: | PAL/NTSC |
| Type: | Mirror monitor (16: 9) display |
| Video input: | Standard V1/V2 (V1/V2/V3optional) |
| System: | PAL & NTSC auto switching |
| Power supply: | DC 10-36V |
| Power consumption: | less than 7W |
| Operating temperature: | (-)10 to +65 C-degree |
| Storage temperature: | (-)20 to +65 C-degree |
Specification of Dual lens camera(LC-015DB):
| Type | 1080P | 960P | CMOS |
| Sensor | 1/3” APTINA CMOS | 1/3” APTINA CMOS | 1/3″ CMOS sensor |
| Resolution: | 1920*1080 (2.0M Pixels) | 1280*960 (1.2M Pixels) | N:510×492 pixels P: 500×582 pixels |
| Effective Pixels | 2,000,000 pixels | 1,300,000 pixels | 300,000 pixels |
| Lens: | 2.8mm/8.0mm | 2.8mm/8.0mm | 2.8mm/8.0mm |
| Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
| IR led: | 15 + 15pcs | 15 + 15pcs | 15 + 15pcs |
| Night Vision distance: | 15m | 15m | 15m |
| Waterproof | IP68 | IP68 | IP68 |
| View angle: | 120°/45° | 120°/45° | 120°/45° |
| Power voltage: | 12V | 12V | 12V |
| Operation Temp.: | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C |
| Heater built-in | / | / | / |
| Microphone | optional | optional | optional |
| IR cut | optional | optional | / |
