Model: LC-009D

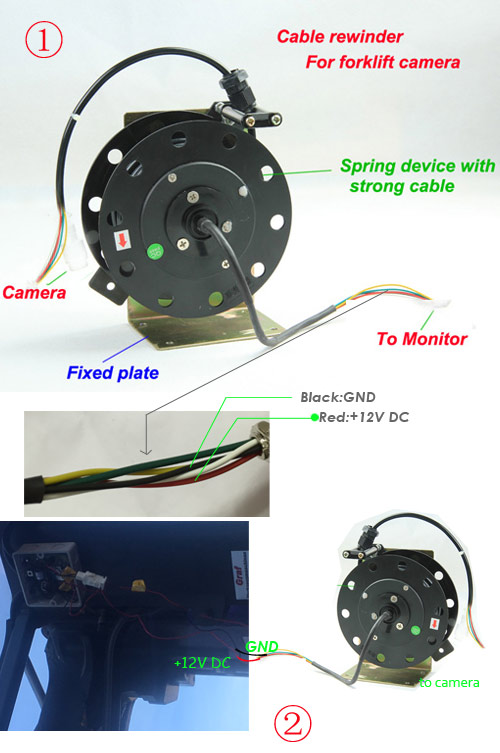

The Forklift Safe-View Camera Cable Reel is an excellent tool to power and complete the Safe-View Camera System. The Safe-View is extremely easy to install and operate.

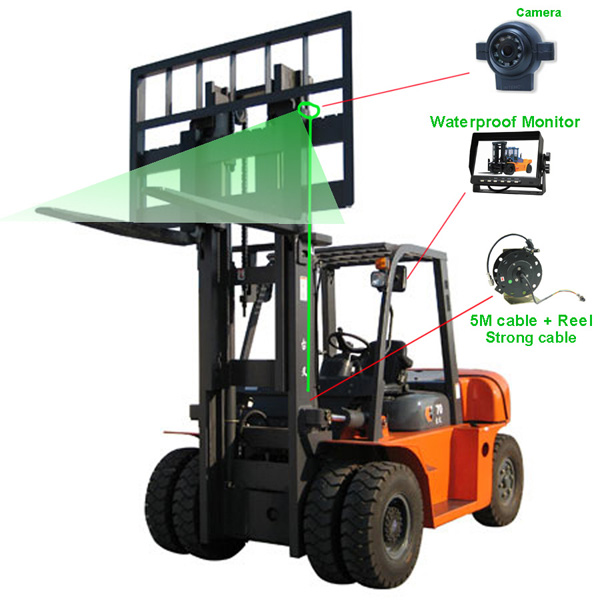

Front view camera fixed on the fork moving up / down, this cable rewinder will can release / rollback the wire.

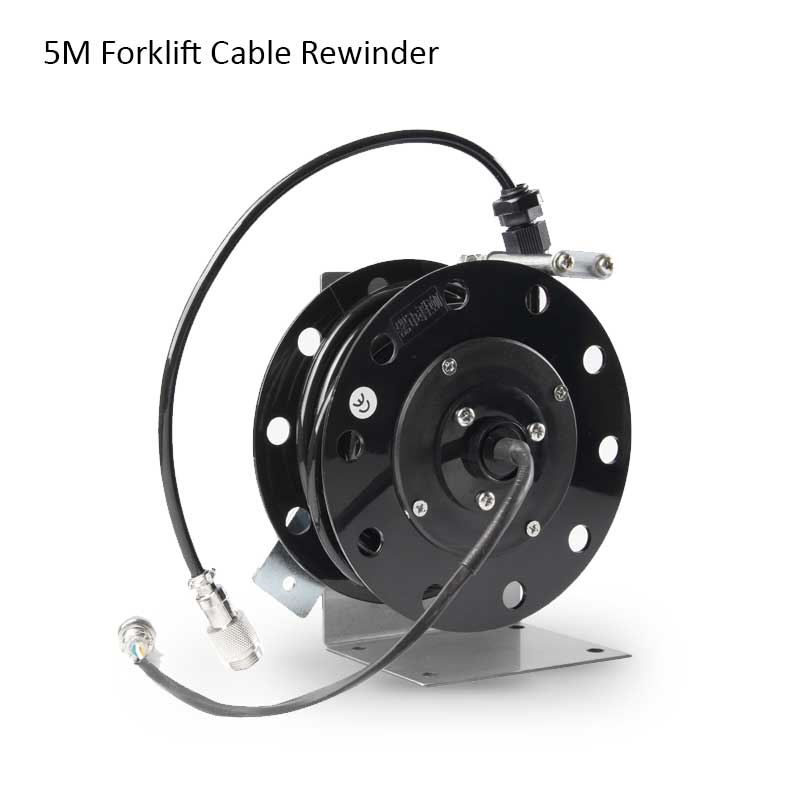

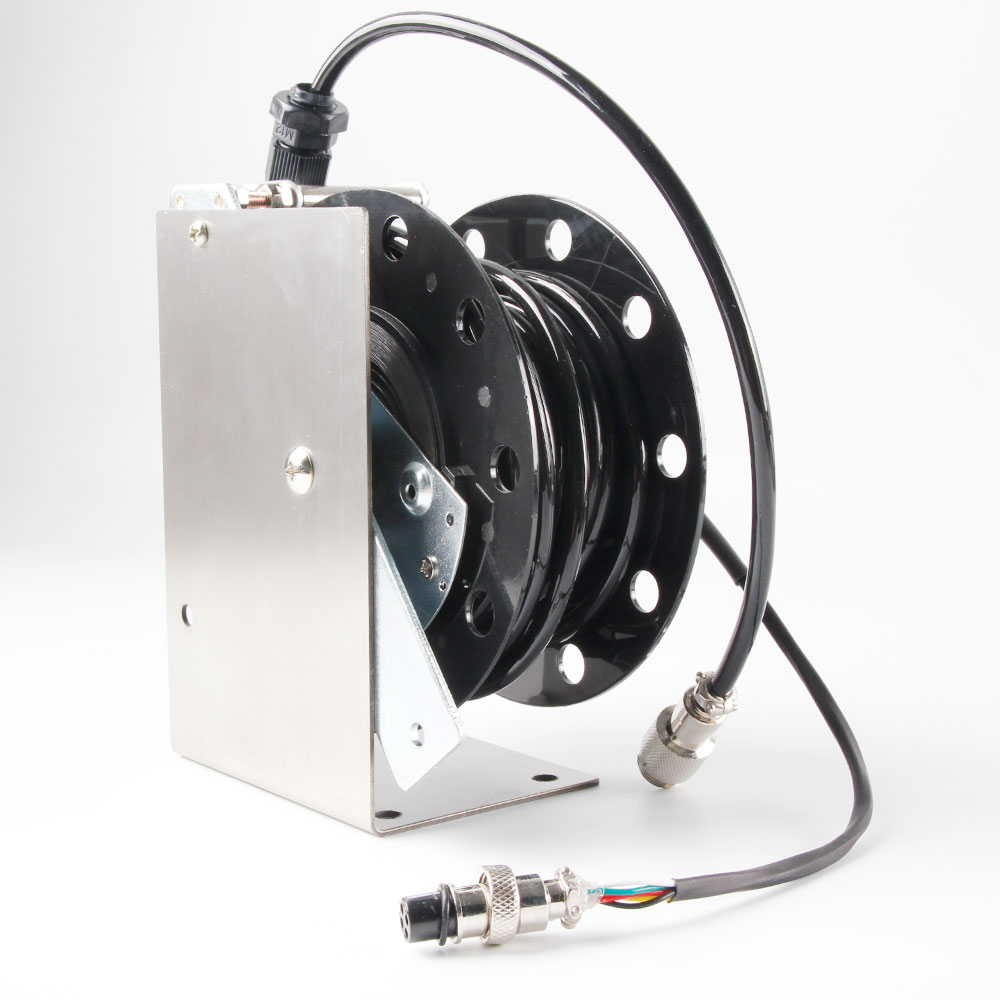

This 5M (16ft) length cable rewinder unit is a new product from kysail, to provide power + video for forklift front view solution.
5M Cable Reel Features and Benefits:
- Can be mounted anywhere on the forklift
- Easy installation and operation
- Operating Temperature: -4F to 155 F RH 90%
Car Front and Rear Camera Features:
–This compact ball camera can be applied at front, corner and/or back of the vehicle
–Rubber bracket to prevent signal interference between camera and vehicle
–The automatic day/night sensor and infrared LEDs to provide clear image in dull condition
Specification:
| Name | Car front and rear camera |
| Waterproof IP rating | IP69K |
| Images Sensors | COLOR CCD |
| TV System | PAL/NTSC |
| Effective Pixels | 512*582 pixels/512*492 pixels |
| Sensing Area(mm) | 4.9X3.7 |
| Min.illumination(Lua/) | 0LUX |
| Horizontal Sync.Frequency(KHZ) | 1/50 or 1/60~1/10,000 |
| Vertical Sync.Frequency(HZ) | 15.625/15.734 |
| Video Output | 1Vp-p,75 Ohm |
| BLC | Auto |
| S/N ratio | Better than 48dB |
| Lens | F=2.8mm/F=2.0 |
| Lens Angle(Deg.) | 120 Deg |
| Current Consumption(mA) | 120mA |
| Power Supply(DCV) | 12V |
| Operating Temperature(Deg.C) | -20~+70(RH95%Max.) |
| Storage Temperature(Deg.C) | -40~+80(RH95%Max.) |
More details:

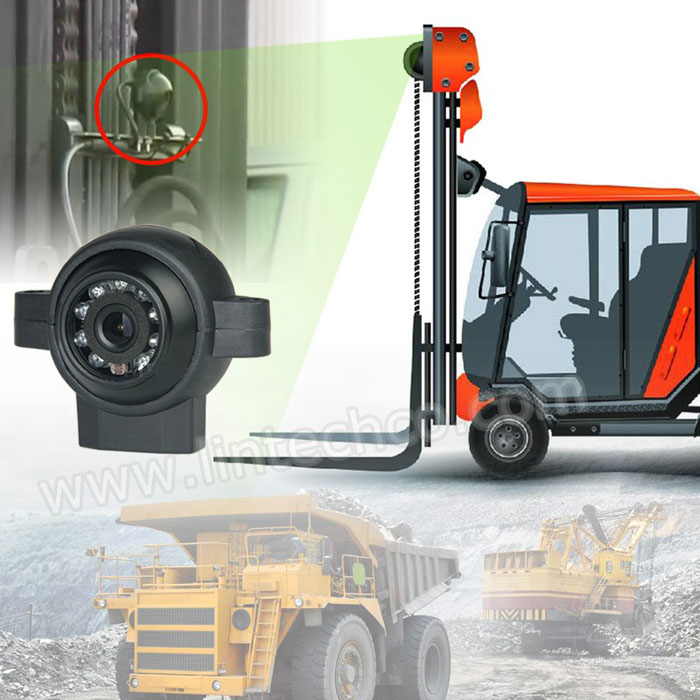

Car Front and Rear Camera for Heavy Equipments,Farm,Agriculture Equipment,Fork-lifts, Airport Vehicles,Port Crane Vision solutions. Always Positioned Correctly, No Matter What The Location.
Built in 9 pcs Ultra Bright IR LED’s for enhanced low light picture quality. Aluminum Shell Side Camera IP69K Waterproof and 10G Vibration, easy to install.

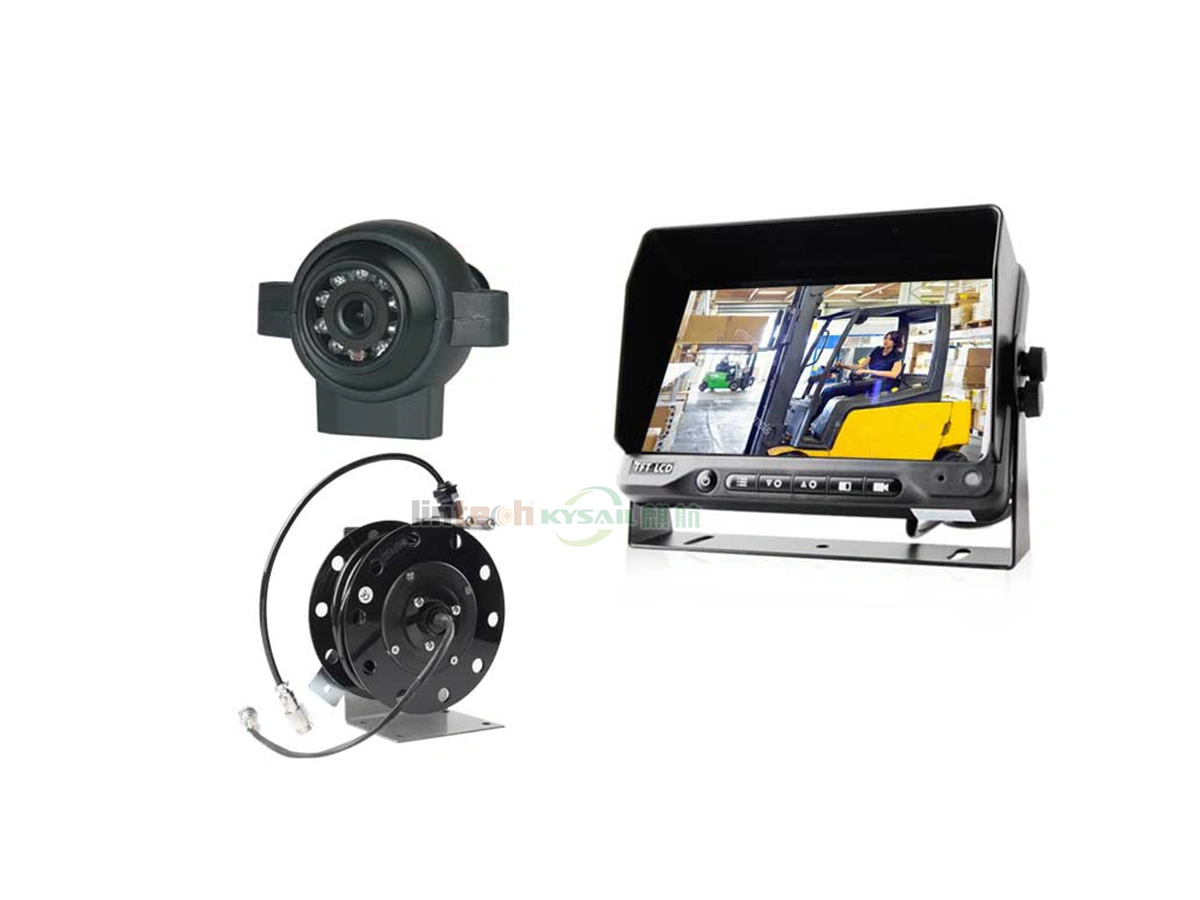

Packing include:

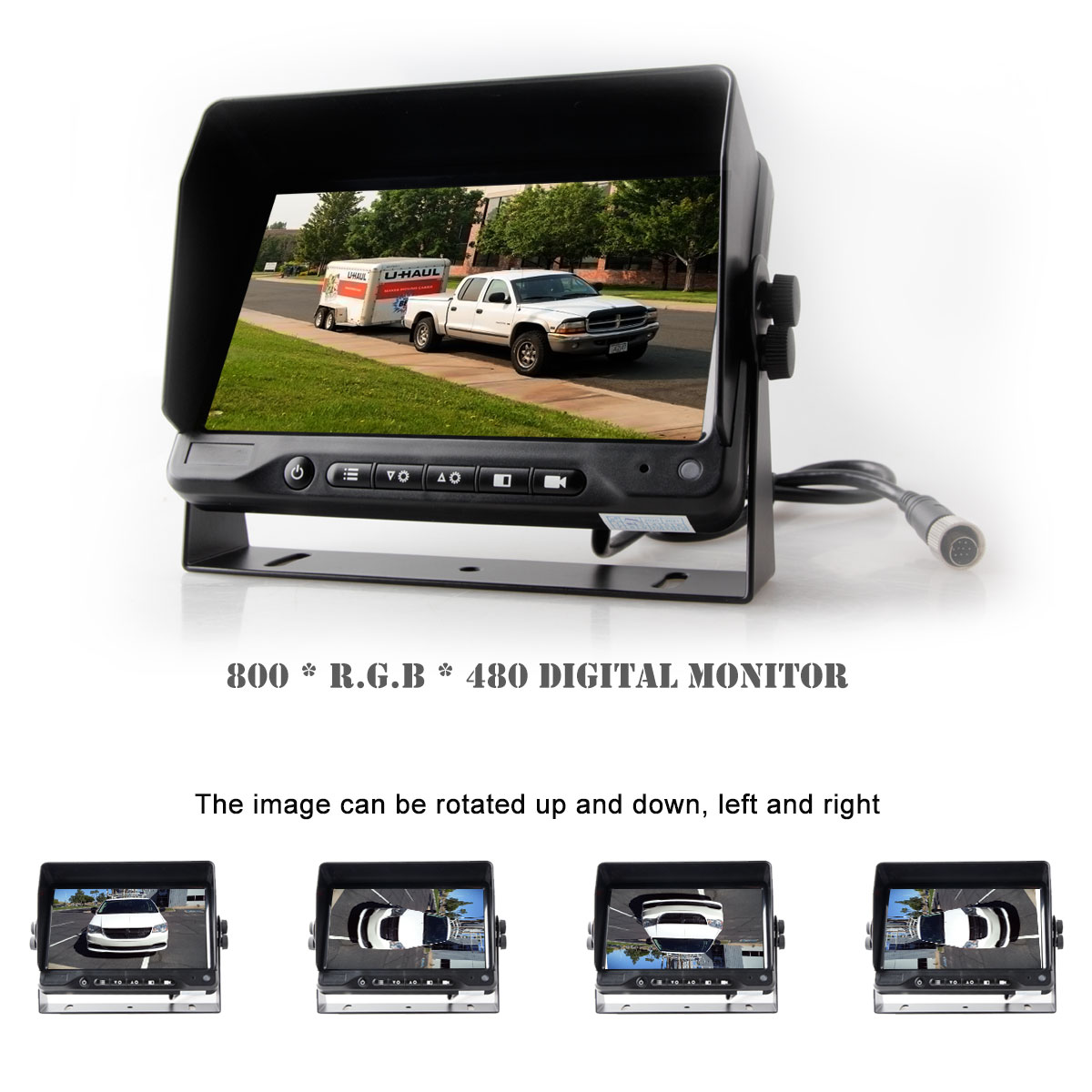

1pcs x 7 inch Monitor
1pcs x 5m cable reel
1pcs x Front camera
1pcs x installation screws
