LED Display 4 Probes Forklift RV Truck Lorry Parking Sensor Kit
Model No.: T-R4-A
4 sensor system, double CPU and advanced chipset for enhanced coverage and detection
With digital colored LED display (number & light).
Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.
Step by step alarm with black and white display
The detector of the radar perfectly matches the car body.
4 Parking Sensor Car LED Reverse System Backup Radar
Features:
* 4 sensor system, double CPU and advanced chipset for enhanced coverage and detection
* With digital colored LED display (number & light).
* Help to prevent dangerous and costly collisions, enhance the safety features with simple installation.
* Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.
* Step by step alarm with black and white display
* The detector of the radar perfectly matches the car body.
* Adaptive environment technology.
* Anti-freeze and rain proof.
* Easy to install.
* A saw drill head included.
Specifications:
| Rate voltage: | 12V-24V DC |
| Rate current: | 100mA – 300mA |
| Power: | 3.6W |
| Detecting distance: | 0.3 – 3.0m (5m Customized) |
| Ultrasonic frequency: | 40KHz |
| Control moudle working temperature: | -30 – 80 celcius degree |
| Display working temperature: | -30 – 70 celcius degree |
| Detecting angle: | H >60°C, V > 60°C |
| Microphone sensitivity: | -60db |
| LED display size: | 78*19*30mm |
| Main control box size: | 150*100*46mm |

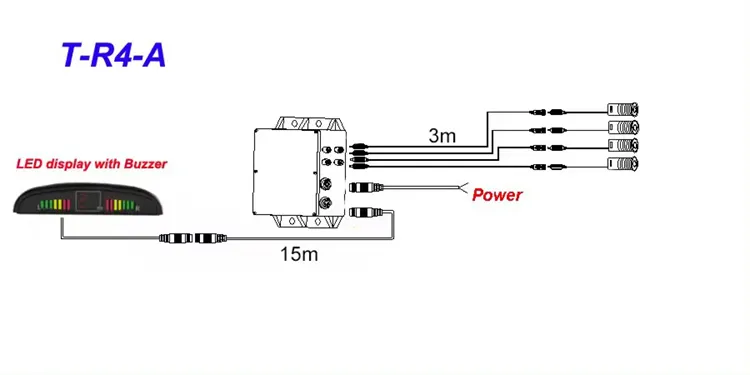

Connection Chart:
Package Content:
1 x Main Control Box
1 x LED Display Indicator(with 15m wire)
4 x Parking Sensors with 3m wire
1 x Saw drill head
1 x Power Cable
2 x Double Side Sticker
1 x User manual
