Modeo NO.:LW-070-360
FEATURES:
– With our Top view 360 degrees camera solution you always have and in one instant fully top view camera overview around the vehicle, so no more dead corners and always a quick full overview for optimal safety! by preventing accidents and thereby damage and stoppage, the addition of a top view camera system also increases efficiency.

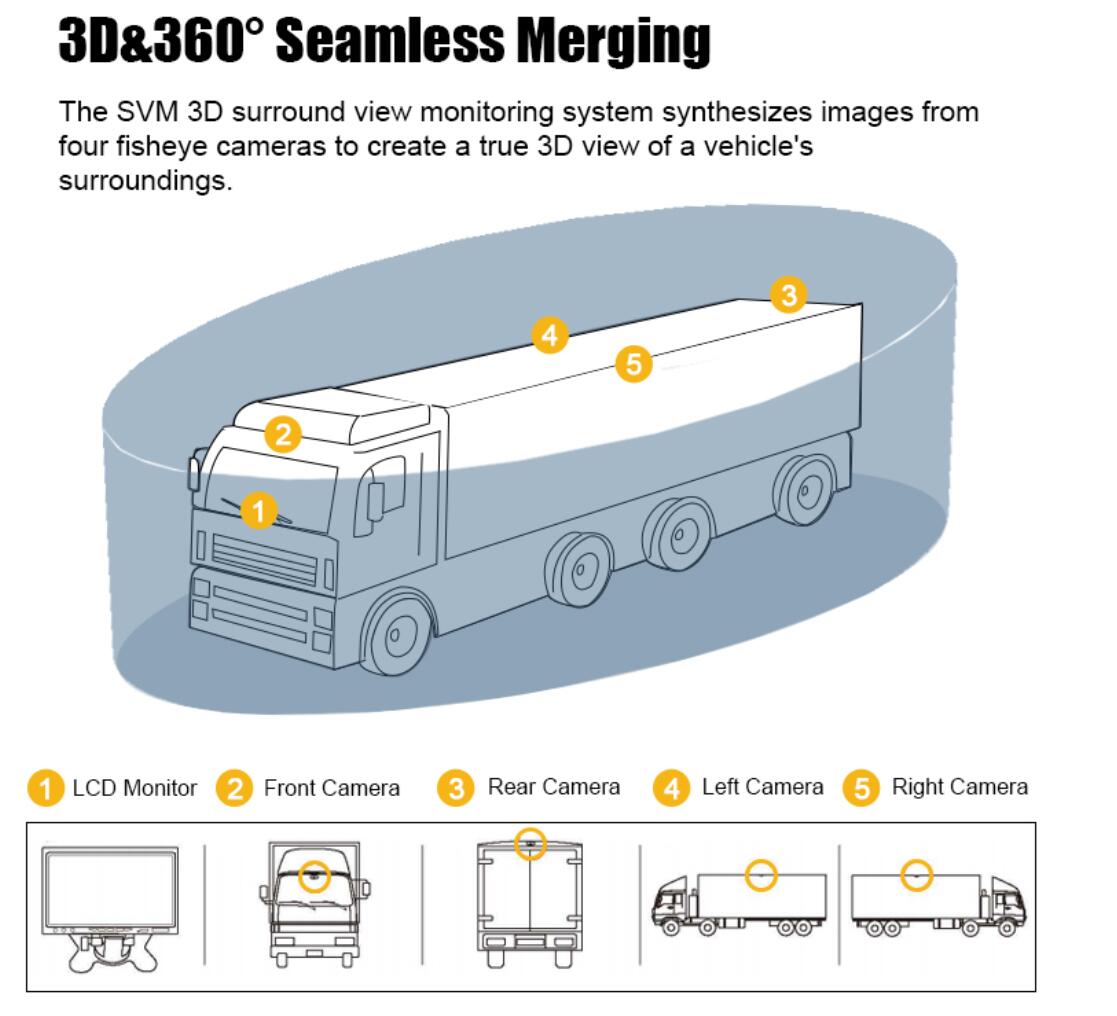

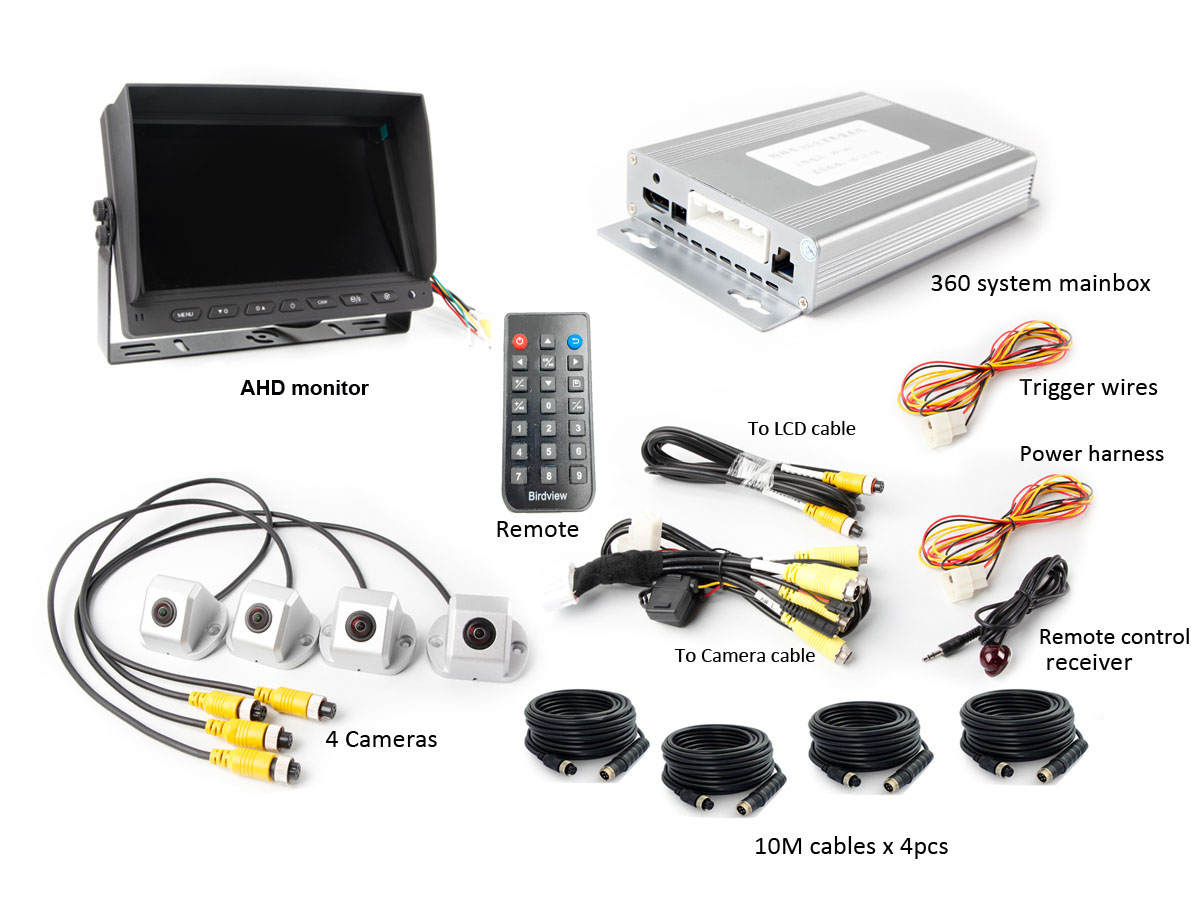

– 4 ultra wide cameras provide a complete view around vehicle. System stitches views together to simulate a bird’s eye view of vehicle.
– Intelligent Camera: 4 AHD 1080P Horizontal 180° wide angle camera, Potosensitive, Super night vision without light, Shockproof, Waterproof.
– Vehicle Compatibility: Power supply 9-36V DC; for all kinds of vehicles, such as RV, Truck, Trailer,
– Video output with AHD1080P / 720P or regular CVBS signal, compatible market CVBS (RCA input port) monitor.

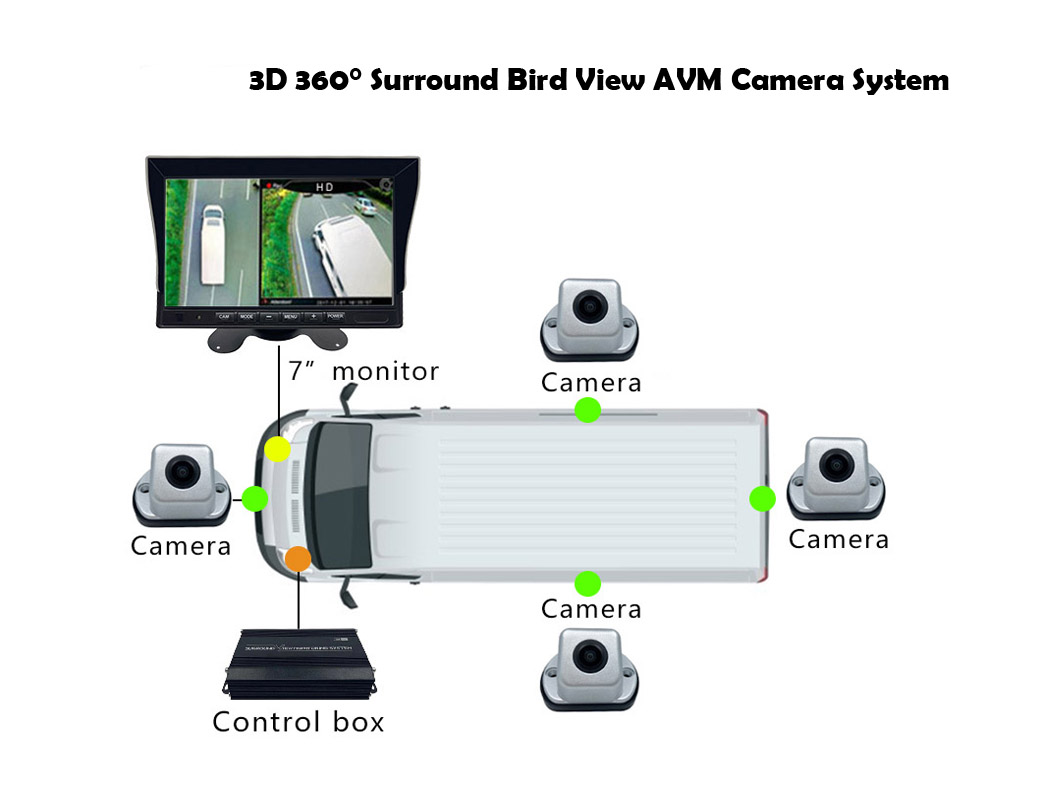

3D 360 Degree Surround Bird View AVM Camera System for cargo Vans
With our 360 Surround Bird View camera solution, you always have and in one instant fully top view camera overview around the vehicle, so no more dead corners and always a quick full overview for optimal safety!
With our 360 Surround Bird View camera solution, you always have and in one instant fully top view camera overview around the vehicle, so no more dead corners and always a quick full overview for optimal safety!
by preventing accidents and thereby damage and stoppage, the addition of a top view camera system also increases efficiency.
Specification:
Video output | AHD 1080P / 720P/CVBS |
View Angle | 120°-170° |
Camera input | 4-channel |
Power Consumption | 9W(panoramic mode) 10.5W(recording mode) |
Operating voltage | 9.5-36V |
Camera lens angle | diagonal 202° |
Camera IP rating | IP69K |
Camera Resolution | AHD 1080P |
Storage Temperature | -40ºC~+85ºC |
Working Temperature | -20ºC~+70ºC |
Monitor Resolution | Digital 800*480 / AHD 1024*600 optional |
Screen size | 7 inches |
