Brake Light Reversing Camera Kit With 7 Inches Mirror Monitor Reverse Camera for Crafter 2017-2018
| Model No: LW-009C3-1 |
Features:
— 6pcs Built-in night vision IR LEDs
— 160 degree viewing angle
— 12V DC with 24Voptional
— CE,FCC,RoHS,E-mark E9 Certification

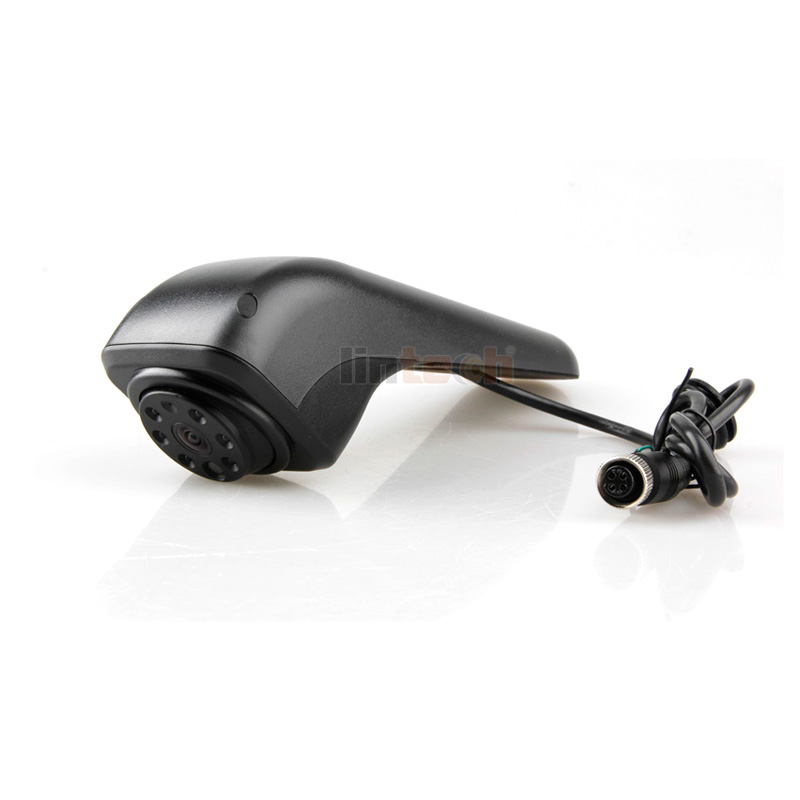

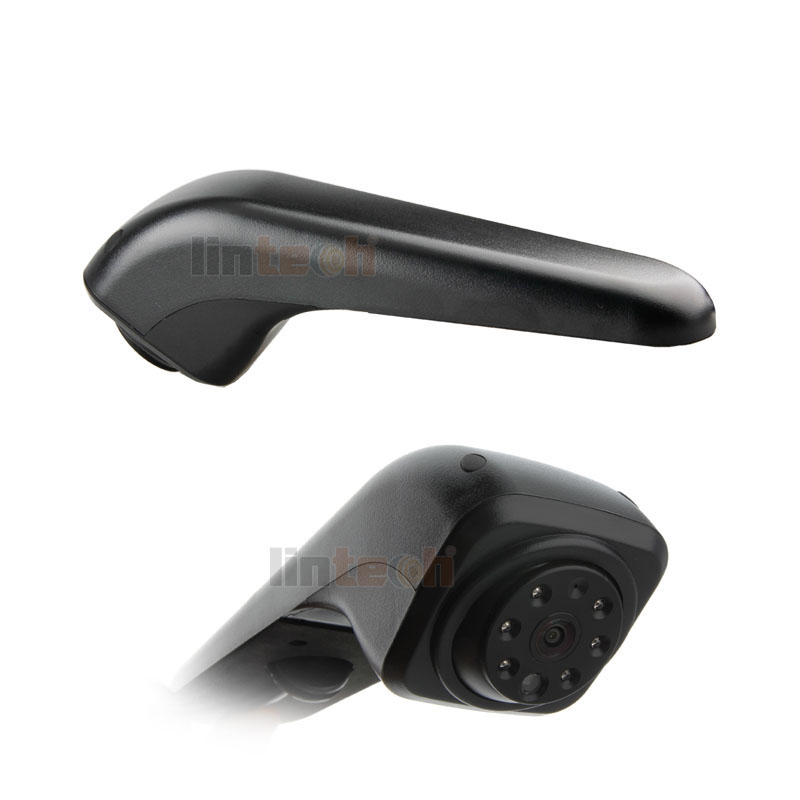

Specifications of VW Crafter Camera:
| Type | CRAFTER van brake light camera | ||
| Sensor | 1/3 NVP SONY CCD | 1/3 CMOS 3089 | |
| Resolution: | N:976×494 pixels P: 976×596 pixels | 720(H) x 480(V) | |
| TV line | 700 | 600 | |
| Lens: | 2.6mm | 2.6mm | |
| Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | |
| IR led: | 6pcs | 6pcs | |
| Night Vision distance: | 35ft | 35ft | |
| Waterproof | IP68 | IP68 | |
| View angle: | 160° | 160° | |
| Power voltage: | 12V | 12V | |
| Operation Temp.: | -20°C~+70°C | -20°C~+70 | |
Note:

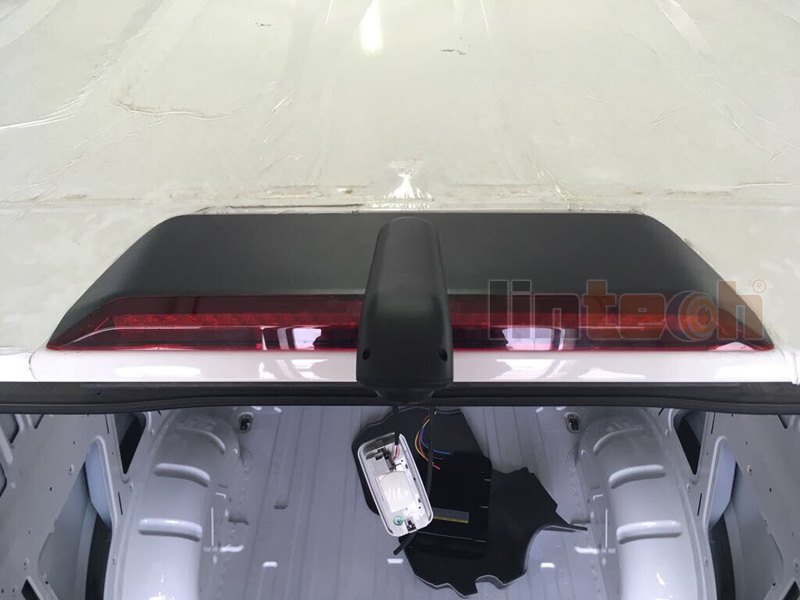

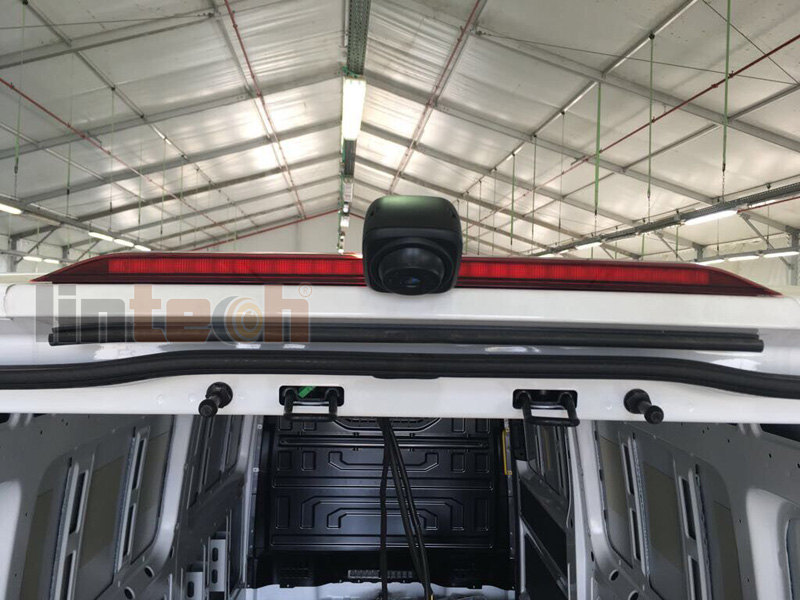

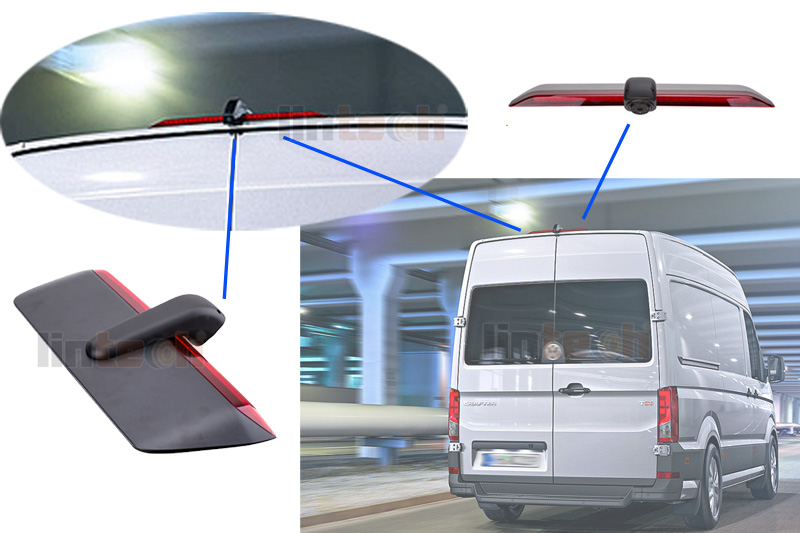

This camera special designed for VW Crafter brake lights housing (Black part) mounted, users need to take down the original brake lights housing, and use our drills (bracket tools) to install this camera part step by step according to the User guide.
Estimate takes 1~1.5 hour to mount this camera.

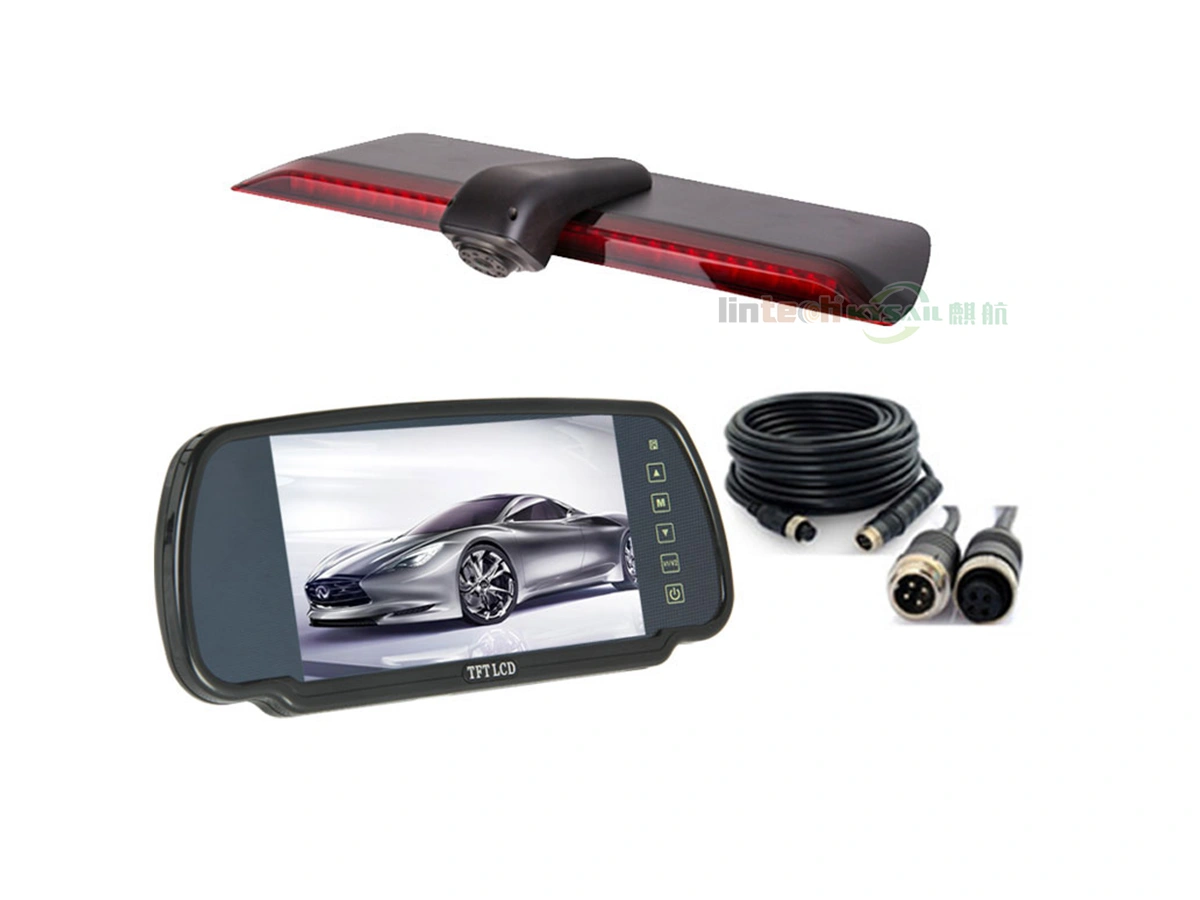

VW Crafter Camera packing detail:
1pcs x Camera for VW Crafter van;

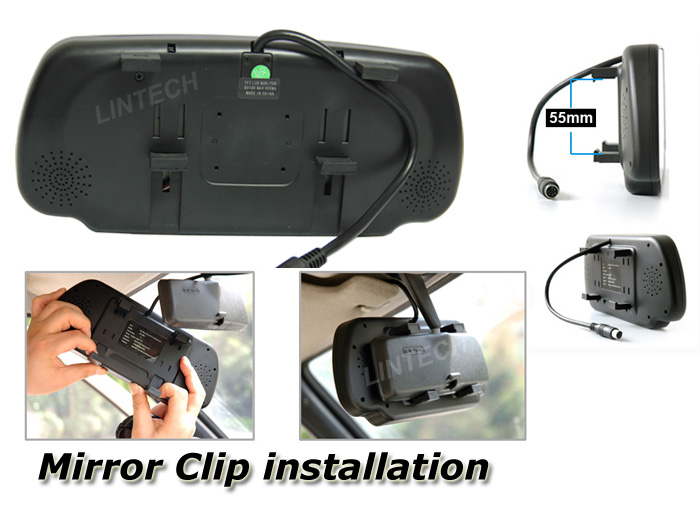

1pcs x 7″ Mirror LCD Monitor;
1pcs x Extension cable 10m;
1pcs x RCA to 4-Pin connector cable;
1pcs x Installation user guide manual;
1pcs x Drill (boring crown);
1pcs x Fixing screws;
1pcs x Iron plate.
