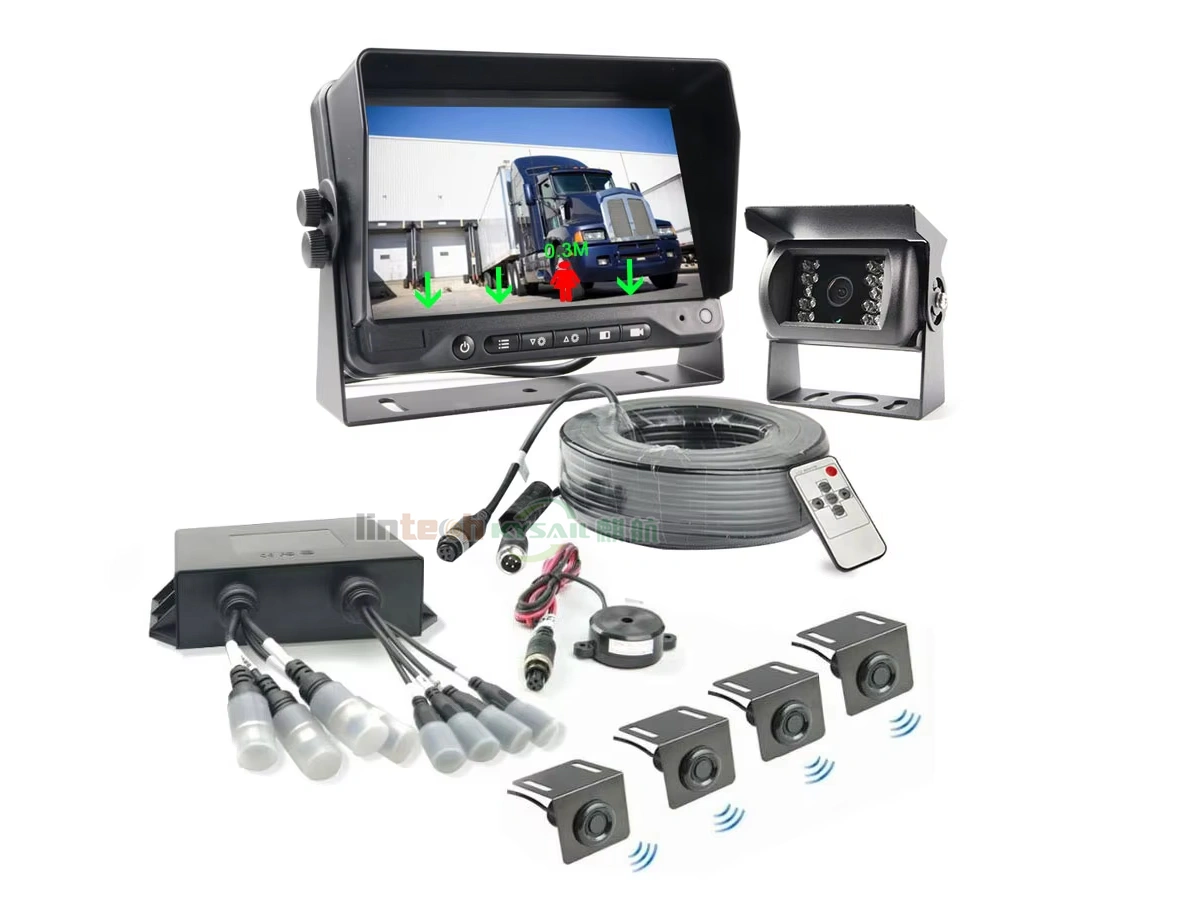

Parking Sensor and Camera Monitor Fusion System for Truck with 4 Waterproof Probes
Model: T-R4-B
Why do we need to install such a reverse sensor system?
Increases safetyThis truck reverse parking system helps to provide increased safety for truckers, pedestrians when reversing. The radar system can detect small children and low walls as well. Not just for truckers but for all drivers out there.
Does the monitor have parking guide line on and off?
Yes, monitor with Parking Line Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely.
What is the sensing distance of the radar sensor?
The monitor with buzzer can help or guide you on the distance from 0.3m to 5M, built-in parking lines with different range distance alarm. Not just that it also has 4 Ultrasonic Sensors to be installed at the rear bumper of trucks, trailers, caravan or cars and works automatically when reversing. This system has Double CPU and advanced chipset for enhanced coverage and detection.

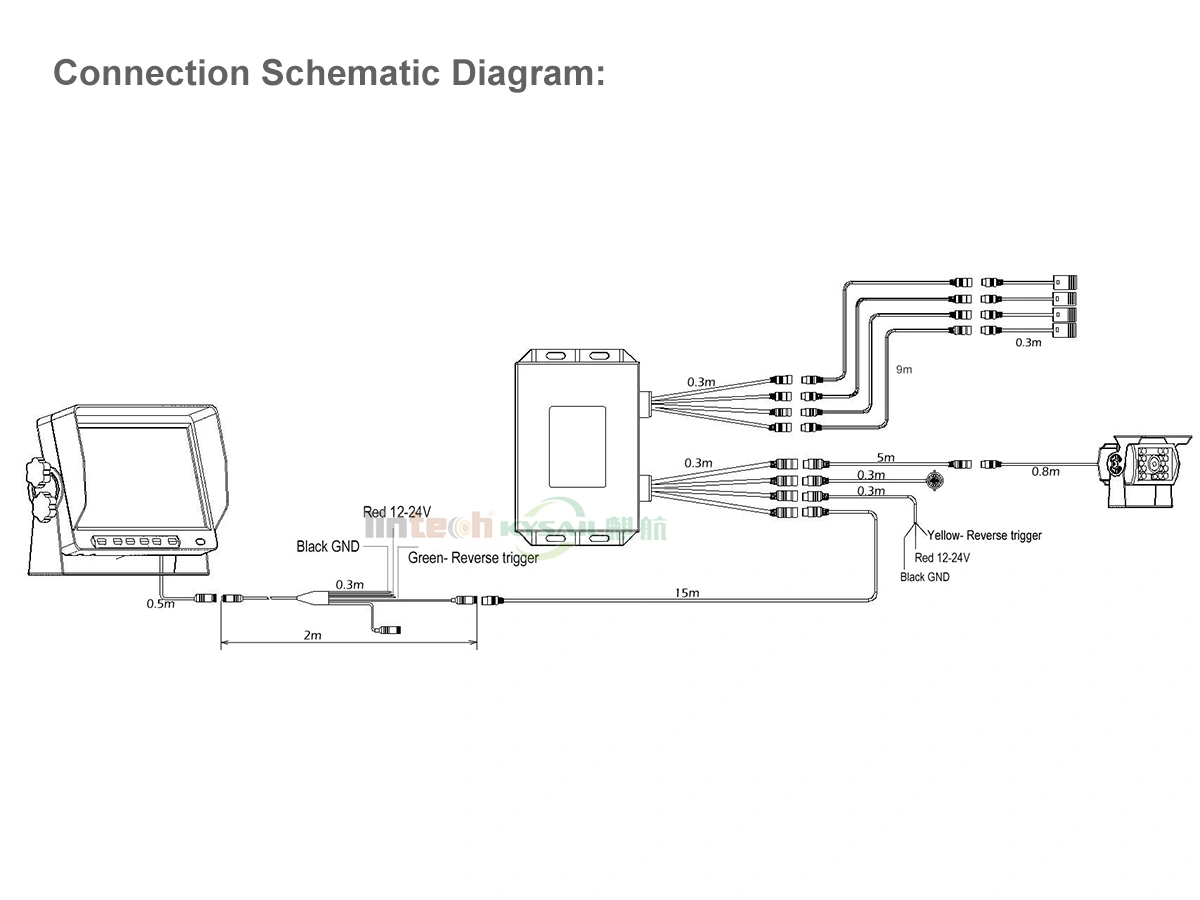

Wire connection Chart:
Sensor Features:
1. Lightning protection anti-interference host (12-24 VDC)
2. With buzzer BI..BI..BI.. When backup vehicle, The volume is not less than 100 db.
3. Monitor direct connection control box, cable length without being limited by the car.
4. Distance and image of camera will display on the Screen

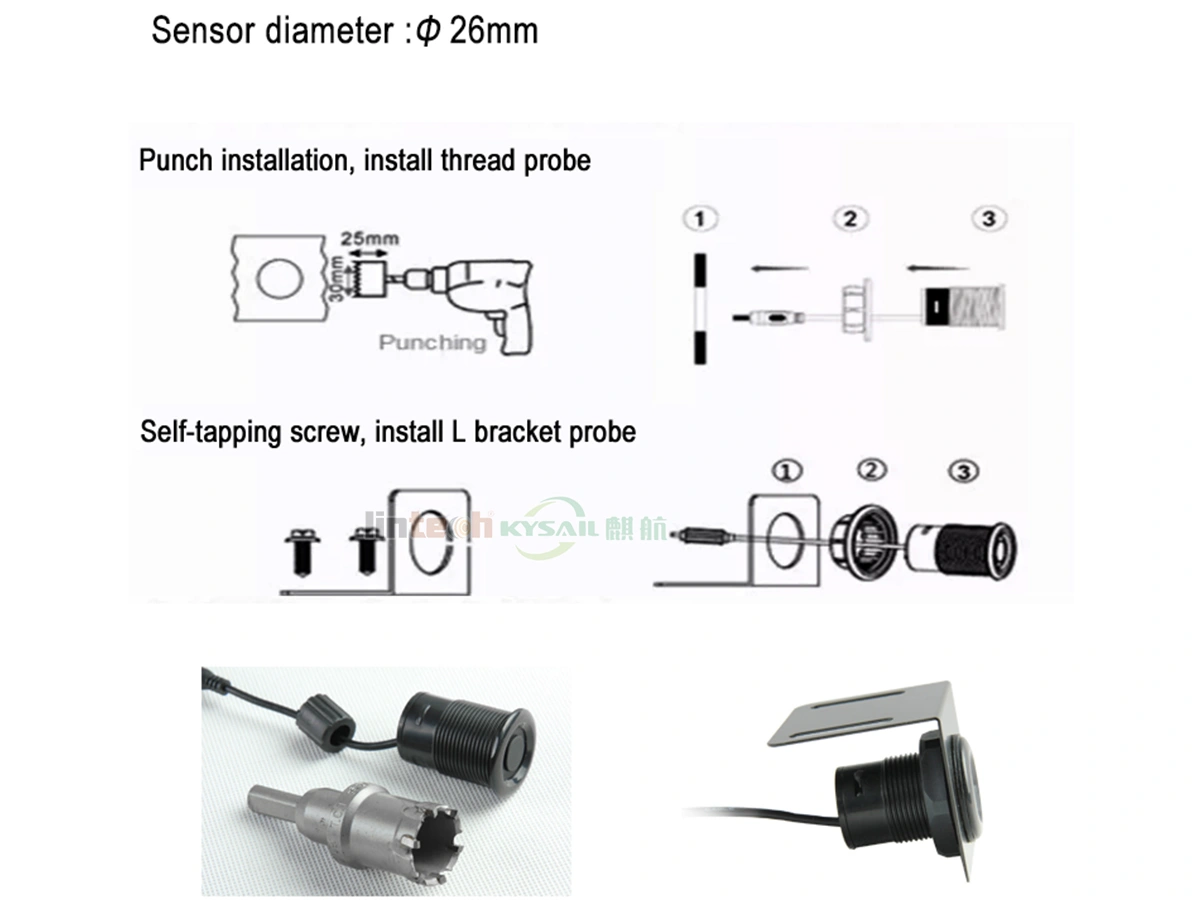

5. Style probe: Bracket screws or punch probe
6. Probe special waterproof design, level of waterproof IP67.
7. Lightning protection design, containing 600 w TVS diode.
8. 7 inch TFT lcd monitor, CMOS sensor camera waterproof rate IP69K
9. Reversing camera system+parking sensor kit ( Show the distance on the display)
10.The sensor installation interval of MAX 20cm is most suitable
SPECIFICATIONS:
1) 4 probe reversing radar system, applicable to all the large vehicles;
2) When vehicle starts to reverse, system start working, or keeping work;

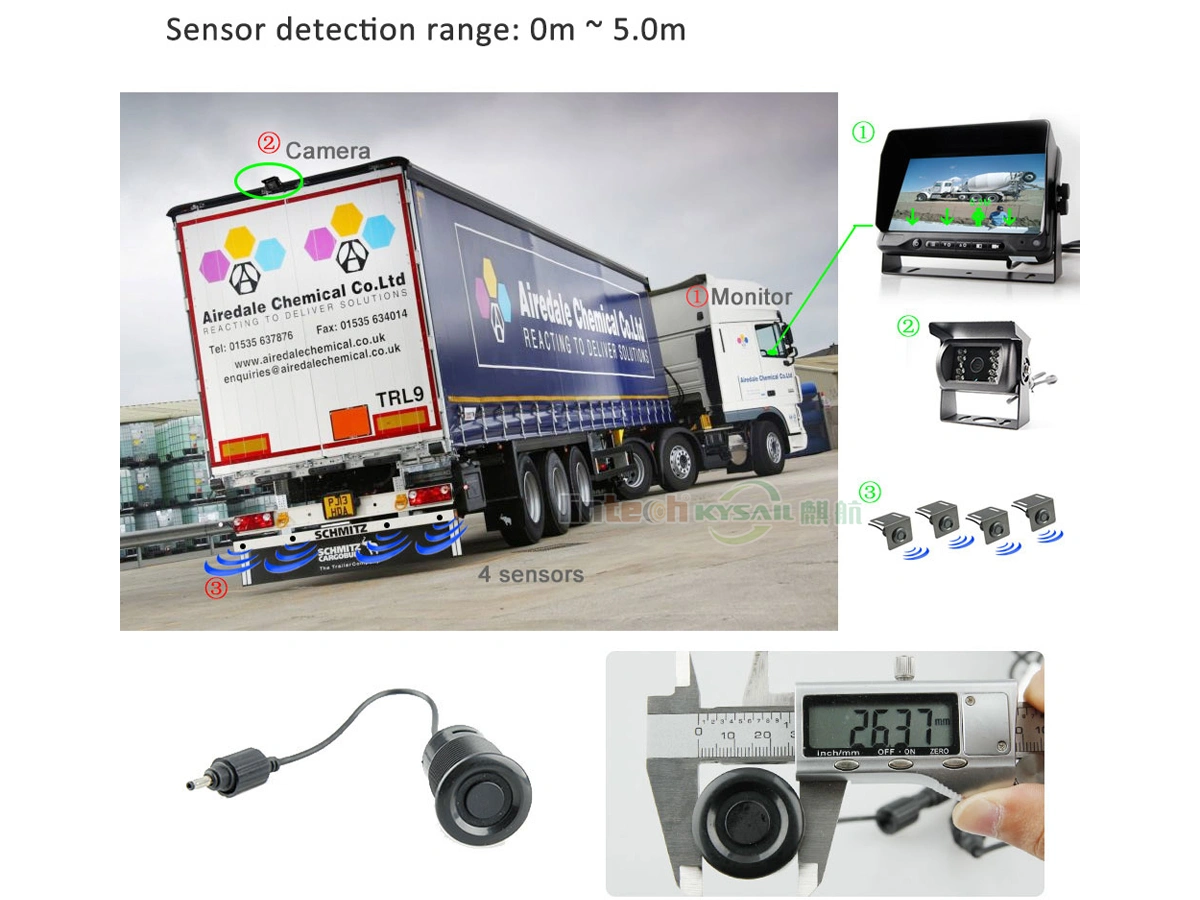

3) Sensor detection range: 0 m ~ 5.0 m
4) Speech at distance range: 0.3 meters to 5.0 meters;
5) Probe cable length : 3m standard (Customized)
6) Cable connection installation, prevent radio interference;
7) Lightning protection anti-interference boxes;
8) Bracket screws or punch probe (waterproof for thread form 4 probe);
9) 4 pins screw on extension cable to connect monitor to main control box, 15 meters;(other length customized);
10) Power input:12- 24VDC; Stand by : less than 1W
11) Operating frequency: 40 KHZ.
12) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.
13) Size: length x width x height = 153mm x 99mm x47mm.
14) Low temperature – 40 °C, high temperature of 80 °C;

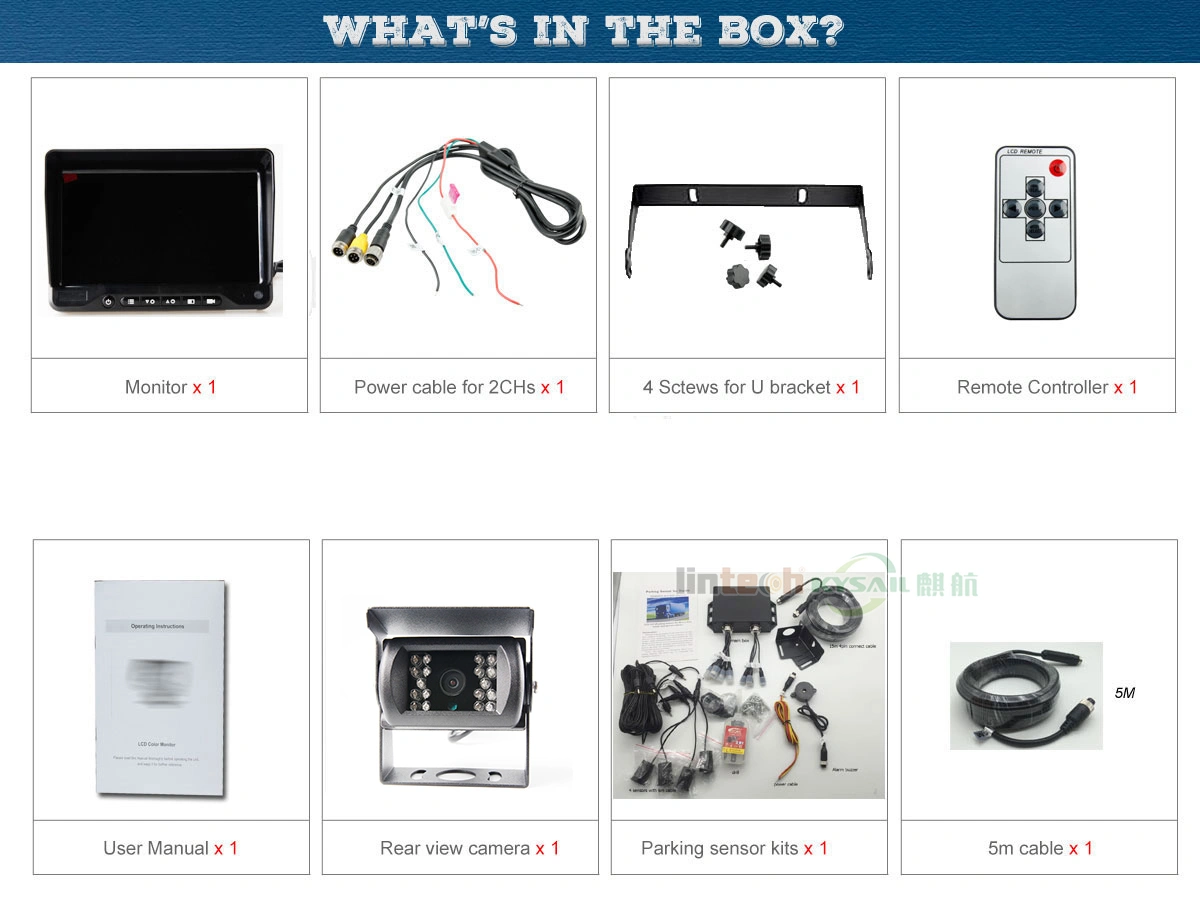

Package Contents:
1 x Main control box To adapt to the wide voltage, can work in 24 v and 12 v.
1 x Auto beeper buzzer (>100db)
1 x Power cable (50cm)
4 x waterproof thread form probe
1 x 7 inch TFT lcd color monitor
1 x rear view waterproof camera
1 x 15 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
1 x 5 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
