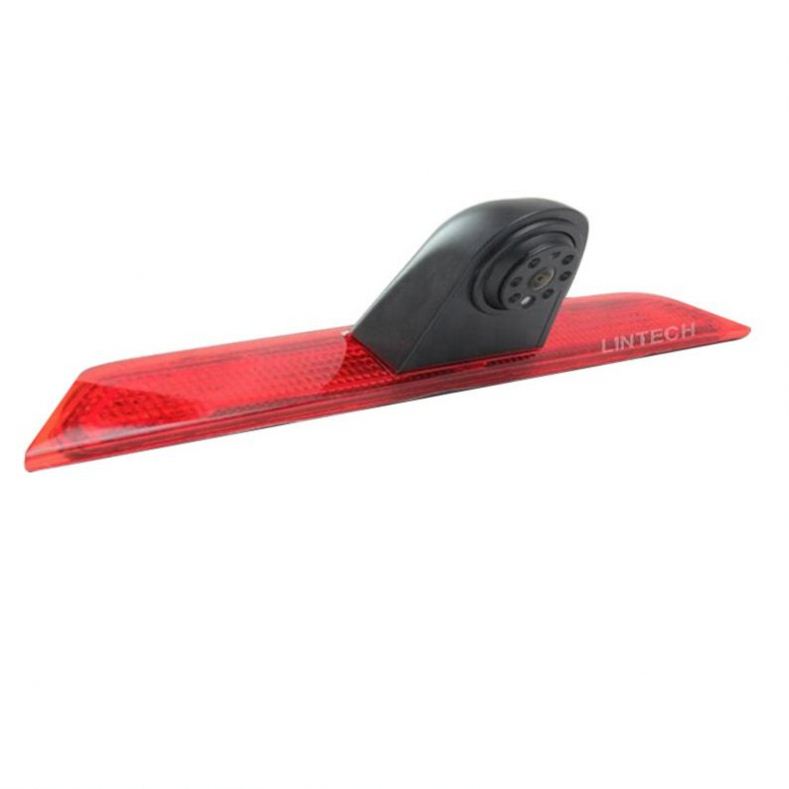

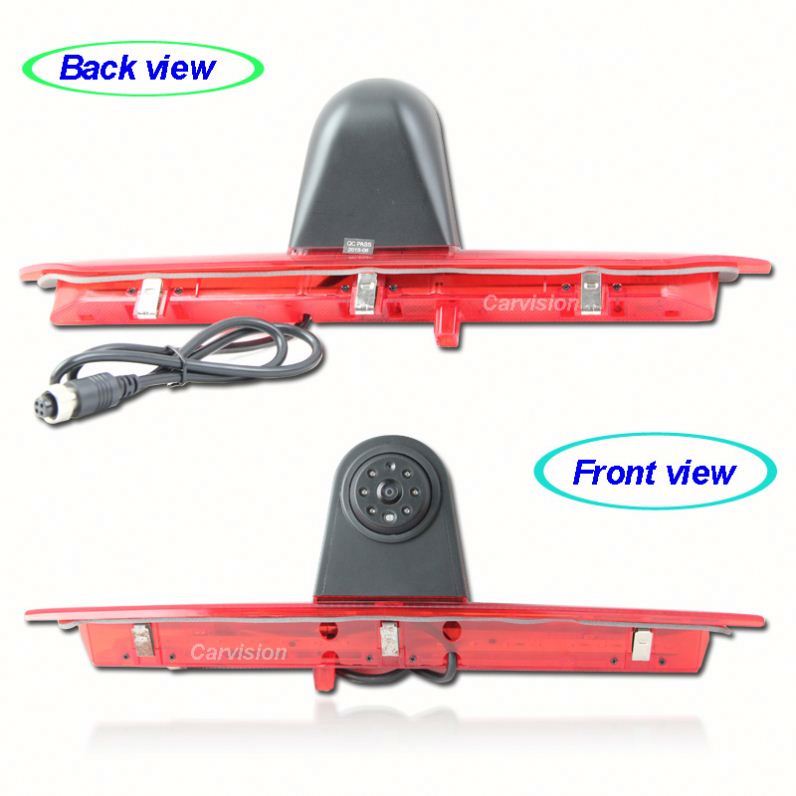

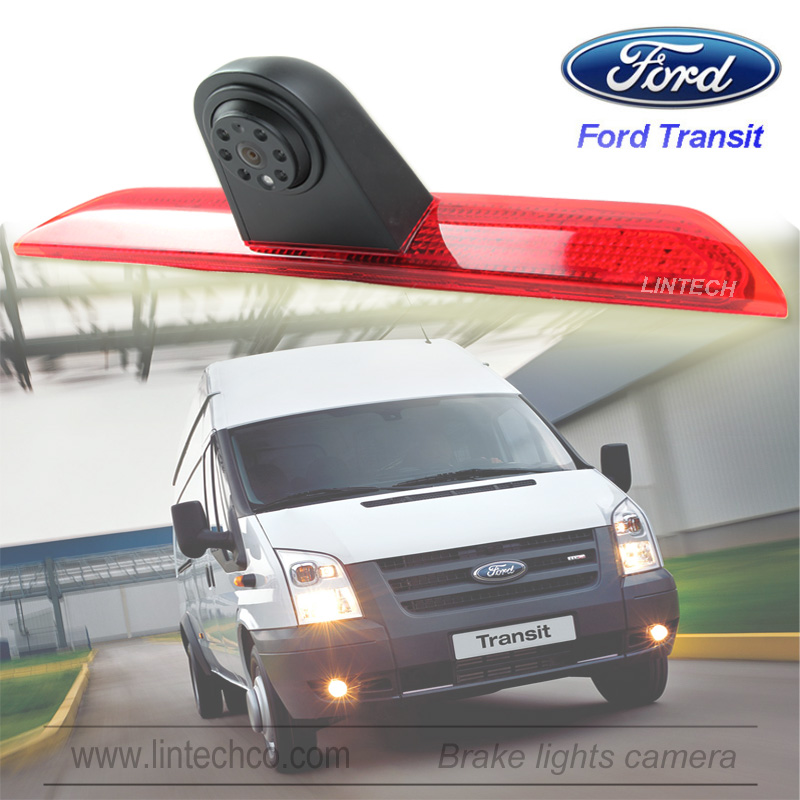

New Product Multi-angle Brake Lights Reverse Camera For Ford Transit

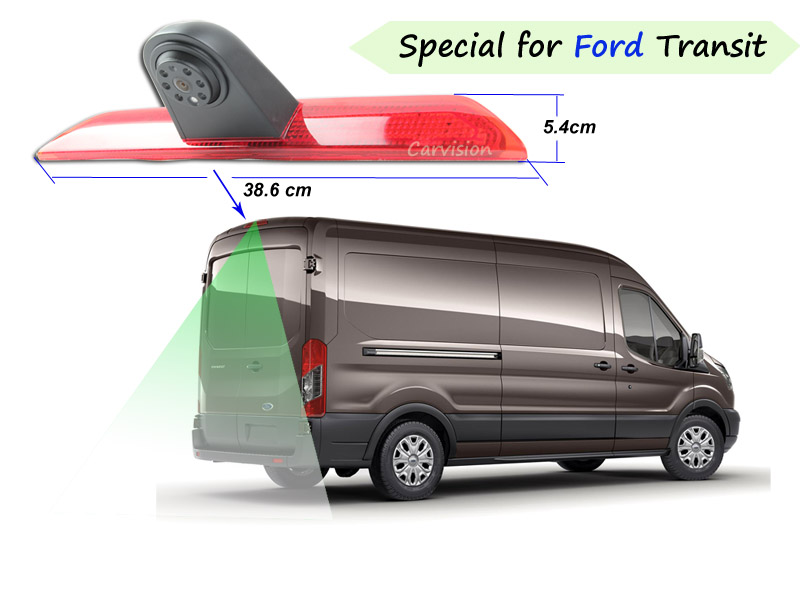

With the Model LC-009C4 brings Kysail a Brake lights reverse camera on the market designed specifically for use on Transit vans vehicle.The problem: at rear doors can not be installed a normal back up camera. A conventional model doesn’t allow to see every detail behind the van (caused by the concavity of the van rear end). With the special housing of the LC-009C4 the object lens overlap the concavity and you can see all details (entire back wall, bumper, hitch etc.) behind your van.
For perfect night view image the housing is developed with 6 IR LED (automatic switch on), also with microphon(optional) – now you see and hear what happens behind the vehicle. The cam is featured with 1/3″ CMOS CCD Sensor for rich and real color with visible 170° field of view. Robust and absolute weatherproof manufactured for all conditions – protection class IP68. The Model LC-009C4 is real professional reverse camera for every day use, if you need high quality camera so you use this one.
Stop lights Rear View Brake Light reverse camera For Ford Transit:
| image Device: 1/3″ CMOS CCD rear view back up amera Resolution: 580TV lines View angle(diagonal/Horizontal): 170°/105° Microphone built-In Sensing Area: 3.6mm x 2.7mm Scanning System: 2:1Interlace Sync. System: Internal Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz Vertical Sync. Frequency: 50Hz / 60Hz Minimum Illumination: 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2 Video Output: 1.0vp-p, 75Ohm Gamma Consumption: 0.45 AGC: Auto S/N Ratio: Better than 48dB White Balance: Auto Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds BLC: Auto Heavy-duty car camera Reversing car camera Infrared LED light: 6 PCS night vision rear view back up camera Waterproof Rate:IP68 Shell material: aluminum alloy Bracket material: iron Dustproof, waterproof, hydrochloric acid prevention, explosion prevention Current Consumption: Max. 190mA |
Brake Light reverse camera More Details:

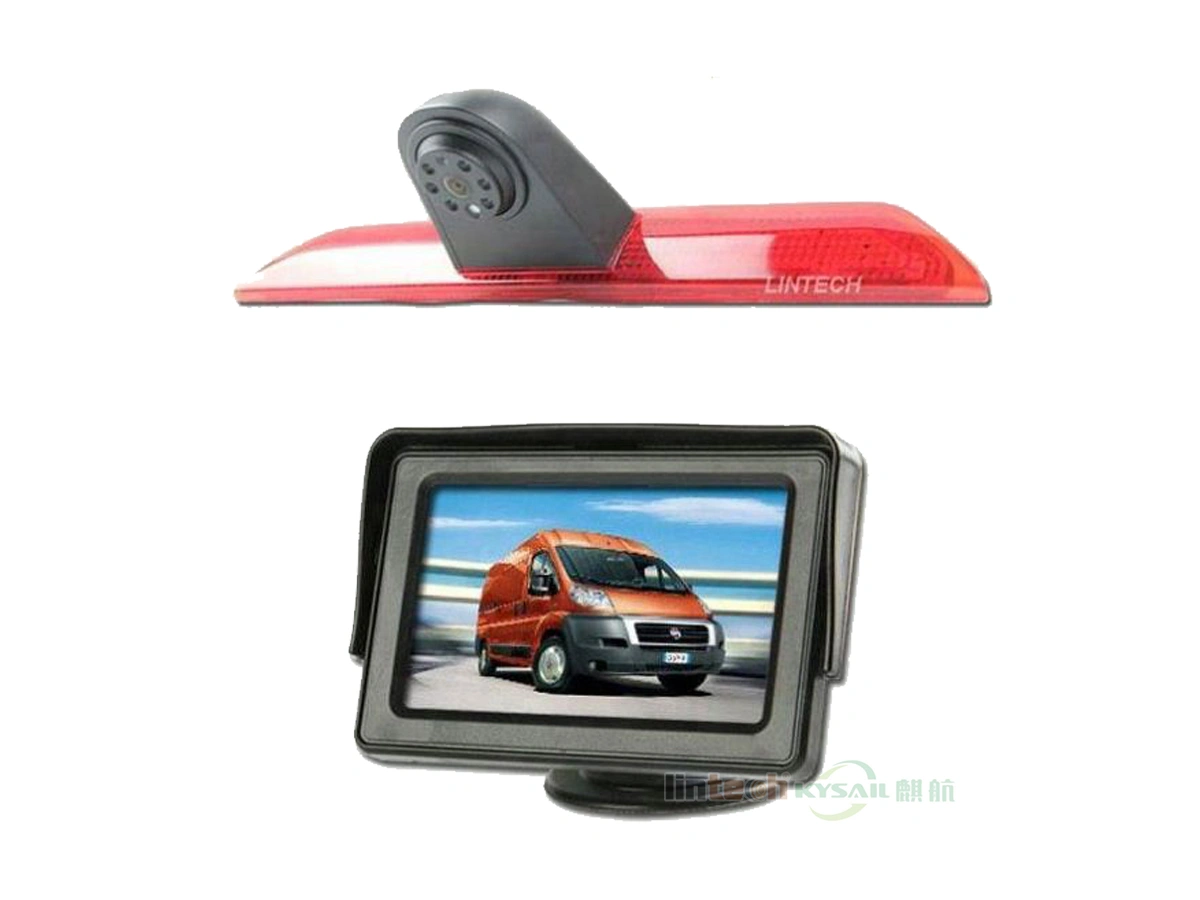

LC-009C4 Brake lights reverse camera optional Monitors:

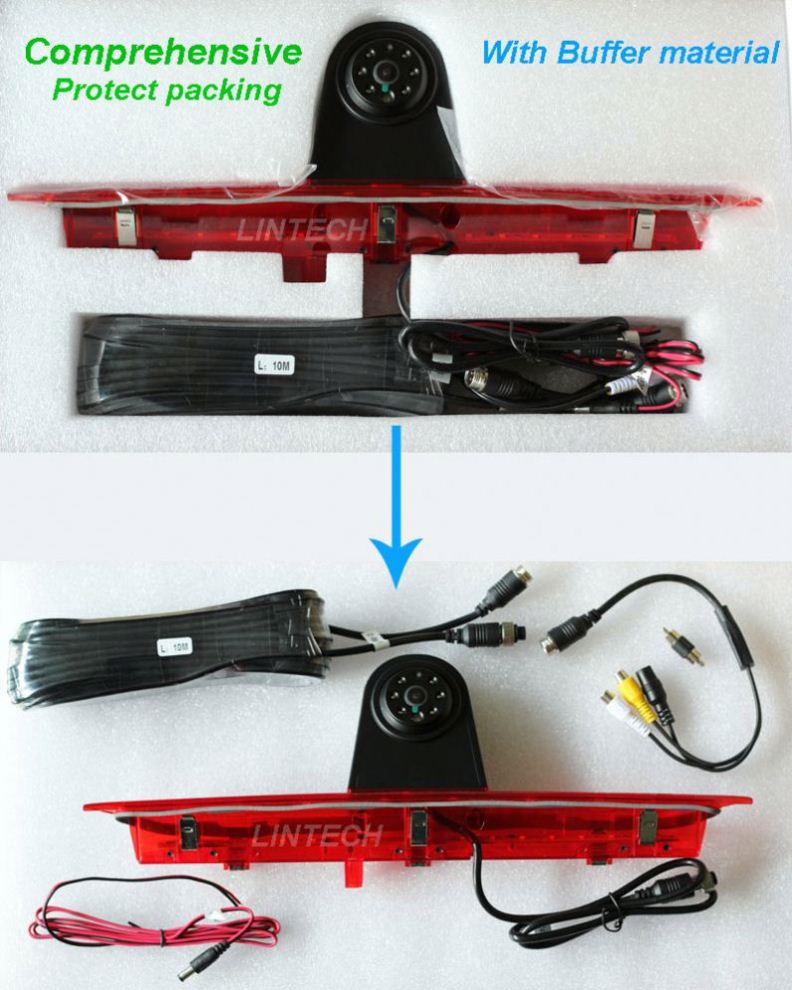

1pcs x Brake light reverse camera
1pcs x installation screws
1pcs x operating manual
1pcs x 4.3″ Monitor
