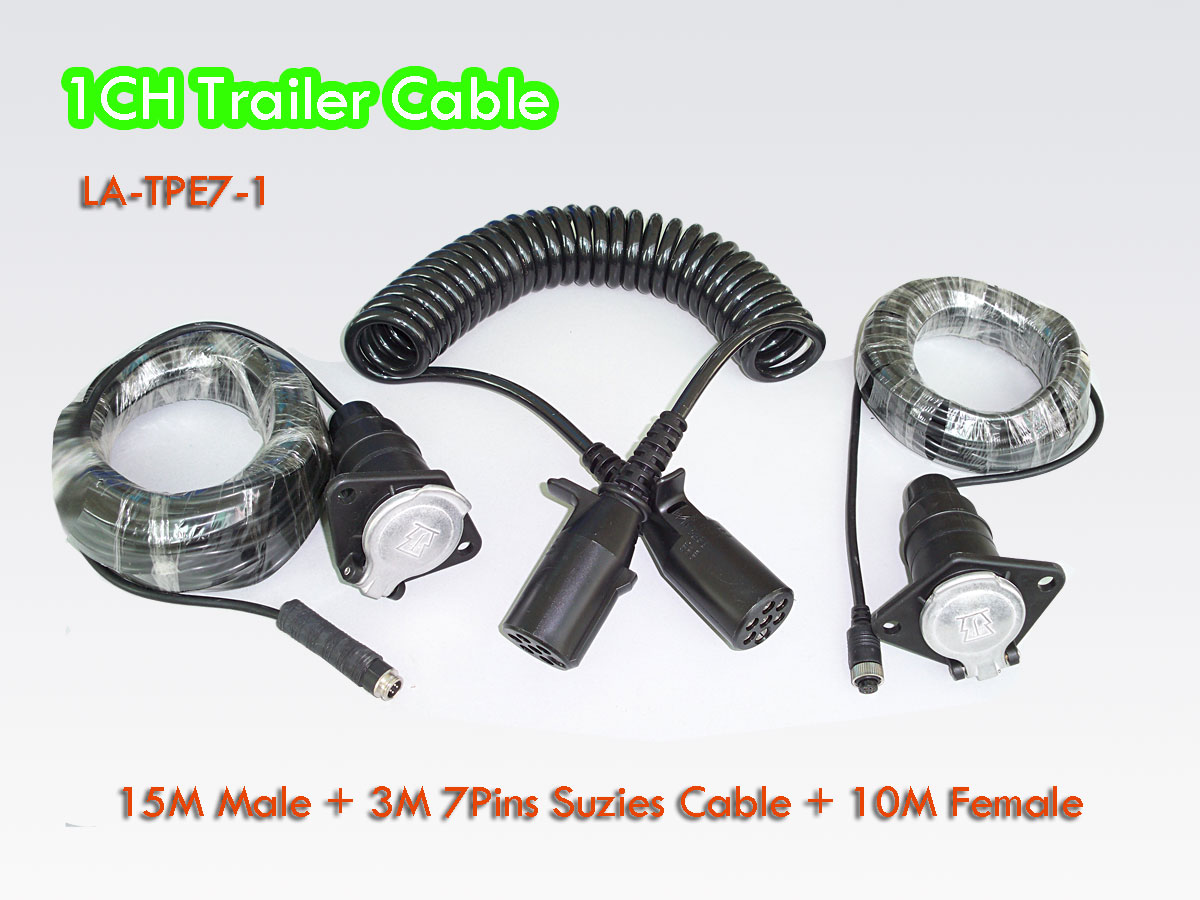

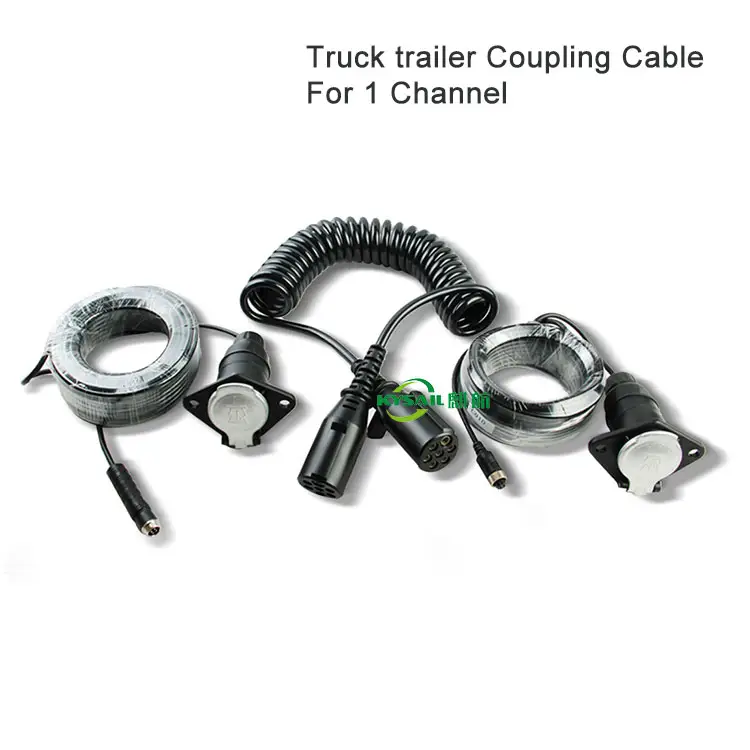

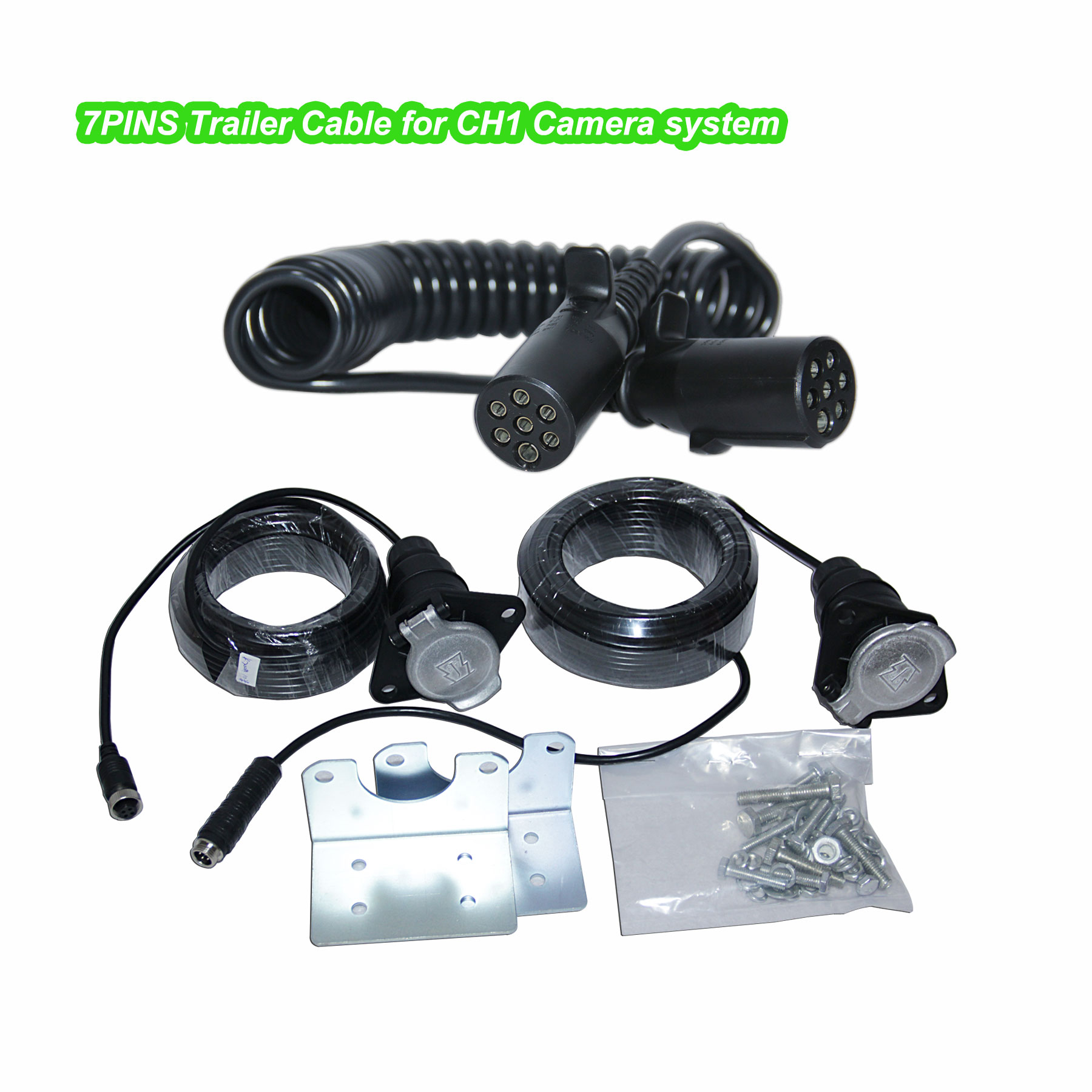

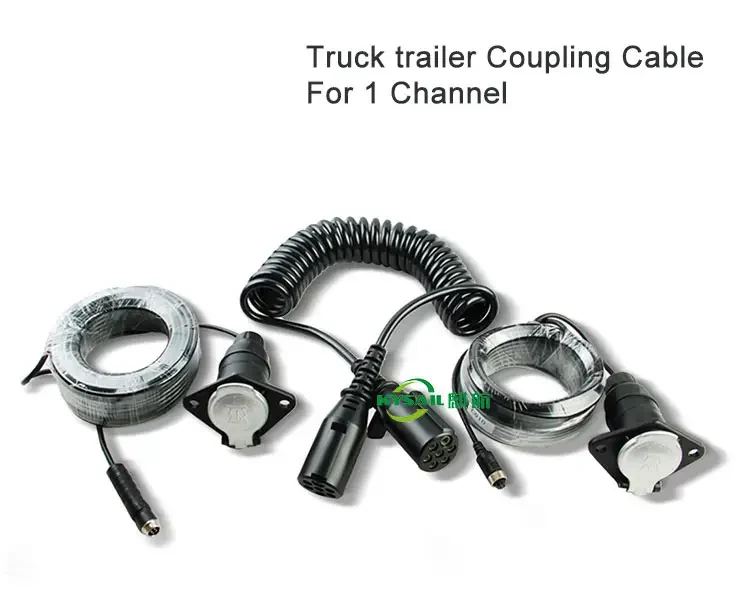

Trailer Cable Kits for 1 Channel Car Camera Connection
Model No.: LA-TPE7-1

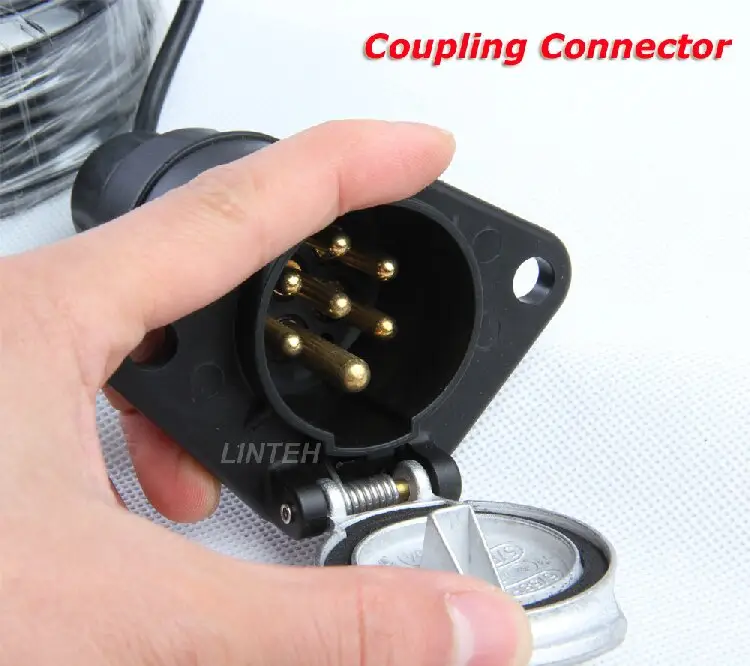

4P Male 15M extend wire for camera + 7-pins Trailer Connectors (3M working range) + 4P Female 10M extend wire to Monitor
| –7Pins/12V and 24V spiral cable / suzie cable |
| –TPE cable 6 x 1.0 + 1 x 1.5 square millimeter |
| –With hand hook injection plastic plugs |
| –Coil diameter: 50mm |
| –Work length: 3m |
| –Maximum extension length: 4.5m |
| –Standard Extension cable: 10m Female 4pin aviation connector + 15m Male 4pin aviation connector(Customized was available) |
Part 1: 15-meter tractor head female connector: 0.7kg, heddle box dimensions: 15×14.5×9.5cm
Part 2: Cable reel: 0.7kg, bracket set (pair): 0.3kg, bracket screws: 0.1kg, heddle box dimensions: 26.7×19.5×7cm
Part 3: 10-meter tractor head female connector: 0.5kg, heddle box dimensions: 15×14.5×9.5cm
Total Weight: 2.5KG around.

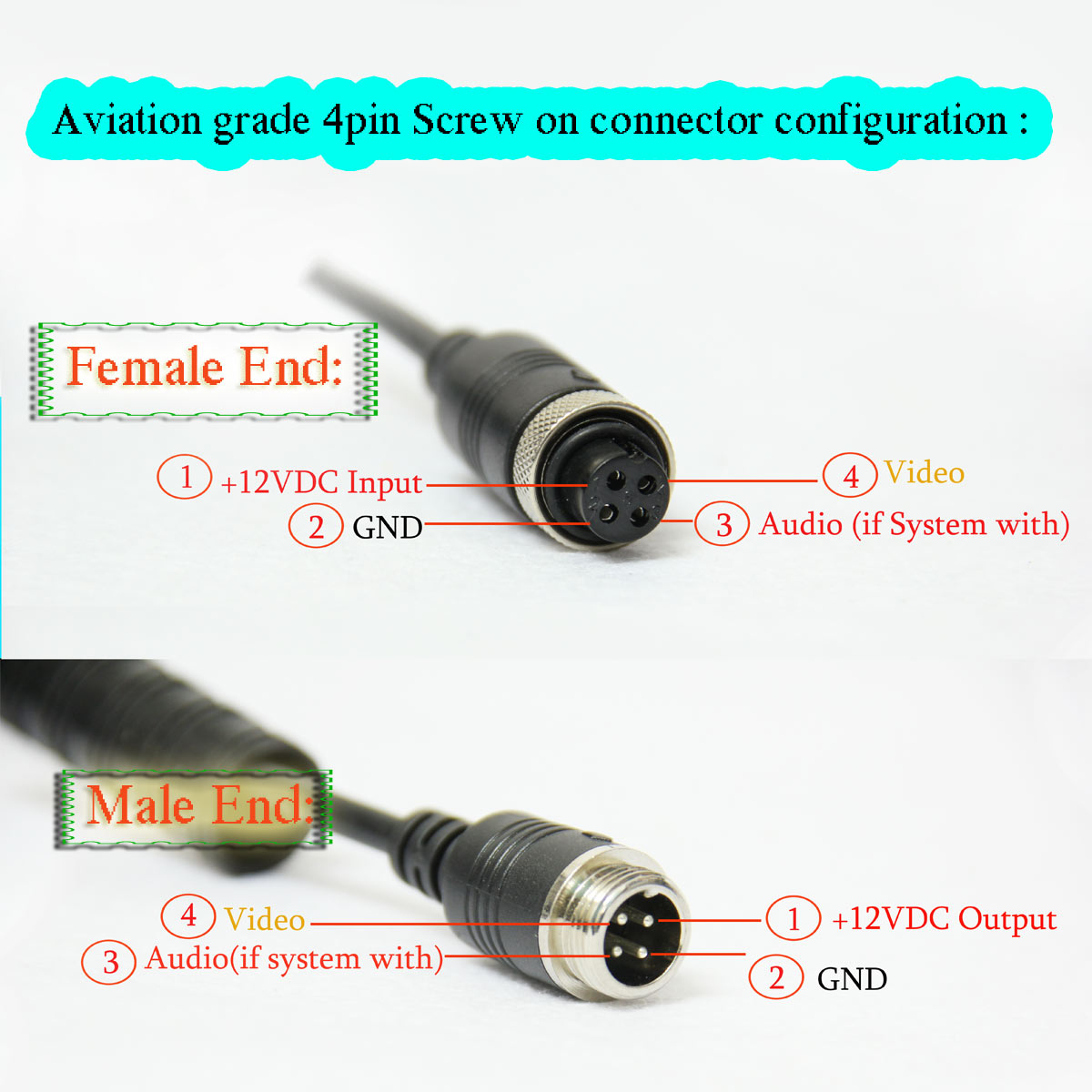

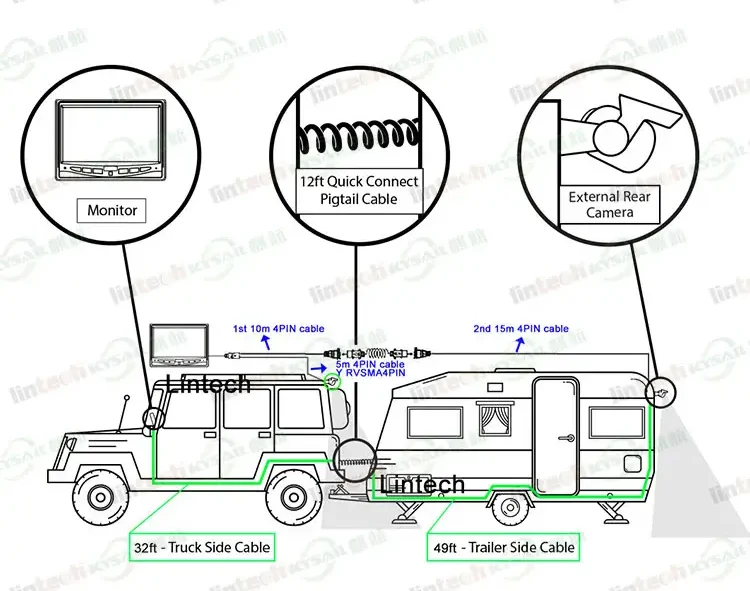

Wire Install Chart:

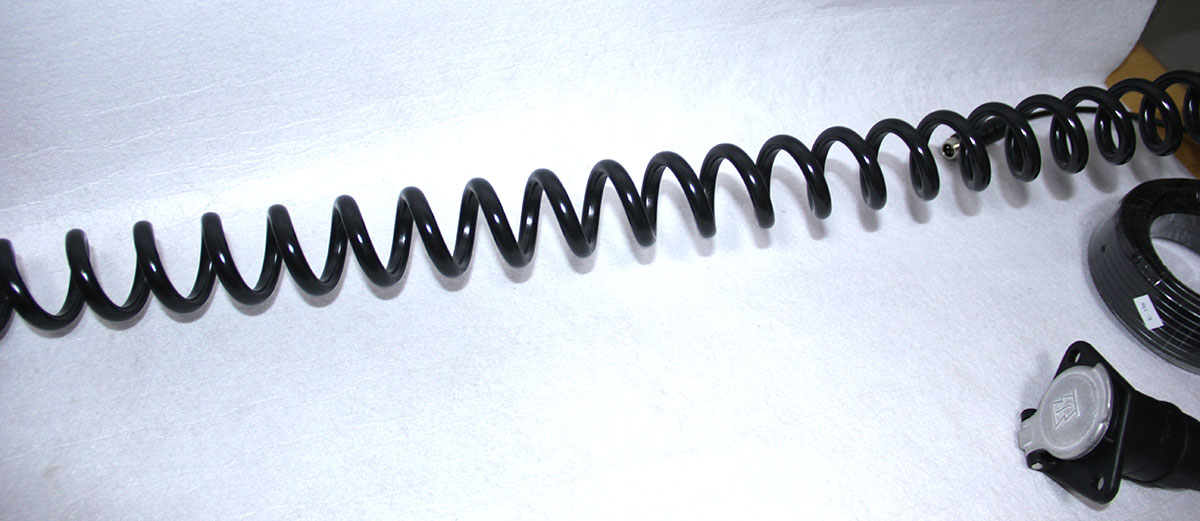

Spiral Cable:

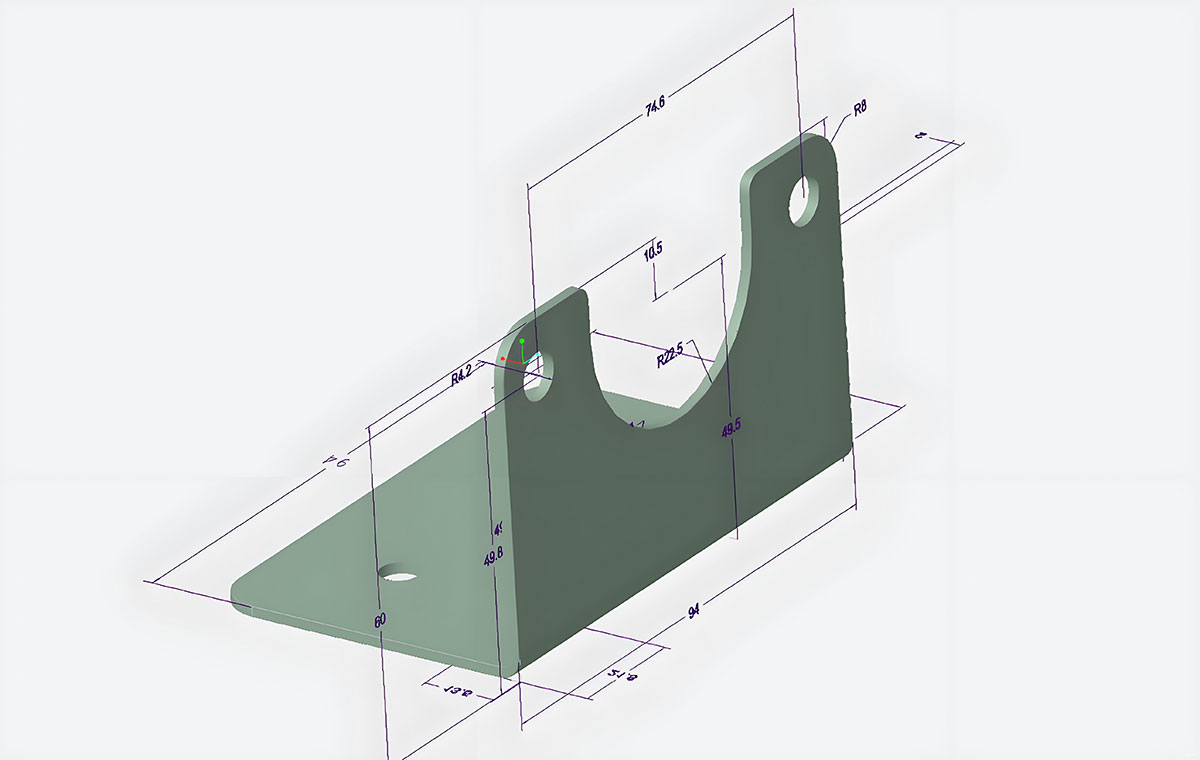

Stainless steel or Steel Zinc plating bracket size 1:

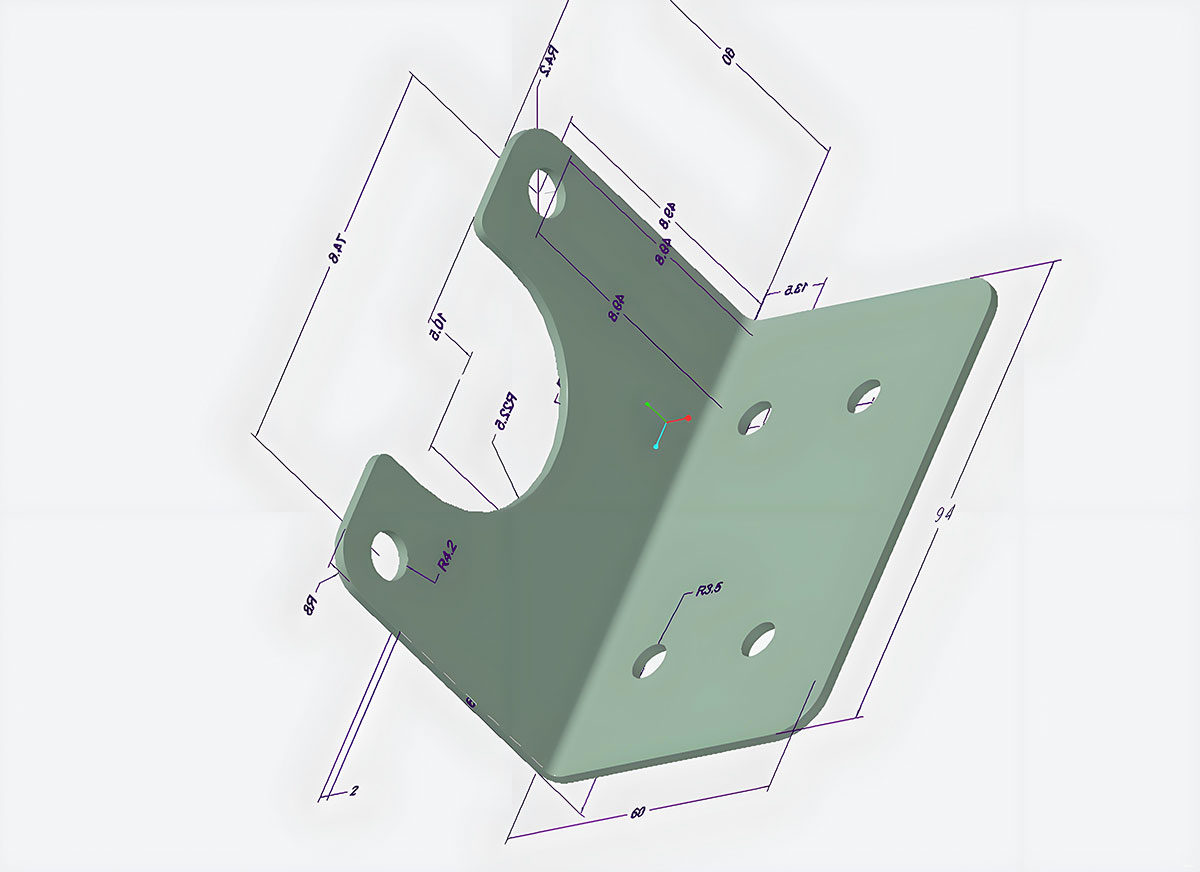

Stainless steel or Steel Zinc plating bracket size 2:

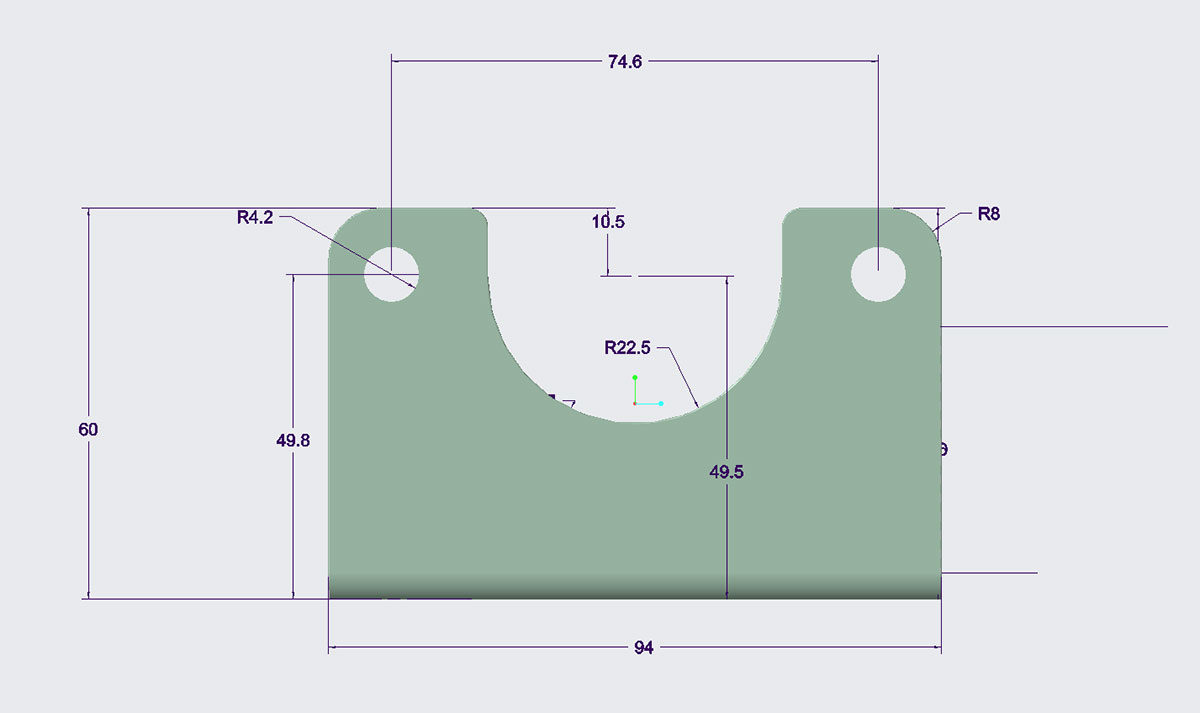

Stainless steel or Steel Zinc plating bracket size 3:

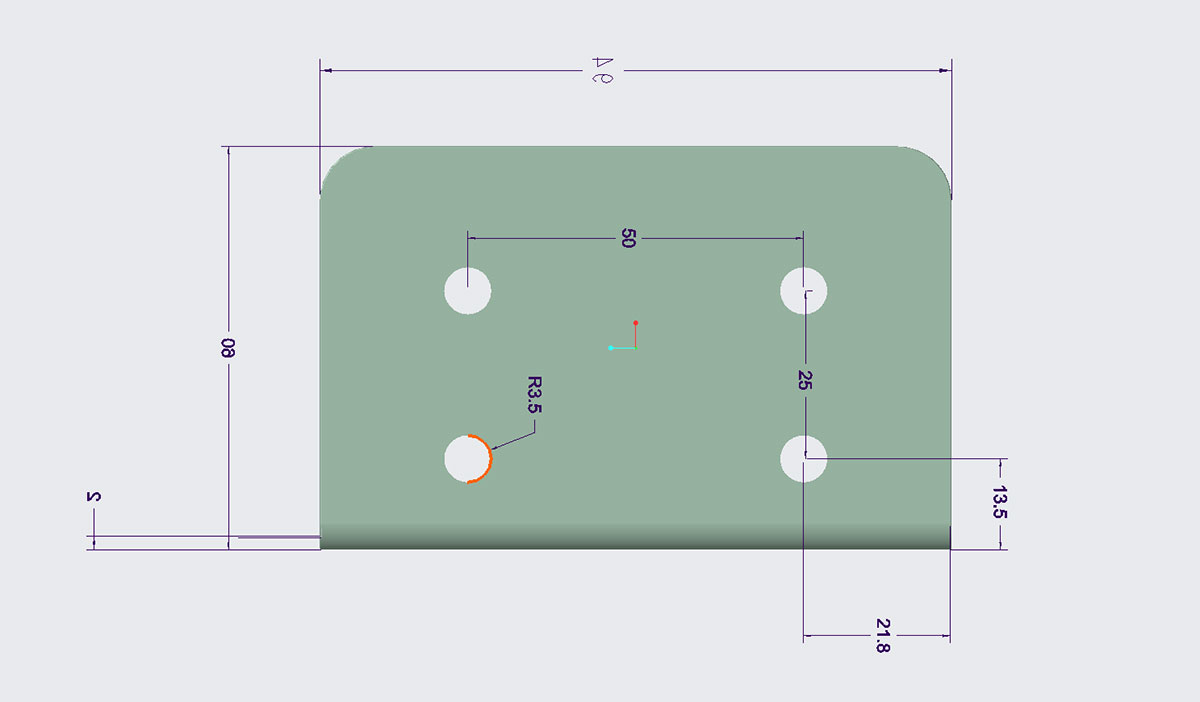

Stainless steel or Steel Zinc plating bracket size 4:
