7-Inch Monitor Rear Backup Camera Side View Camera For Trucks
Item Description:
1.This monitor and reverse camera can be used with Trucks/ Caravans/Cars
2 video inputs, reversing first Connect 2 cameras to the monitor(2nd camera – optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.16:9/4:3 switch freely
2.1x 15m advanced 4PIN cables Allows the monitor to power up cameras, no need to connect to another power cable.Connect and disconnect the cable between your trailer/caravan easily.
3.Easy to install. You can D.I.Y. as long as you can locate your vehicle’s 12V/24V/32V power source.

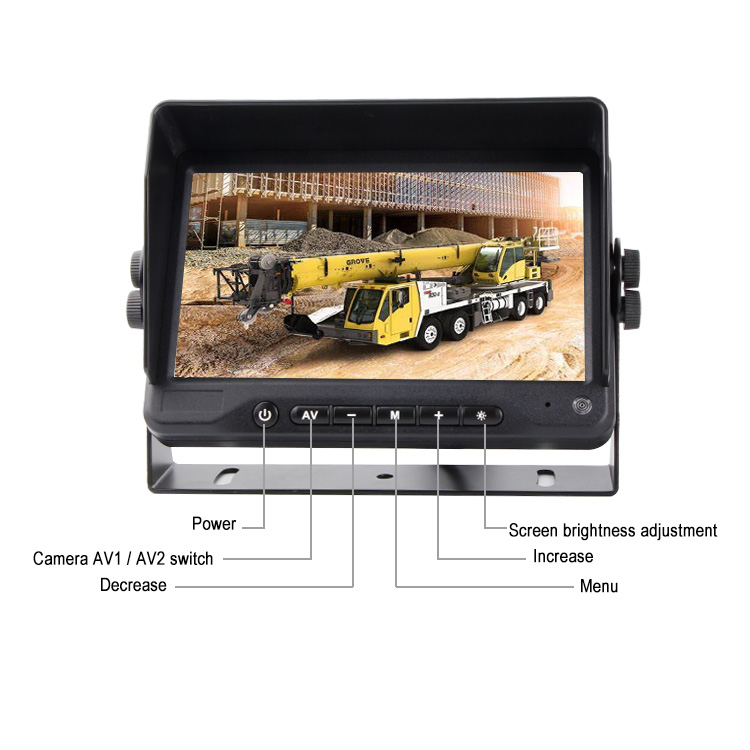

LM-070F2 LCD Monitor Specifications:
| Screen size: | 7 inches new AU TFT-LCD panel |
| Type: | Stand-alone monitor (16:9) display |

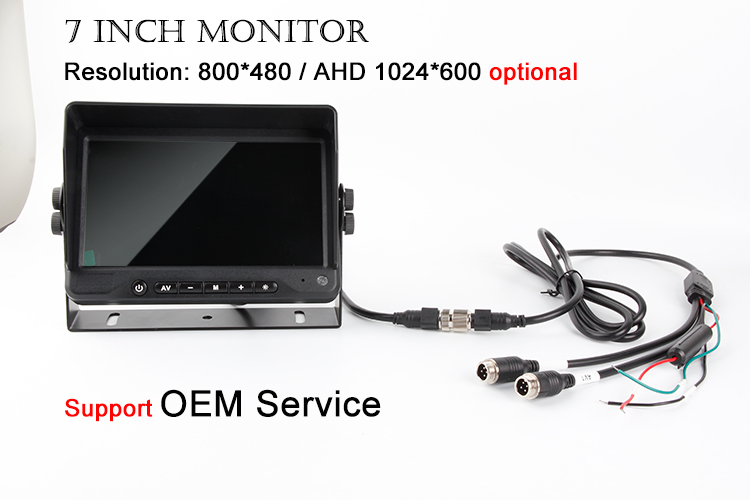

| Display Resolution: | 800 R.G.B x480 dots dightal display / AHD1024*600 optional |
| System: | PAL/NTSC TV system auto switching |
| Video input: | 2 Channels input/ (4CHs/ quad monitor optional) |
| Power supply | 12~32V DC power input |
| Power consumption | Less than 7W |

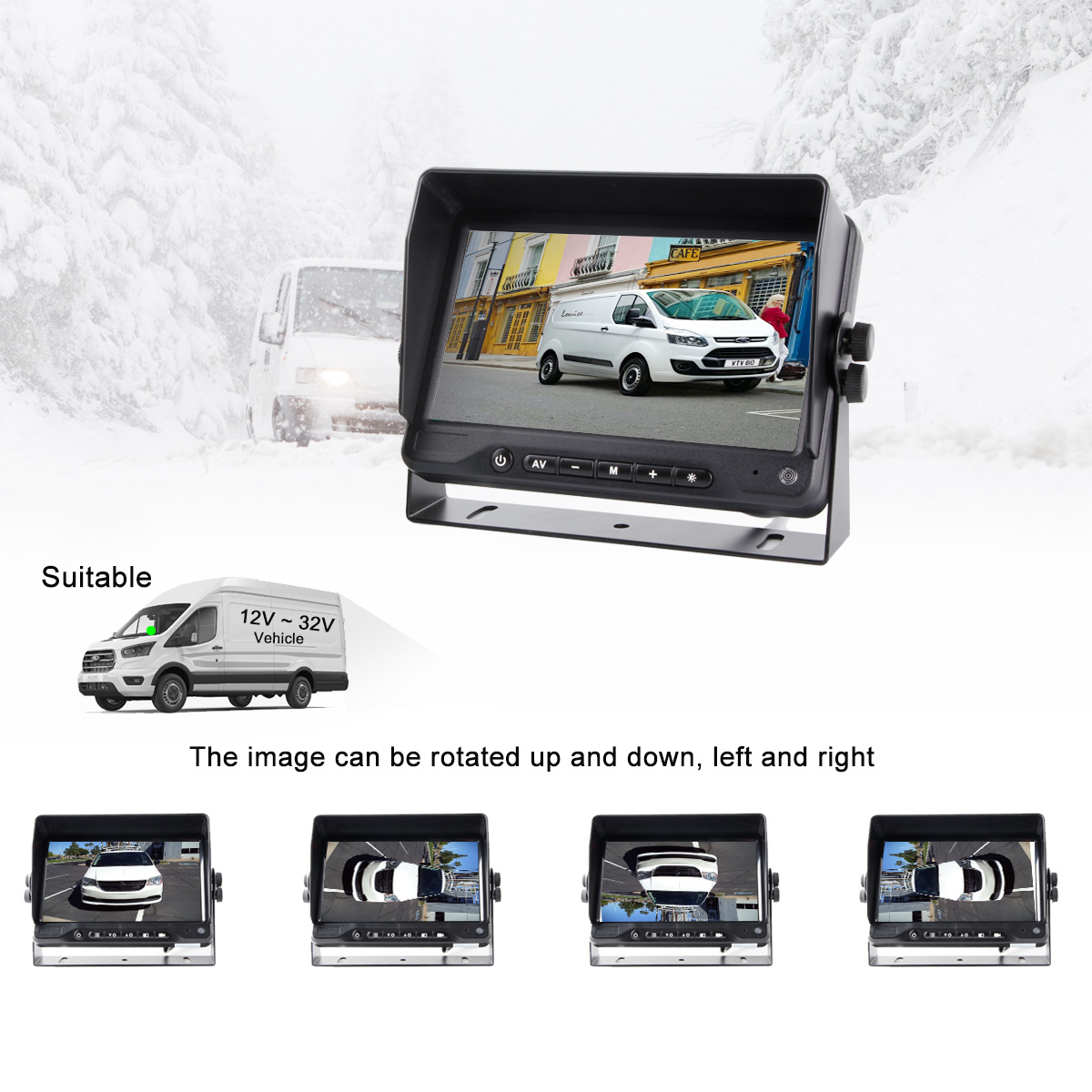

| Image | Up/down, Left/right functions |

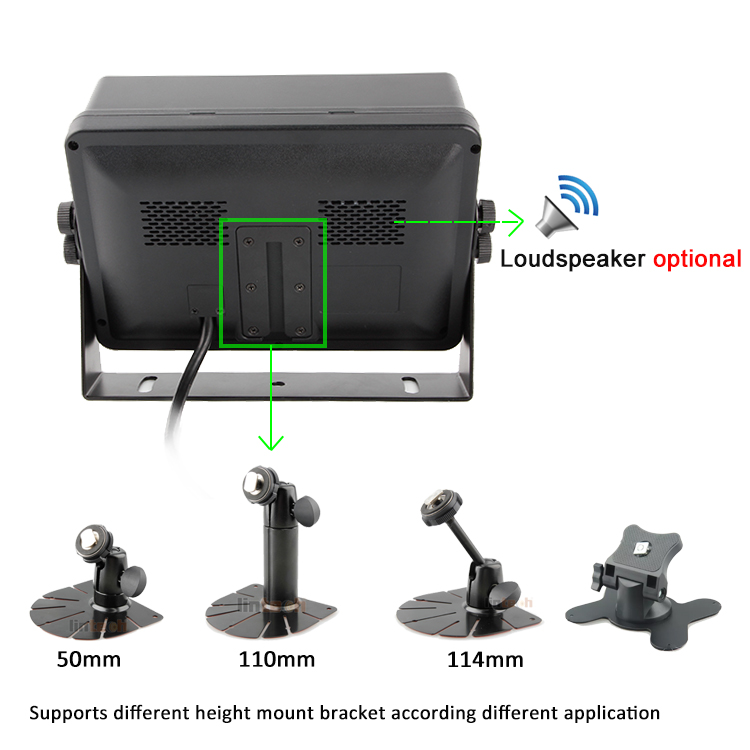

| Loudspeaker | Optional |
| Remote control | Yes |
| Operating temperature | -10 ~ +65degrees |
| Storage temperature | -40 ~ +65degrees |
| Without signal | Video signal disappear, display blue screen |
| Languages | English, Dutch, French, Spanish, Russian, German, Italian |
| Suitable for | Camera/DVD/VCD player |
| Trigger cable | Yes |
| Color | Black color |
| Warranty | 18 Months |

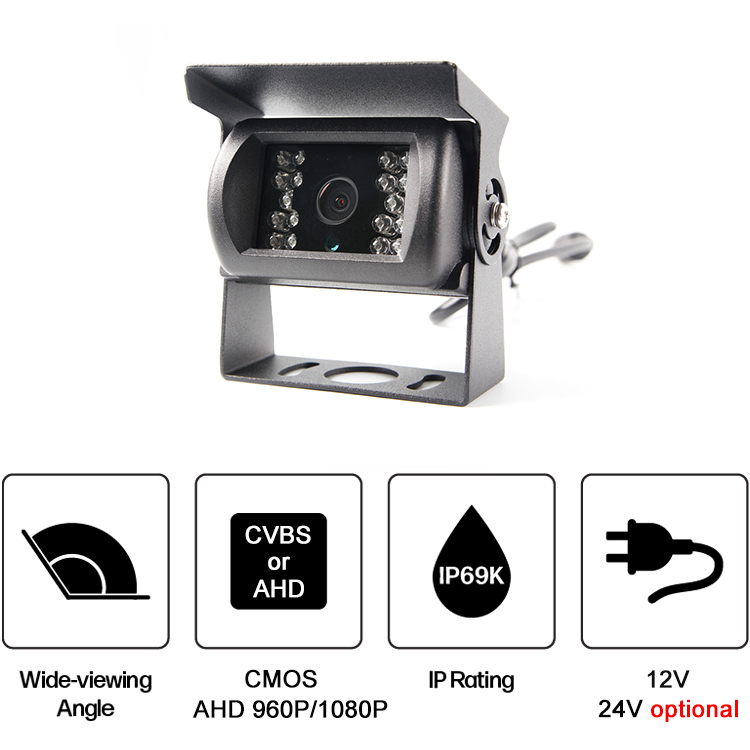

(Model NO:LC-018A) Rear View Camera Specification: | |||
Type | 1080P | 960P | CMOS |
Sensor | 1/3″ APTINA CMOS | 1/3″ APTINA CMOS | 1/3 CMOS CCD |
Resolution: | 1920*1080 (2.0M Pixels) | 1280*960 (1.2M Pixels) | N:510×492 pixels P: 500×582 pixels |
Effective Pixels | 2,000,000 pixels | 1,300,000 pixels | 2,000,000 pixels |
Lens: | 2.8mm | 2.8mm | 2.8mm |
Min illumination: | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
IR led: | 18pcs | 18pcs | 18pcs |
Night Vision distance: | 15m | 15m | 10m |
Waterproof | IP69K | IP69K | IP69K |
View angle: | 140°/115° | 120°/92° | 140°/115° |
Power voltage: | 12V | 12V | 12V |
Operation Temp.: | -20°C~+70°C | -20°C~+70°C | -20°C~+70°C |
Heater built-in(optional) | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C |
Microphone | optional | optional | optional |
IR cut | optional | optional | / |
More Details:

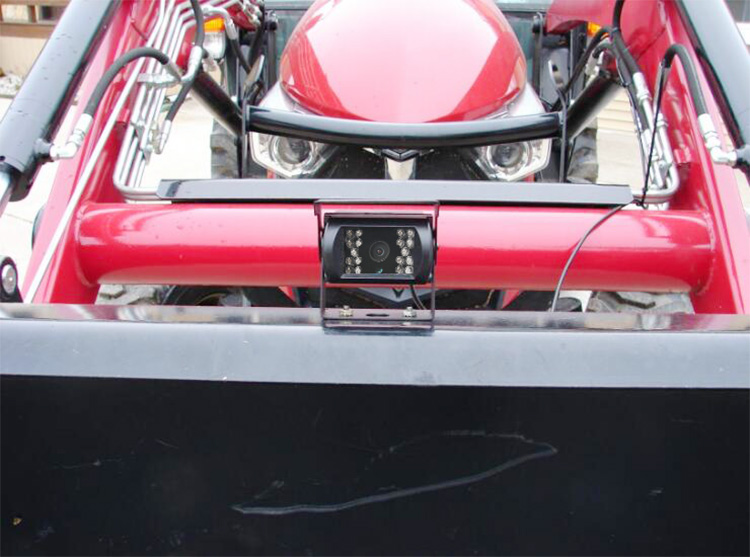

Application:
Hot sell product recommend:

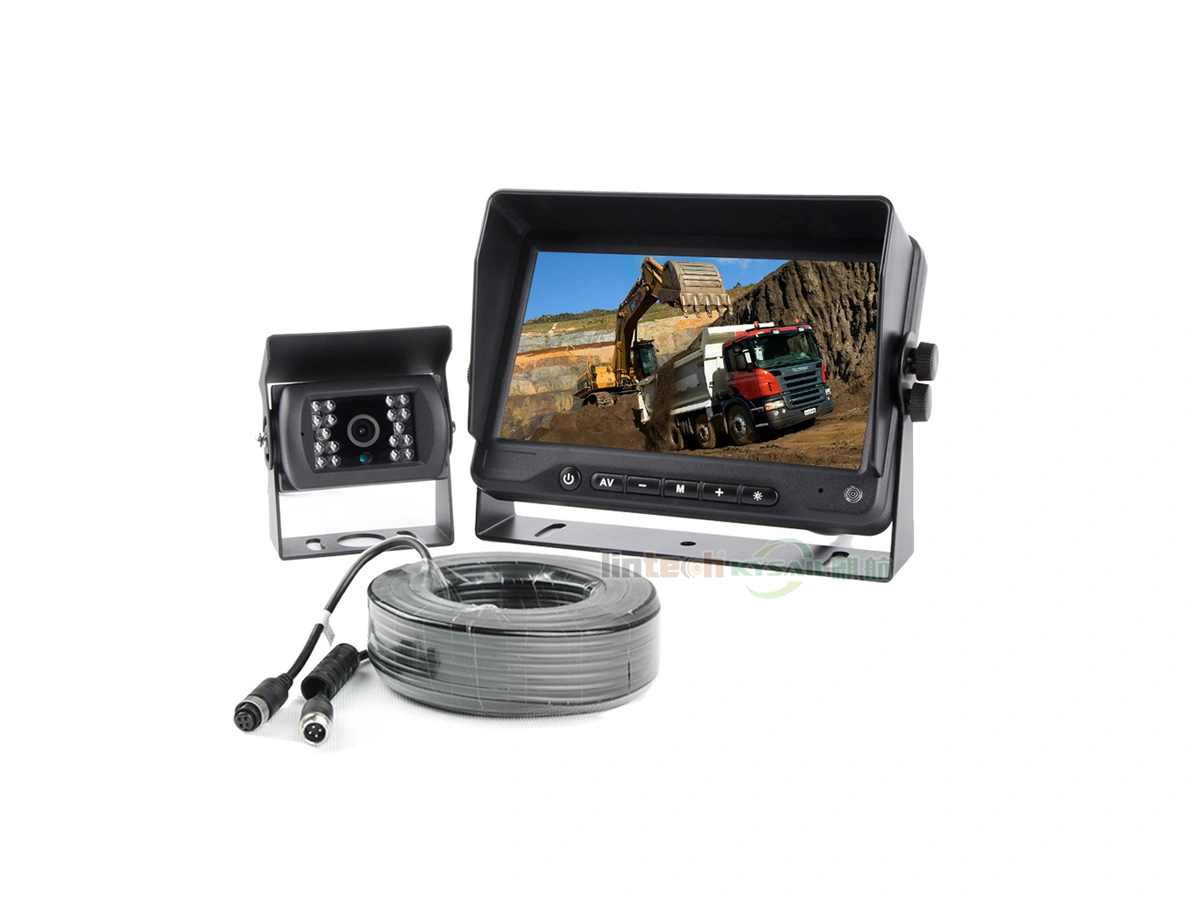

–1pcs x 7-inch LCD monitor
–1pcs x User manual
–1pcs x Remote control
–1pcs x Power cable
–1pcs x Waterproof CCD IR camera with 4 pin plug
–1pcs x15 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
