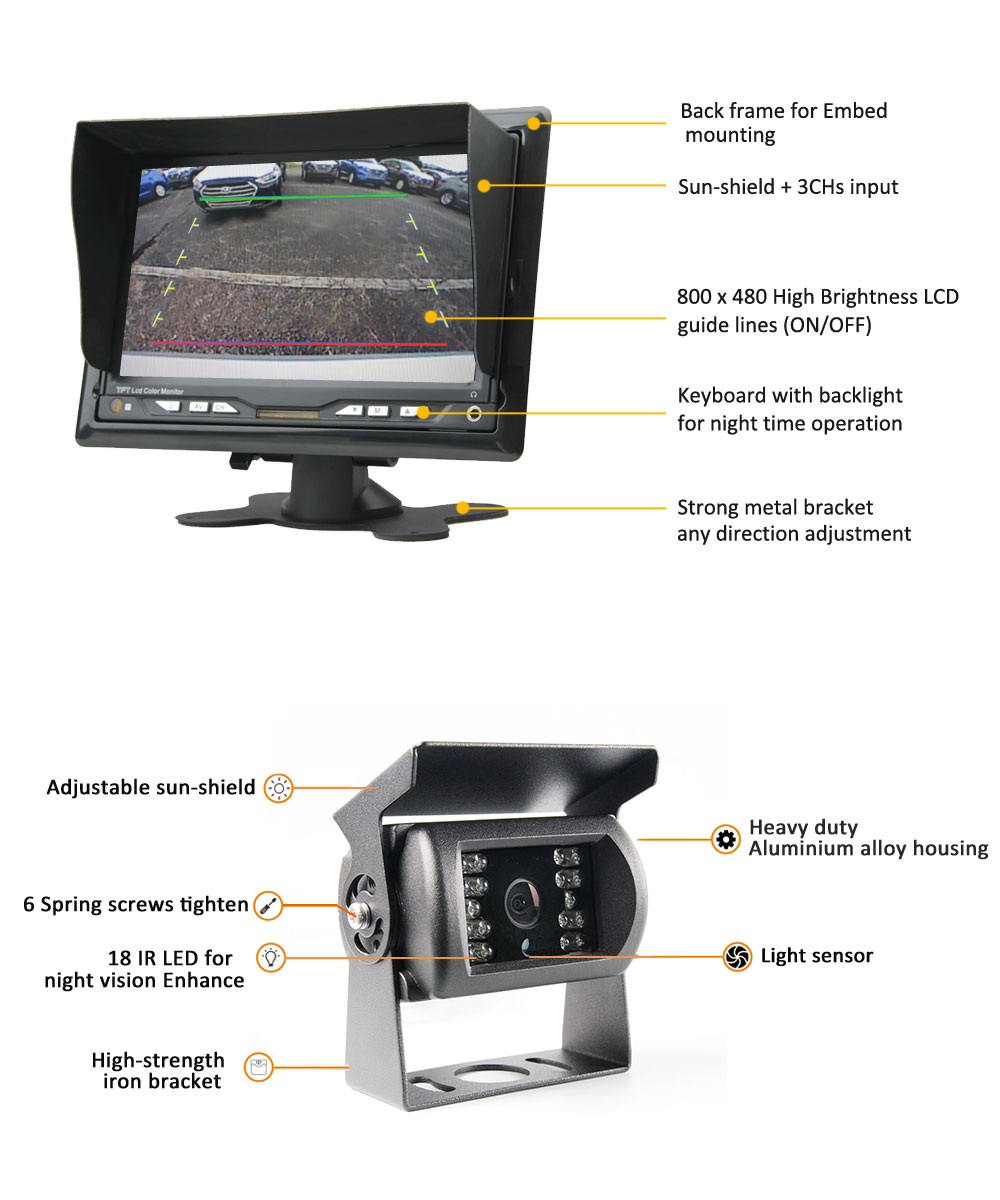

Detail photos of Truck backup camera system:
SPECIFICATIONS:
| 7 inches TFT-Monitor: |
| –Screen: (16: 9) and (4: 3) |
| –Resolution degree: 480(W)xRGBx234(H) |
| –System: PAL/NTSC –Contrast: 300: 1 |
| –View angle: L/R/U/D 60deg; /60deg; /40deg; /60deg; |
| –Brightness: 300CD/m2 –Visible are: 154x86mm |
| –Power supply: DC12V-32V |
| –Power: About 5W |
| –Opeartion temperature: -20~70C-degree |
| –Storage temperature: -30~80C-dgree |

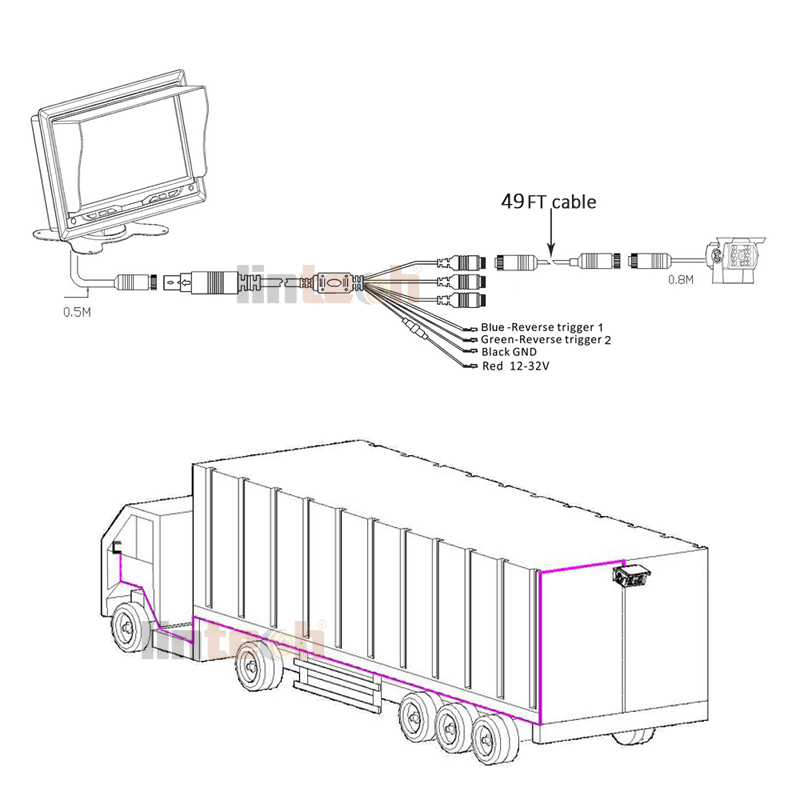

| –Video: Three way video input, can supply power for three cameras. AV2, AV3 with trigger, blue screen when no signal |

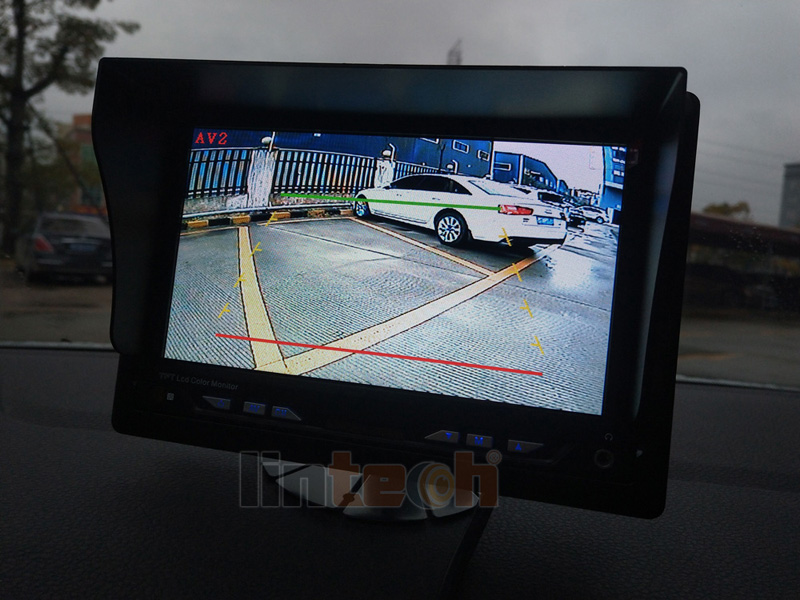

| –Rearview function: 1s switch to AV2, while no signal, the working condition will turn to the original surface. |
| –Special function: Keep reversing status 0-15s as your preference, |
| –Benchmark, Headphone Jack |
| –Optional function: Audio(1-3 way audio), FM and IR(Under two way video) |
| –Color option: Black and Silver grey |
| –Operation mode: Remote control+Keystroke; Keystroke with LED light, Remote control and keystroke can switch pictures at four directions |
| –Apprearance Dimension: (L)174X(W114X(H)25mm –Hosing Dimension: (L)179X(W)119 |
| Camera: |
| (1)1/3″ CMOS Sensor |
| (2)TV system: PAL/NTSC |
| (3)Resolution: 700 TV lines |
| (4)With 18 IR LED light, night vision distance up to 10-15 meters |
| (5)Self-sensitization control the night vision function by the light sensor |
| (6)120 degree wide range angle view |
| (7)Operating Voltage: 9~12VDC |
| (8)Operating temperature: -20~ +70 degrees, RH95% Max. |
| (9)Storage temperature: -40~ +80 degrees, RH95% Max. (10)Alloy shell, Waterproof, silver/black color selectable |

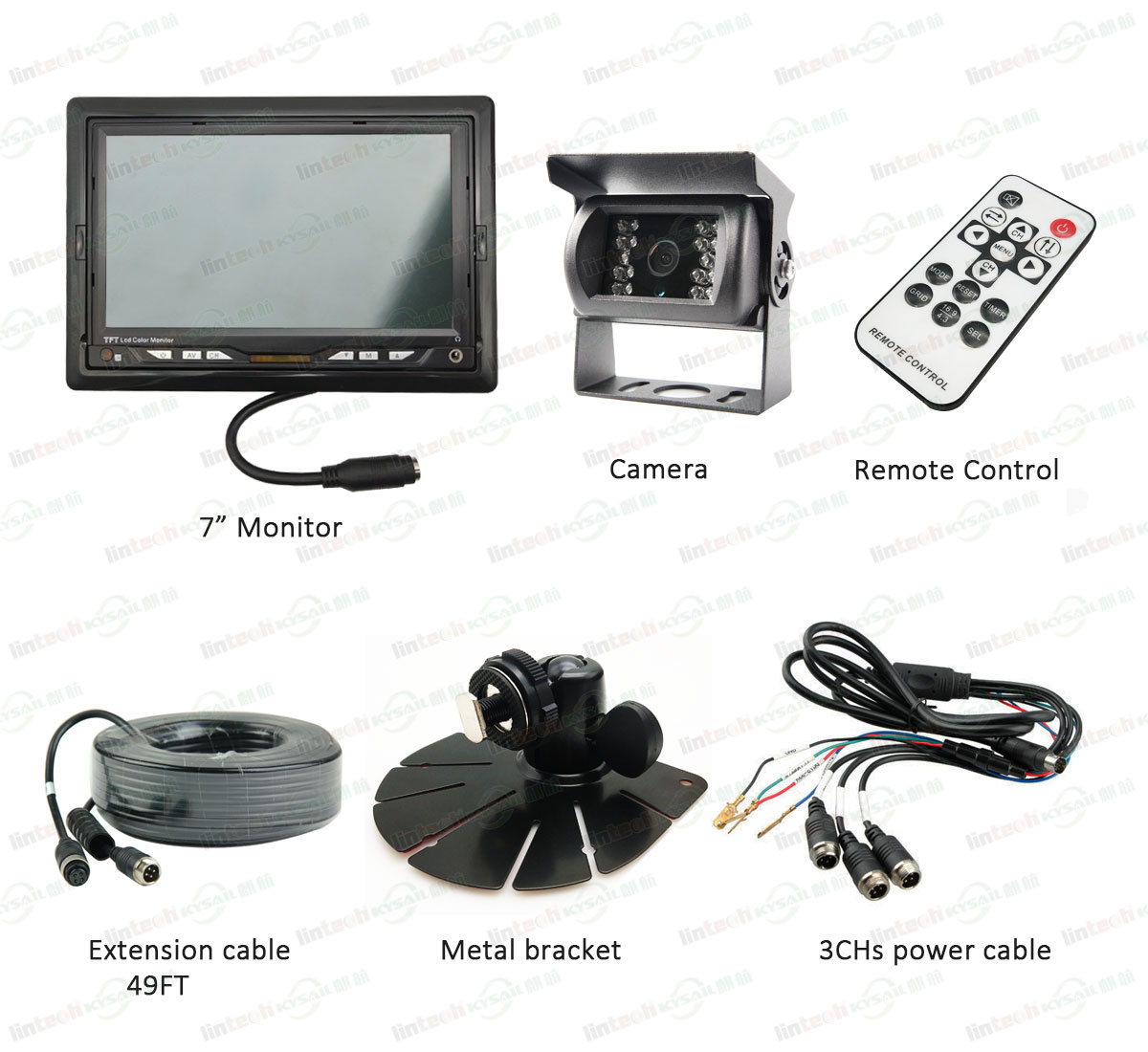

Standard Packing Contents:
1> 7 inches TFT monitor x 1PCS
2> Monitor remoted control x 1PCS
3> 1/3″ SHARP CCD Camera x 1PCS
4> Camera screws x 1kit
5> 2meter monitor cable x 1PCS
6> 20m waterproof extend cable x 1PCS
7> Product data sheet x 1PCS
