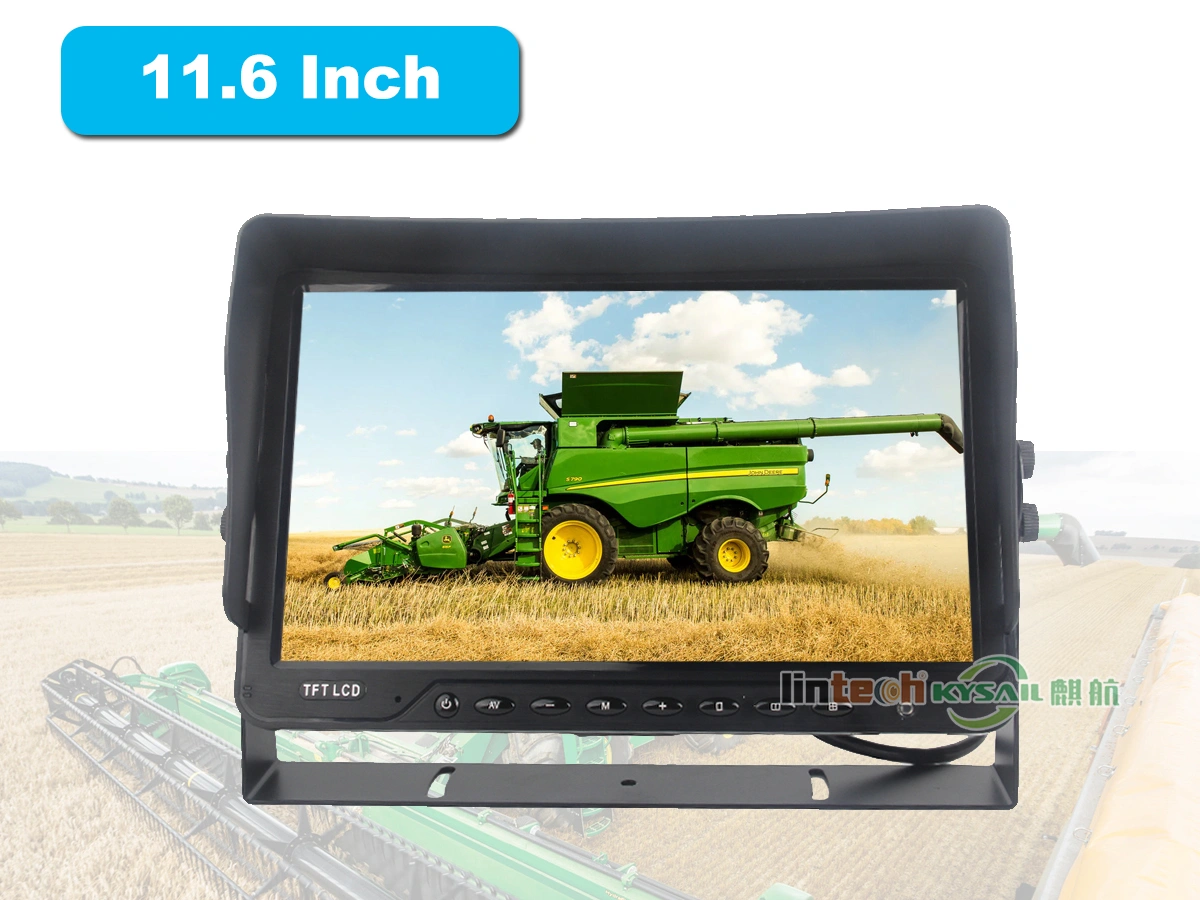

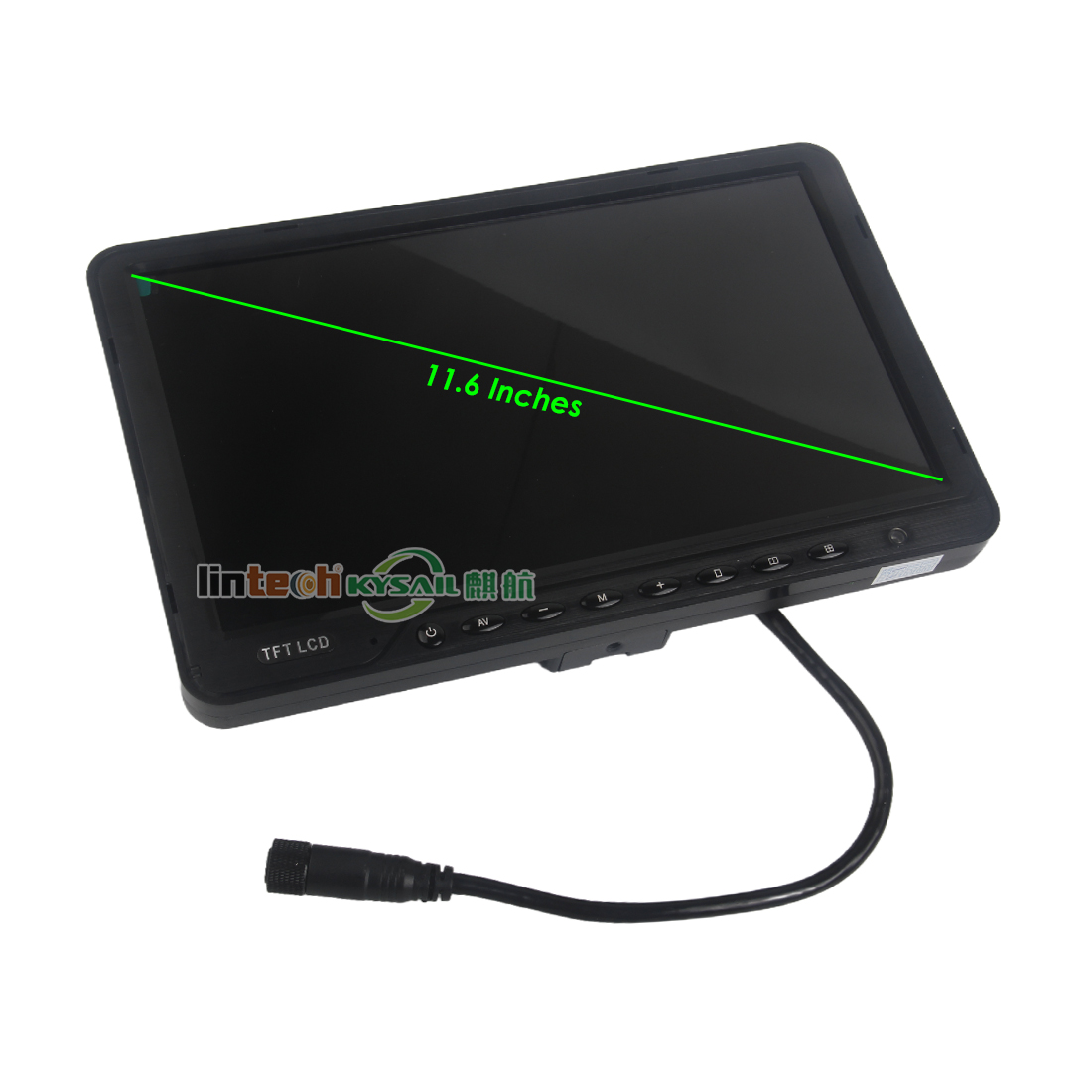

4CHs 11.6inch AHD Rear View Quad Car LCD Monitor Truck DVR Electronic Display Split Sareen

LM-116-Q is biggest size dash board monitor for rear/quad , good for big vehicle

Compatible with AHD1080P,AHD720P,CVBS camera

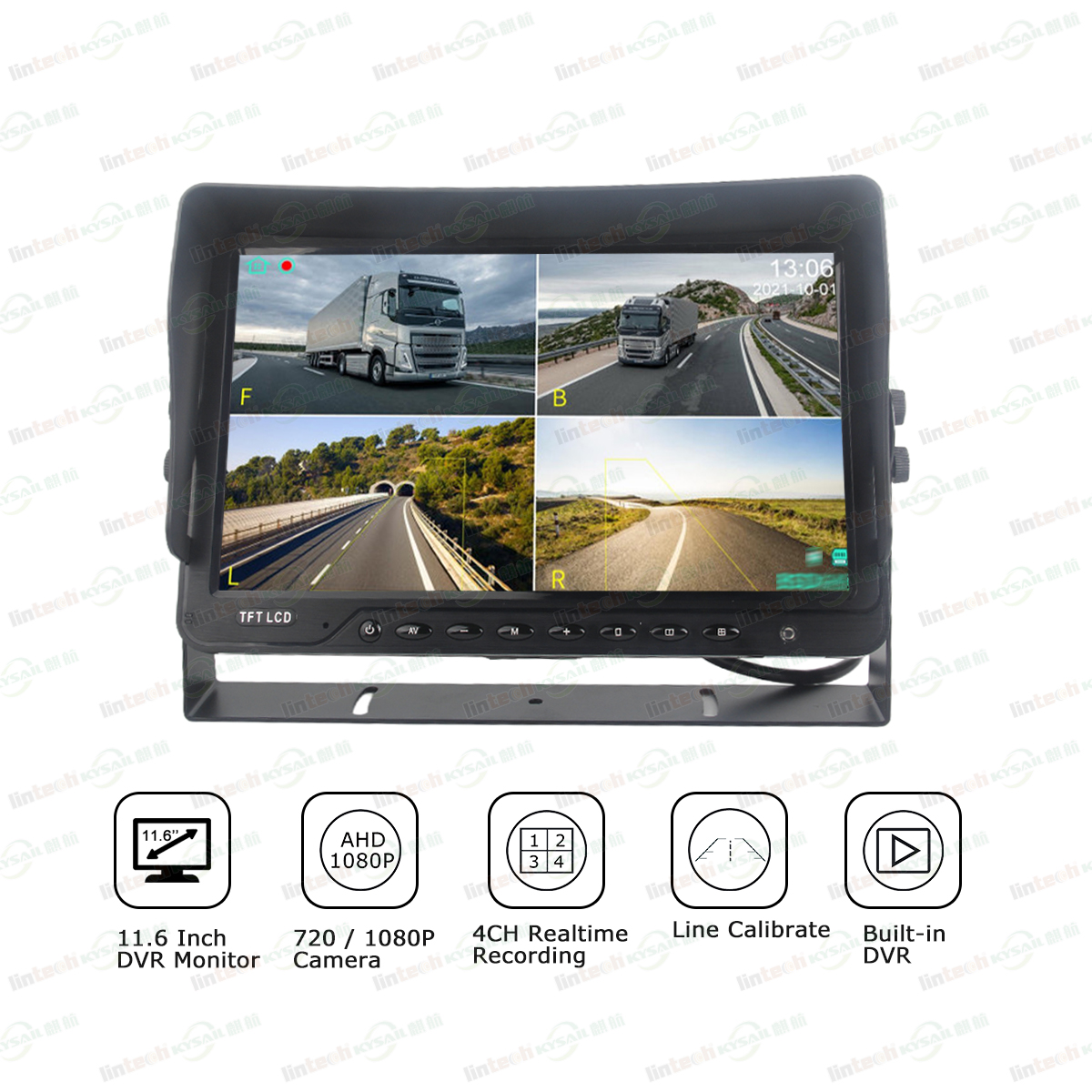

–Built in quad function ( support 4x1080P/4x720P AHD camera ,optioanl function)

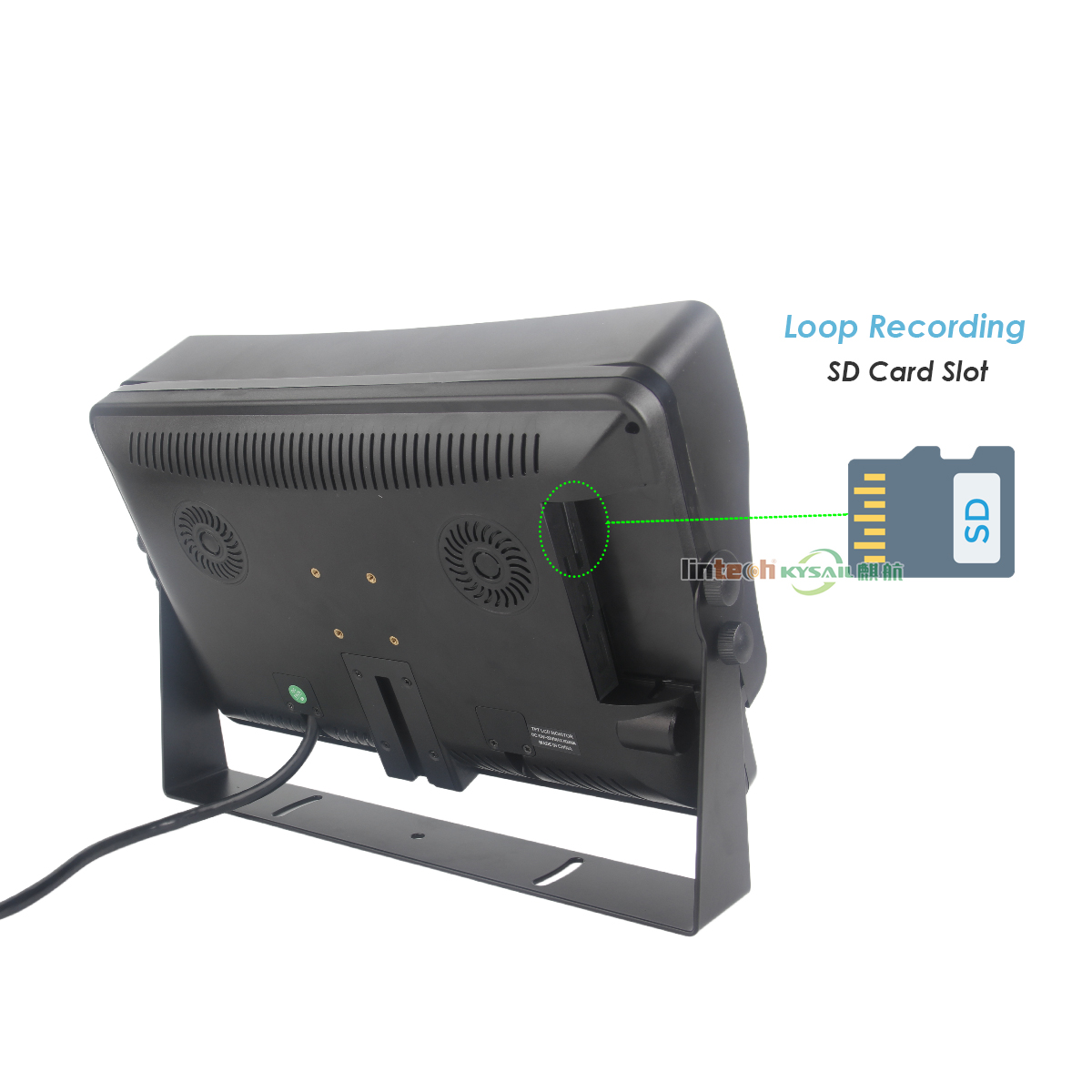

–DVR function ( optional function,built in micro SD card slot,record camera footage,optioanl function)

1080P 11.6 Inch AHD Quad DVR Monitor: Work for : Car, SUV, Corn Machine, Harvester, Engineering Vehicles, Agricultural Vehicles, Forklift, Escort Car, Sightseeing Car, Truck, RV, Bus.

Monitor Specification:

Product Name	11.6″ AHD DVR Monitor
Sun visor	Detachable
Resolution	1024*600px [IPS]
Backlight brightness	LED, 400cd/m2
Viewing angle range	Up and down—180°, left and right—180°

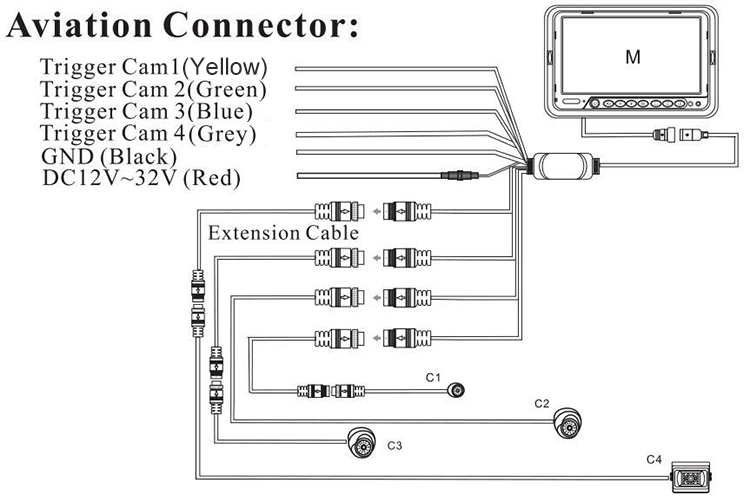

Connector	4PIN aviation head/RCA head [optional]
Video input format	CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC
Signal type	Support 720P/960P/1080P [compatible: CVBS/AHD/TVI]
Sound	Built-in speakers [optional], one audio input [V2]
4 way trigger sequence	V2>V1>V3>V4
Reversing setting	Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set
System	Compatible with PAL&NTSC system, automatic conversion
Adapt to the car	12V-36V power supply, power output DC12V
Protection function	high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A
Working temperature	`-20℃ to 70℃
Storage temperature	`-30℃ to 80℃
Appearance color	Black rubber paint, button blue light

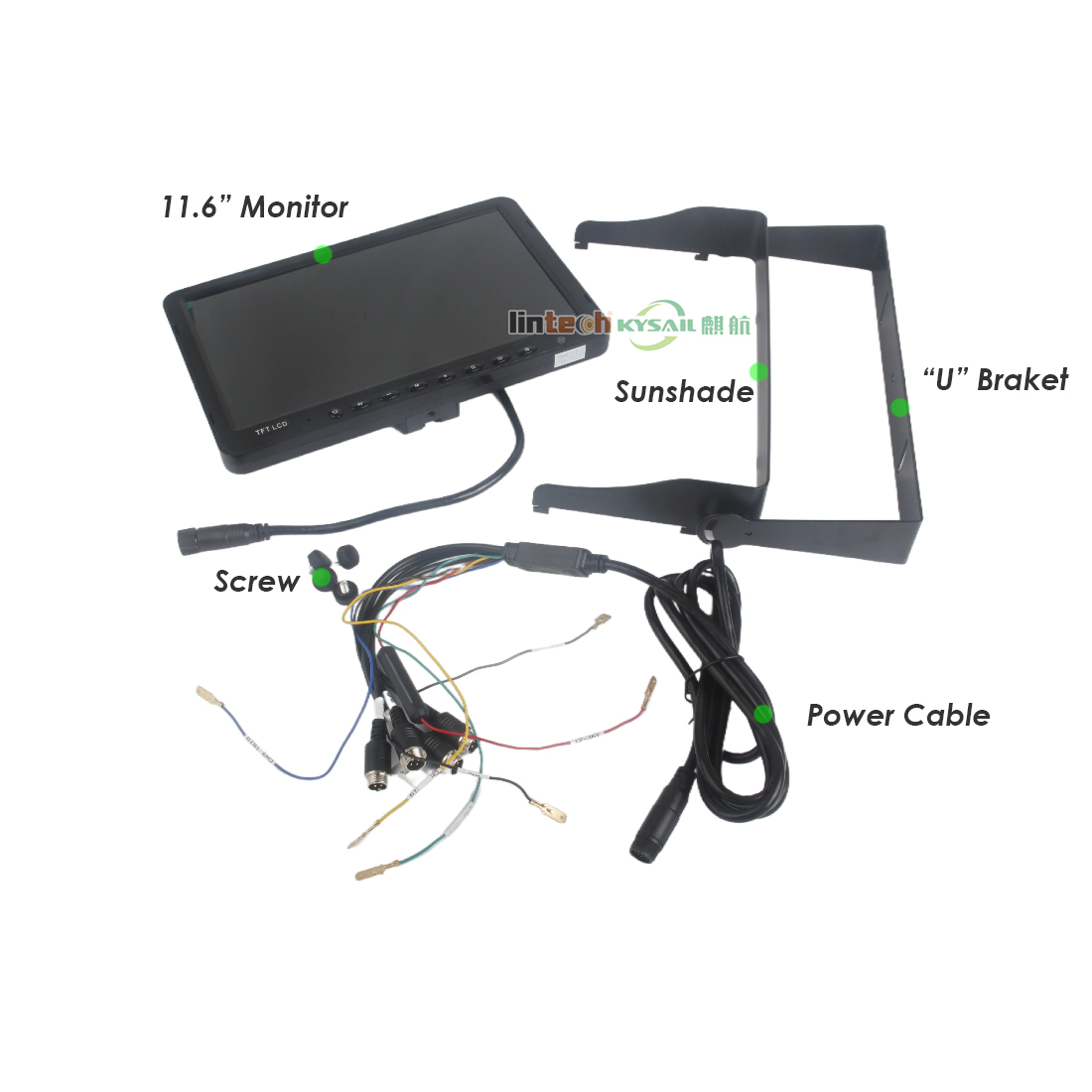

Bracket	Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional]
