24V 9inches 4Chs Wireless Truck Camera System
Model NO:LS-090F4
Extended Wireless: Camera offers 100-150 foot wireless range
Quality View Screen: Excellent video resolution and IR lights for great viewing at night
Multiple Uses: Works with trucks, equipment and vehicles of any type. This cam allows you to see what is behind or in front of you during reverse or at all times!
LCD Screen: Digital Wireless 9″ Quad Splitscreen Monitor 4CH DVR Reversing with built-in receiver
Simple to use: Easy Installation, 10-30 Minute Install
Heavy Duty: Weatherproof IR Camera with 120 degree ultra wide viewing
Safety and Security: Reduce Backup Accidents by 70% or more
Any View: See what is behind your vehicle at all times (or in front, depending upon where you install the camera)

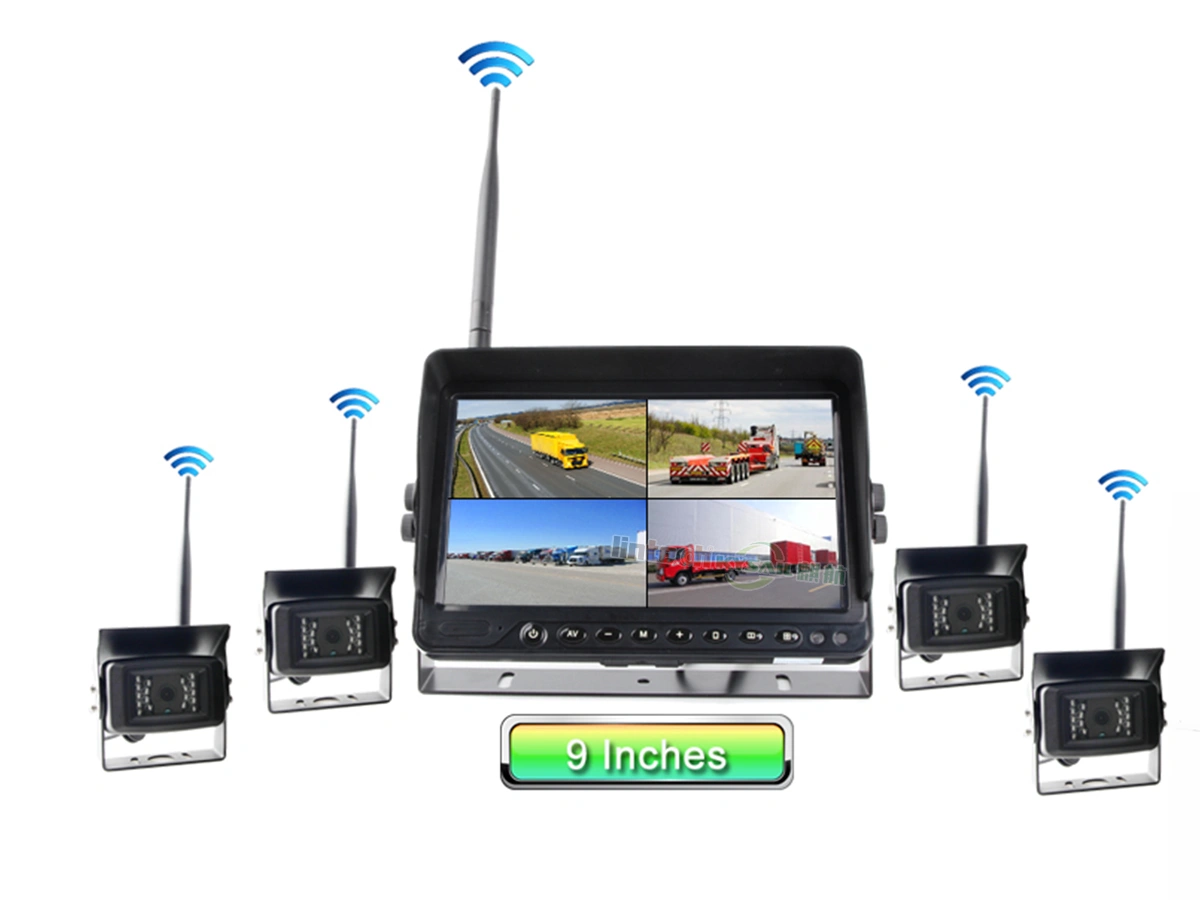

This 9″ wireless camera system support 1 or 4 channels wireless camera signal input, and display 4 split images at the same time. It can be single screen, split screen, quad screen or H-split screen
| 9 inches AHD Monitor Specifications: | |||||||||||
| (1)Screen size:9 inches | |||||||||||
| (2)Display Type: monitor (16: 9) display | |||||||||||
| (3)Monitor built in speaker | |||||||||||
| (4)With video record function Max support 1pc 128G SD card input | |||||||||||
| (5)Resolution: 1024 x R.G.B x 600 dots AHD | |||||||||||
| (6)Power supply: DC 12V~32V | |||||||||||
| (7)Power consumption: less than 7W | |||||||||||
| (8)Operating temperature: -10 to +65 C-degree | |||||||||||
| (9)Storage temperature: -20 to +65 C-degree | |||||||||||
| (10) OSD Menu for Setting up the camera image normal or mirror | |||||||||||
| (11) OSD Menu for Setting 4 Camera Views set up the priority of reverse camera | |||||||||||
| (12)Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately) | |||||||||||
| (13)Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, trailers, SUV, Utes, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more
Camera specification:
|
Our 9-inch Quadscreen Wireless Monitor Camera kit is also made for a long-range digital signal monitor with no interference and cameras communications for about 30 to 200 metres. Another guaranteed bestseller, this monitor for reversing camera kit can support up to 4 wireless channels, and camera view can show into different splits on screen. Suitable for 12V and 24V vehicles, our camera has a wide view angle of 120 degrees and 18 built-in IR LEDs for night vision. Featuring an impressive wireless connection, this monitor is so easy to install.
More details about 9′ lcd monitor wireless security camera systems for truck :
1. 9-Inch TFT LCD widescreen wireless monitor
–With high resolution image, full color display and low power consumption.
2. Two Wireless IR Night Vision Waterproof Rearview Back Up Reverse Cameras
–Auto Water-resistent Camera Lens, with 18 individual Infrared (IR) LED. Effective range up to 15m.
3. 4 Cameras 4 Video Inputs– Single image display / 4 quad image display can be switched.
4. Easy to install–Wireless parking assistance;
The monitor will start up automatically, and synchronously display the video from rearview camera when reversing the vehicle.
5. IP68 waterproof rate can cope with marine environment. Heavy duty Metal Cased Camera; It can last for longer without heating up, show the rearview video all time no problem.
