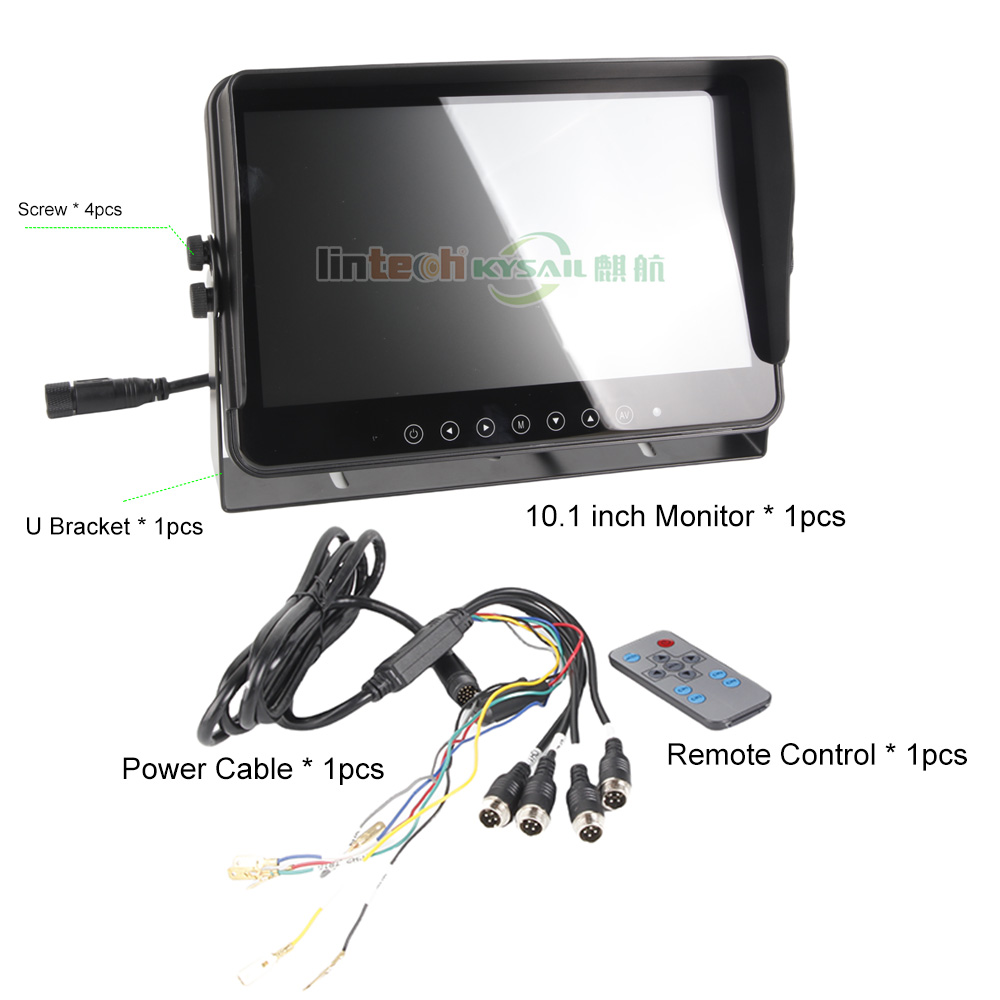

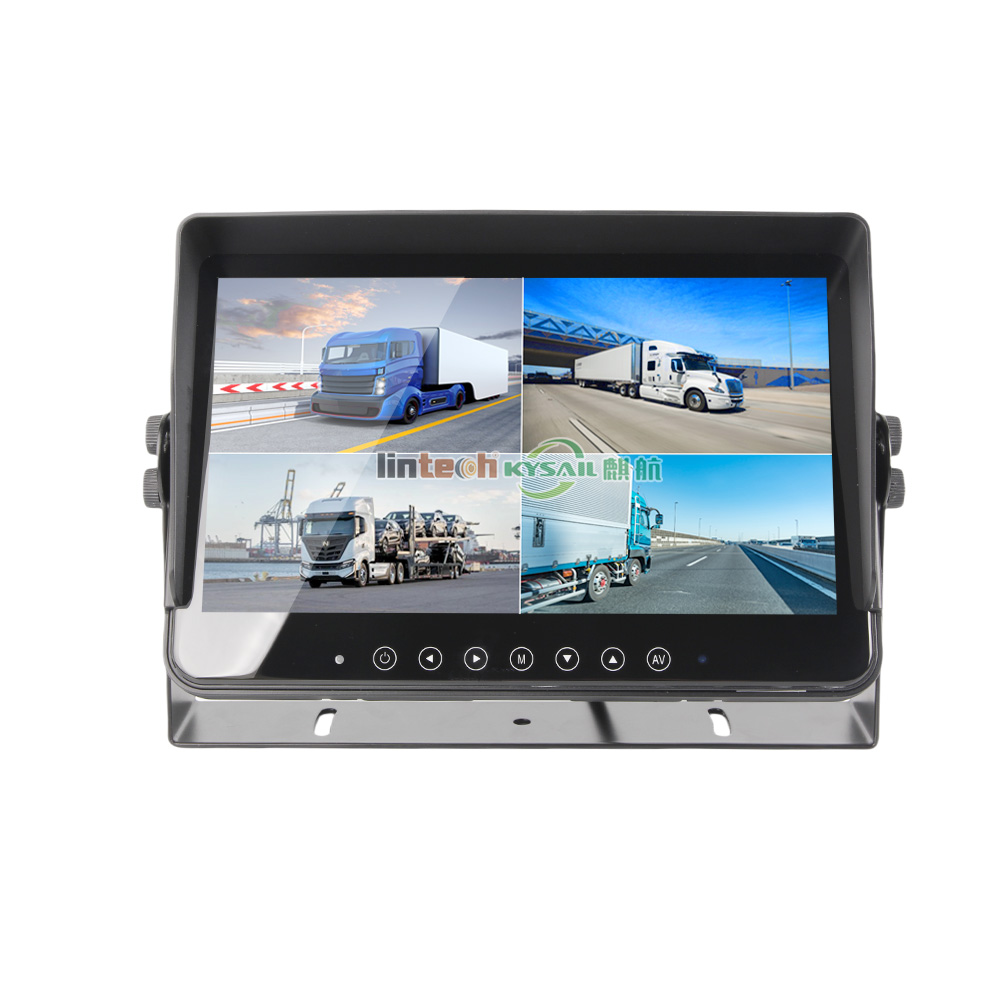

Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor
Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor - Image 2
Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor - Image 3
Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor - Image 4
Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor - Image 5
Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor - Image 6

Heavy Duty Tractor Bus Truck Waterproof IP69K 10.1 Inches Touch Button Split Screen AHD Waterproof Monitor

Model No:LM-100TB

  • 10” Waterproof Monitor with DVR AHD
  • High-definition screen: full-color high-definition AHD screen;
  • Various functions: support car monitoring and video playback, and support multiple languages;
  • Intelligent CPU: support 12-36V wide voltage;
  • Wide range of uses: suitable for various largevehicles, forklifts, harvesters, excavators, etc.
  • DVR video record function Max support 256Gb SD card input
Category:

Monitor Specification:

Product Name
10.1″ AHD Waterproof Monitor

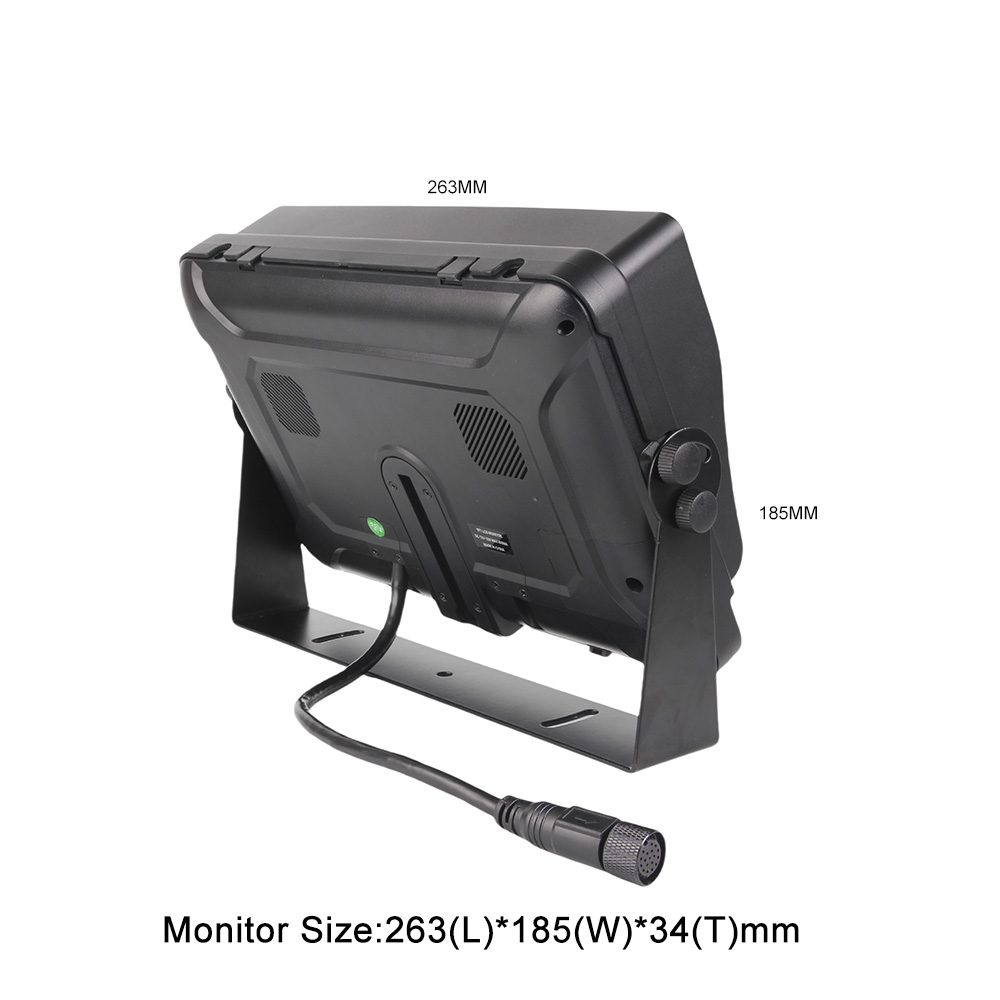

Body size
263*185*34mm (L*W*T)
Sun visor
Detachable
Resolution
1024*600px [IPS]
Backlight brightness
LED, 400cd/m2
Viewing angle range
Up and down—180°, left and right—180°
Connector
4PIN aviation head/RCA head [optional]
Video input format
CVBS / AHD720P/960P/ HD 25/30fps PAL/NTSC
Signal type
Support 720P/960P/1080P [compatible: CVBS/AHD/TVI]
Sound

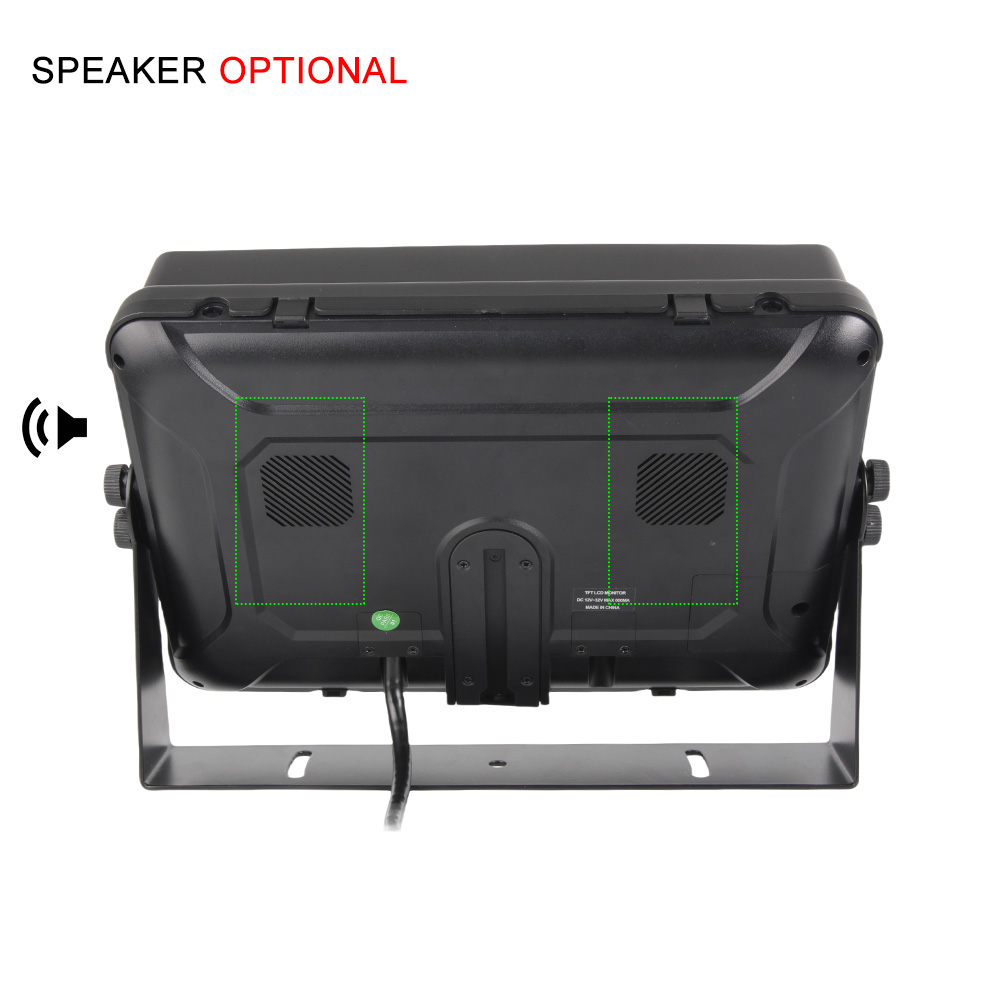

Built-in speakers [optional], one audio input [V2]

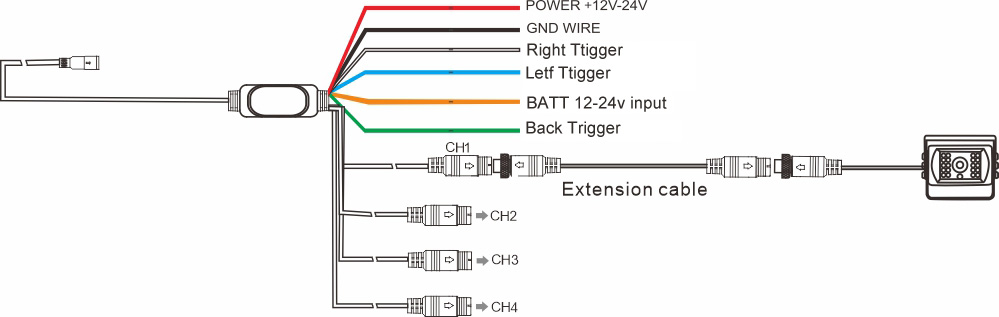

4 way trigger sequence
V2>V1>V3>V4
Reversing setting
Automatically switch to V2 when reversing, comes with reversing scale line, reversing delay can be set
System
Compatible with PAL&NTSC system, automatic conversion
Adapt to the car
12V-36V power supply, power output DC12V
Protection function
high and low voltage protection and reverse phase protection, anti-shock pulse 60V 3A
Working temperature
`-20℃ to 70℃
Storage temperature
`-30℃ to 80℃
Appearance color
Black rubber paint, button blue light
Bracket
Metal U-shaped bracket[standard configuration], detachable sun visor Other optional brackets: Butterfly/fan type/suction cup/universal/special bracket for some special vehicles [optional]
